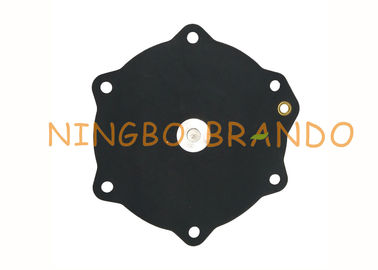

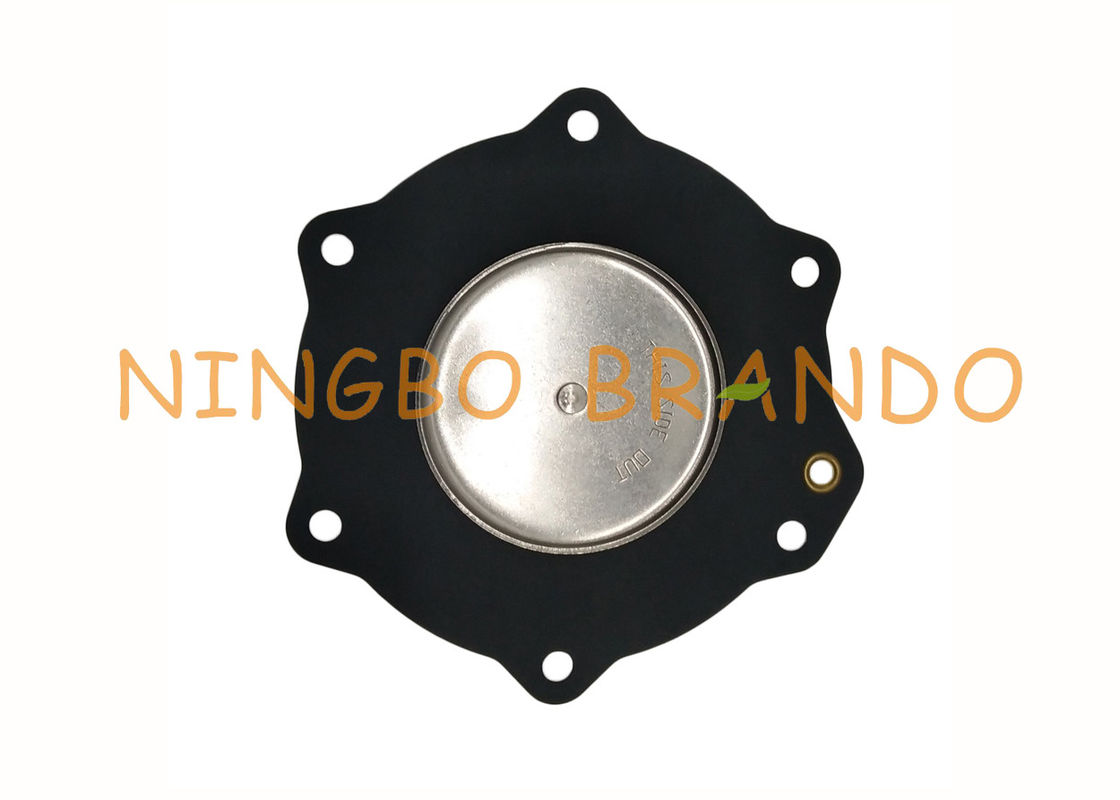

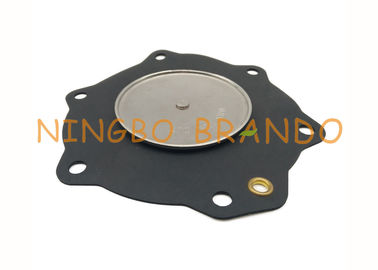

C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector

C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector

  • C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector
  • C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector
  • C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector
C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE, ISO
Model Number: A051
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 7 working days
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 100000PCS PER MONTH
Contact Now
Detailed Product Description
Material: NBR Suitable Valve Number: SCG353A050, SCG353A051
Mounting Hole Size: 8.5mm Diaphragm Outer Distance: 145mm
Center Distance: 145.5mm Sealing Gasket: Without
Spring: With Packaging: Individual Sealed
Color: Black Size: 2'' & 2-1/2''
High Light:

cylinder operated valve

,

cylinder solenoid valve

C113685 C113686 SCG353A050, SCG353A051 2'', 2-1/2'' '' NBR SCG Diaphragm Repair Kits For Industry Dust Collector



Product Description



Diaphragm Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power. 2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity. 3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength. 4. Facbric-reinforced diaphragms advantages: *No leakage *No Lubrication * No Breakaway Force * No Friction * Functionality Over Wide Pressure Ranges * High Strength * Low Cost * Simple Design * Versatility 5. EPDM, FKM all available.



Our valve & repair kits have a warranty against failure and defects, so you can ensure that your kits will work well or we will replace them.
When you buy from us, you get a product that is warranted against any defects and damages. We ensure that your replacement valve works well; if not, we will replace it.
We supply repair kits that will fit most dust collector valve manufacturers' valves. These alternative repair kits are In STOCK and can ship the same day before 4:00 PM PST. Our valve repair kits have a warranty against failure and defects, so you can ensure that your kits will work well or we will replace them.
Our high-temperature kits are made of Viton, and you can special order silicone for kits needing to reach temperatures above 500 F. The corrosive resistant kits are made of buna material and seat well during fly ash and other corrosive applications. The normal kits come in nylon and seat softer for a longer-lasting cycle life during cleaning.



Deference number:

ordering code fitted valve code valve port size material
C113443 G353A041, G353A042 3/4'', 1'' TPU/NBR
C113444 SCG353A043, SCG353A044, SCG353-052, SCG353-053 3/4'', 1''
C113825 G353A045 1 1/2'' NBR
C113826 G353A046 1 1/2''
C113827 SCG353A047, SCG353A065 1 1/2''
C113685 SCG353A050, SCG353A051 2'', 2-1/2''
C113686
C113928 SCEX353.060 3''
C123432 SCG353D060, G353.060
C123433
K096875 (K238864) 8353C033 3/4''
K200262 (K238866) G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053 1''
K276886 (K238870) G353A045, G353A046, SCG353A047, SCG353A065 1 1/2''
K276886B
K276887 FKM

tips:EPDM, FKM all available.



Dimension Diagram:

C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector 0

Detailed Images:



C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector 1



Youtube video of diaphragm videos:







Our Production:

C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector 2

Packing&shipping

C113685 C113686 SCG353A050 SCG353A051 2" 2-1/2" NBR SCG Diaphragm Repair Kits For Industry Dust Collector 3



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
