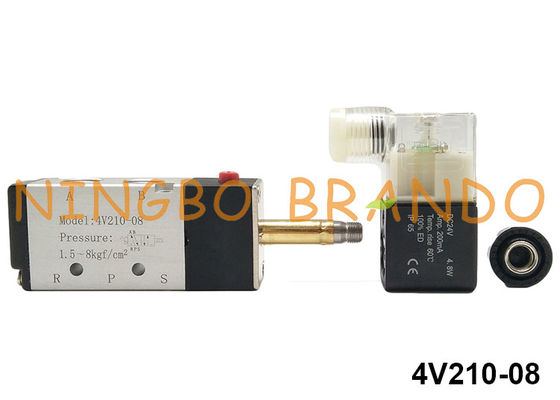

AirTAC Type 5/2 Way BSPT 1/4'' Pneumatic Air Valve Single Solenoid 24VDC 220VAC 4V210-08

AirTAC Type 5/2 Way BSPT 1/4'' Pneumatic Air Valve Single Solenoid 24VDC 220VAC 4V210-08

  • AirTAC Type 5/2 Way BSPT 1/4'' Pneumatic Air Valve Single Solenoid 24VDC 220VAC 4V210-08
  • AirTAC Type 5/2 Way BSPT 1/4'' Pneumatic Air Valve Single Solenoid 24VDC 220VAC 4V210-08
AirTAC Type 5/2 Way BSPT 1/4'' Pneumatic Air Valve Single Solenoid 24VDC 220VAC 4V210-08
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V210-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Applicable Industrie: Automation Fluid: Air (to Be Filtered By 40 μm Filter Element)
Port Size: In=Out=1/4'' Valve Type: Single Solenoid 5 Port 2 Position
Voltage: 220VAC, 110VAC, 24VDC, 12VDC Connector: DIN Electrical
Operating Pressure: 0.15 To 0.8MPa(21-114psi) Temperature: -20 To +70℃
Max. Frequency: 5 Cycle/sec Body Material: Aluminum Alloy
Action: Internal Pilot
High Light:

Airtac Solenoid Valve

,

5/2 Way Pneumatic Solenoid Valve

,

5 Way 2 Position Pneumatic Solenoid Valve

AirTAC Type 5/2 Way BSPT 1/4'' Pneumatic Air Valve Single Solenoid 24VDC 220VAC 4V210-08





4V210-08 Pneumatic air control valve. Meet a wide range of requirements, such as medical use, food processing, dusty environments, explosive environments etc. So pneumatic 5/2-way valves are available in uncountable design variations with regards to size, material, color, connection interfaces, etc.

Automation machine can increased throughput or productivity; increased consistency of output; reduced direct human labor costs and expenses; Can complete tasks where a high degree of accuracy is required.



4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;



Dimension of 4V210-08 Pneumatic Solenoid Valve:

Dimension of 4V130C-06 Pneumatic Solenoid Valve:



Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:

Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'' Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-20~70
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec





Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
