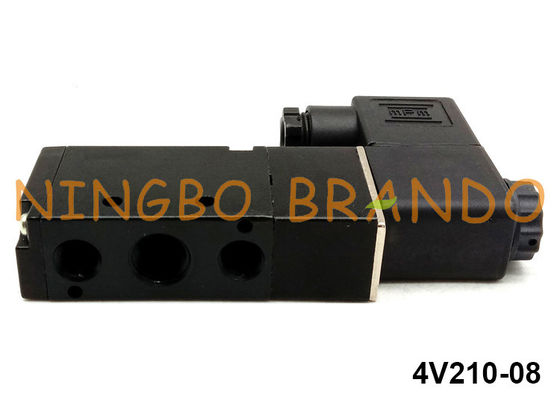

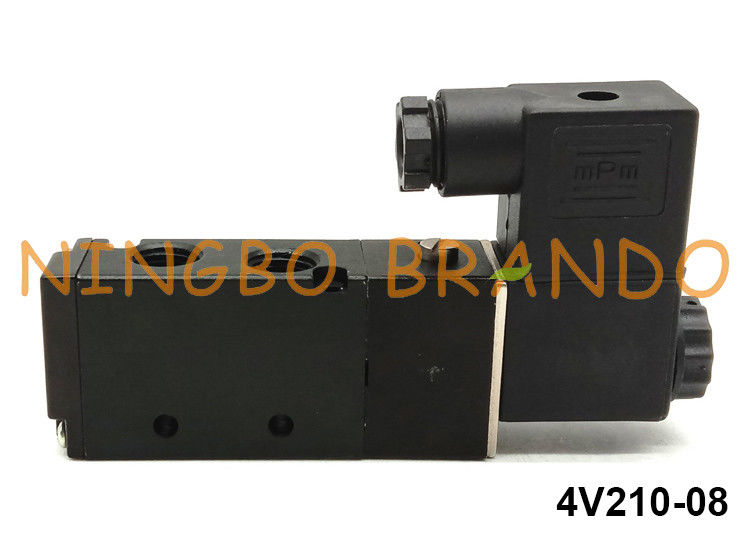

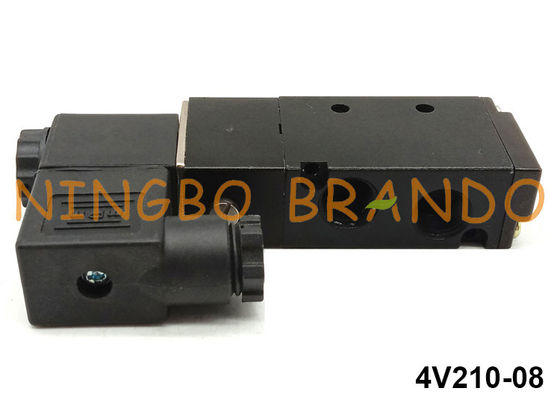

4V210-08 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position G1/4'' 24VDC

4V210-08 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position G1/4'' 24VDC

4V210-08 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position G1/4'' 24VDC
video
4V210-08 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position G1/4'' 24VDC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V210-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $3 to $ 8 per pc
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: Airtac Type Pneumatic Solenoid Valve Port Size: In=Out=1/4'', Exhaust=1/8''
Thread Type: Female (G, NPT, PT, BSP) Valve Type: Single Solenoid, 5 Way 2 Position
Connector Type: Flyng Leads, DIN Connector Voltages: 12VDC, 24VDC, 110VAC, 220VAC
Fluid: Air (to Be Filtered By 40 μ M Filter Element) Operation: Internal Pilot Or External Pilot
High Light:

Airtac Solenoid Valve

,

5/2 Way Pneumatic Solenoid Valve

,

5 Way 2 Position Pneumatic Solenoid Valve

4V210-08 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position G1/4'' 24VDC



This is a 4V210-08 Airtac type pneumatic solenoid valve, 1/4'' inlet and outlet pipe size, 1/8'' exhaust pipe size, female thread (G, NPT, PT, BSP) connection, 5 way 2 position, several standard voltage levels are optional (12V DC, 24V DC, 110V AC, 220V AC).



Features:
1. Pilot mode: internal pilot or external pilot.
2. Sliding column structure: good sealing and sensitive response.
3. The three-position solenoid valve has three central functions for you to choose from.
4. The dual-control solenoid valve has a memory function.
5. The inner hole adopts special processing technology, which has low friction and wear, low starting pressure and long service life.
6. It can form an integrated valve group with the base to save installation space.
7. Equipped with attached manual equipment to facilitate installation and commissioning.



Product Video of 4V210-08 Pneumatic Solenoid Valve:



Main dimension of 4V210-08 Pneumatic Solenoid Valve:

4V210-08 5/2 Way Pneumatic Solenoid Valve

Data of 4V Series Pneumatic Solenoid Valves:

Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'', Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-5~50
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec



More Pneumatic Solenoid Valves for you to choose:

4v1004v210-084v300a1

*4V100 Pneumatic Valves       *4V200 Pneumatic Valves    *4V300 Pneumatic Valves    *4V400 Pneumatic Valves

a1 a1 a3pneumatic fast fittings

*5/2 Way Pneumatic Valve *5/3 Way Pneumatic Valve       *2/2 Way Pneumatic Valve     *Pneumatic Fast Fitting
