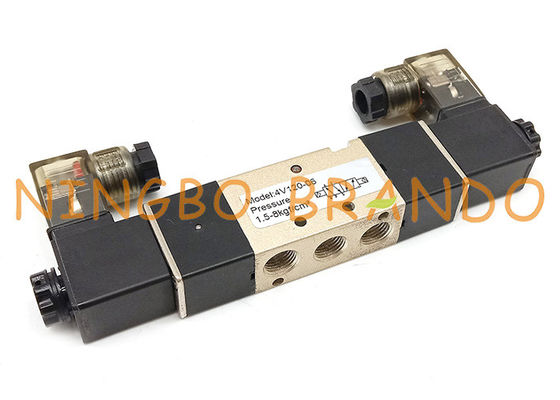

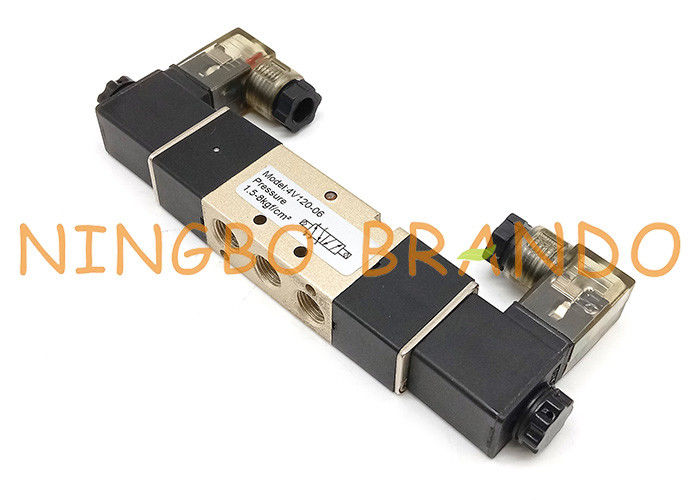

4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve

4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve

  • 4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve
  • 4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve
4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V120-06
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: In=Out=1/8'' Valve Type: Double Solenoid 5 Port 2 Position
Voltage: 220VAC 110VAC 24VDC 12VDC Connector: Terminal & Grommet
Working Pressure: 0.15 To 0.8MPa(21-114psi) Temperature: -20 To +70℃
Max. Frequency: 5 Cycle/sec Body Material: Aluminum Alloy
Fluid: Air (to Be Filtered By 40 μm Filter Element) Application: Automation
High Light:

4V120-06 Pneumatic Solenoid Valve

,

5/2 Way Pneumatic Solenoid Valve

,

AirTAC Type 4V120-06

4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve



The body-ported 5-port (4-way) spool valve has single-solenoid, spring return, or double-solenoid, 2-position operation. In addition, double solenoid valves have 3-position center closed or center exhaust operation. They can be used in individual valve applications or multiple valves can be field assembled on manifolds, simplifying piping connections.

Compact modular valves provide a flexible solution and allow mixing of valve sizes as needed with 3-way/2-position (2 spool valves), 5-way/2-position, and 5-way/3-position valves available. Single solenoid spring return or dual solenoids per valve and up to 16 valves (16 solenoids max) per manifold assembly is possible.



Two-position five-way solenoid valve
1. The piston rod must be flexible. Manual test, you should feel relaxed when pressing the piston rod. After releasing the hand, the piston
The rod can automatically return to the original position before being pressed under the action of the spring force. If it cannot be driven automatically, please remove the dust inside the valve body and the piston rod and treat it with high-quality lubricating oil to ensure the free movement of the piston rod.
2. Pilot valve The piston must be able to move easily and freely like the piston rod, and the treatment method is the same as above.
3. The air path for the pilot valve to work normally must be unobstructed.
The air path is unobstructed.
4. When the electromagnetic coil is energized under normal conditions, the closing part should be lifted and there will be a sound of pulling in. If abnormal check line
Whether the ring is burnt and whether there is debris inside the closing part, handle it by measuring and cleaning the debris.ete



Technical Data:

Model
4V110-06
4V120-06
4V130C-06
4V130E-06
4V130P-06
4V110-08
4V120-08
4V130C-08
4V130E-08
4V130P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=1/8''
In=Out=1/4''
Orifice Size
5.5 mm2 (Cv=0.31)
5.0 mm2 (Cv=0.28)
12.00 mm2 (Cv=0.67)
9.00 mm2 (Cv=0.50)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-20~70
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec






Dimension Diagram:

4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve 0

4V120(Grommet)

4V120-06 1/8 Inch Terminal Box 5/2 Way Pneumatic Solenoid Valve 1

4V120(Terminal)



Product Features:
1. High-strength aluminum alloy botton cover
2. One-time machining of valve lever by CNC, high precision
3. Valve body was machining by CNC, clean and beautifull
4. spacial processing of inner hole, small friction resistance and low starting pressure
5. High-precision pilot accessories, excitation time of only 0.05 seconds
6. imported seals, the life up to 10 millions of times
7. Aluminum alloy piston is not easy to damage
8. Embedded copper nut not easy to loose
9. with a manual device for installaton and testing
10. Copper coil has avariety of voltage available for selection
