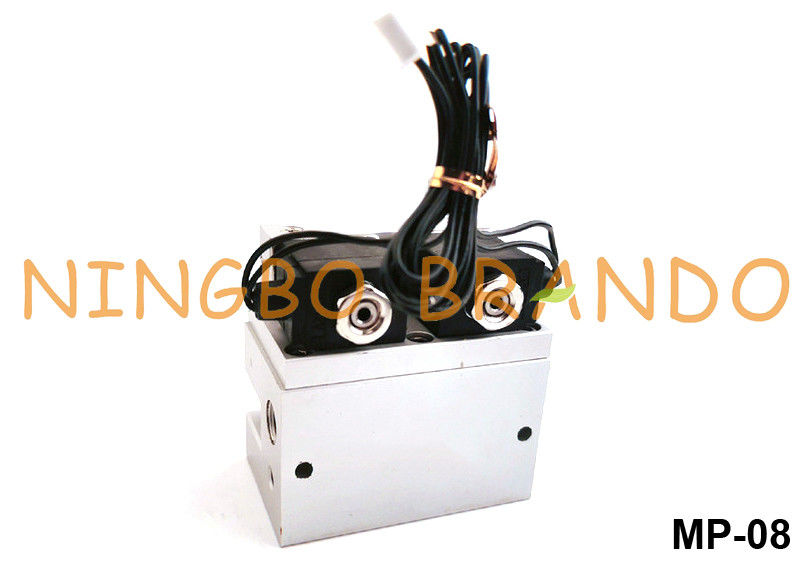

4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC

4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC

  • 4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC
4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: MP-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $3 to $ 5 per pc
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Working Medium: Air (to Be Filtered By 40 μm Filter Element) Valve Type: 4 Way 2 Position
Port Size: 1/4'' Working Pressure Range: 0.08 To 0.35 MPa
Body Material: Aluminum Alloy Seal Material: Silicone
Wiring Form: Lead Wire Or DIN43650 Connector Voltages: 12VDC, 24VDC
High Light:

Solenoid Valve For Oxygen Machine

,

4/2 Way Solenoid Valve For Oxygen Concentrator

,

Oxygen Solenoid Valves 12V

4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC


Applications: This solenoid valve is popularly used in the low pressure system, especially use for O2 Oxygen generator system of medical Industrial.



Product Features:



1. Adopt new processing, improved inner hole roughness.
2. Adopt specially formulated silicone to increase of service life.
3. To import German high standard special grease which provides film in order to reduce the friction.
4. Valve spool material use soft magnetic stainless steel from German,increase the magnetic properties and reduce the coil power to 30%.
5. Low pressure system valve for medical application.
6. Special fomular silicone for longer service life.



Technial Data of Oxygen Solenoid Valves:

Model MP-08
Valve Type 4 Way 2 Position
Working Medium Air (to be filtered by 40 μm filter element)
Action Internal Pilot Operated
Body Material Aluminum Alloy
Seal Material Silicone
Working Pressure Range 0.08 to 0.35 MPa
Working Temperature Range -5 to +80℃
Coil Insulation Class F Class, IP65
Coil Voltage 12VDC, 24VDC
Coil Power 3W, 1.5W


Dimension of Oxygen Solenoid Valve:

4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC 0 4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC 1
4/2 Way Medical Oxygen Concentrator Machine Solenoid Valve 12VDC 24VDC 2



Production Video of Pneumatic Solenoid Valve:


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
