Castel Type 1078/4 Solenoid Valve for Refrigeration Systems

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	1078/4

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Refrigeration Solenoid Valve	Ordering Number:	1078/4S, 1078/4A6, 1078/4A7
Port Size:	1/2''	Connection Type:	Solder (ODS)
Function:	2 Way Normally Closed	Voltage:	24VDC, 24VAC, 110VAC, 220VAC
Coil Option:	HM2, HM3
Highlight:	Castel 1078/4 valve , Castel refrigeration solenoid valve , Castel 1/2 inch solenoid valve

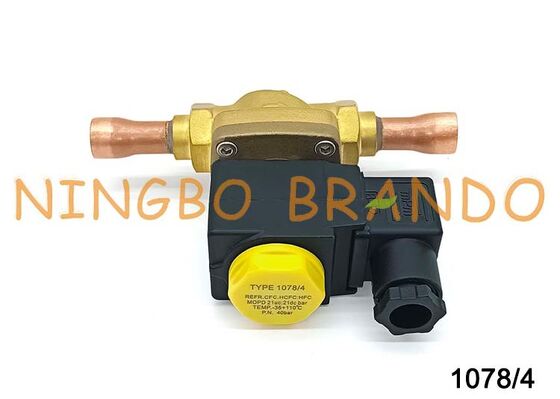

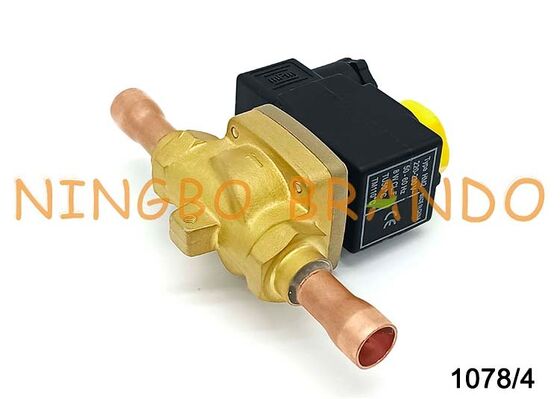

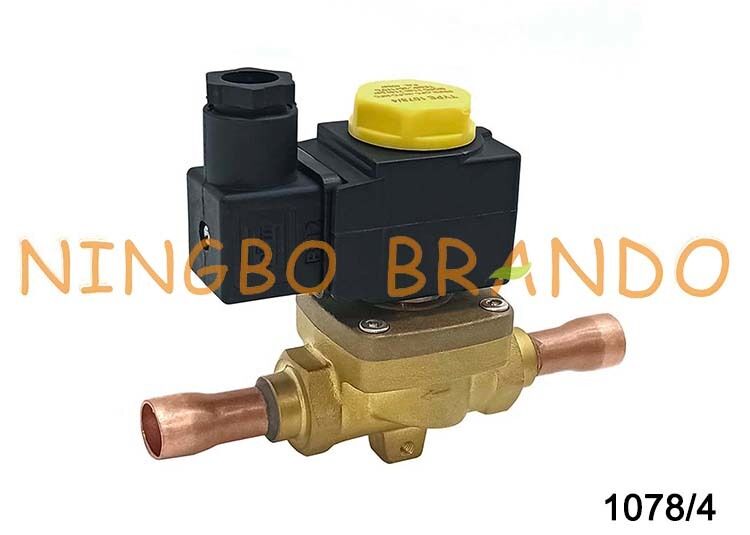

Castel Type 1078/4 Solenoid Valve for Refrigeration Systems

The Castel Type 1078/4 solenoid valve is a normally closed, diaphragm pilot-operated valve designed for refrigeration and air conditioning systems. It controls refrigerant flow in compatible refrigeration circuits and is suitable for a range of commercial and industrial cooling applications.

Featuring a 1/2-inch ODS solder connection, the Castel 1078/4 has a maximum allowable pressure of 45 bar and a specified operating temperature range of -35°C to +105°C. Its flow coefficient (Kv) is 2.2 m³/h.

The valve is available in different configurations, including versions supplied without a coil and versions with a coil. The appropriate coil voltage and model should be confirmed before ordering.

Dimension & Data of Castel Type Solenoid Valve:

castel solenoid valve

Operation	Model No	Connection		Dimension (mm)
Operation	Model No	Flare (SAE)	Solder (ODS)	H1	H2	H3	L1	L2	Q
Direct Acting	1020/2	1/4''		75	62.5	34	58	50	-
	1020/3	3/8''					65
	1028/2		1/4''				125
	1028/2E		1/4''				125
	1028/3		3/8''				125
	1028/M10		10mm				125
Diaphragm Pilot Operated	1064/3	3/8''		82	69.5	40	68	50	-
	1064/4	1/2''					72
	1068/3		3/8''				111
	1068/M10		10mm				111
	1068/M12		12mm				127
	1068/4		1/2''				127
	1070/4	1/2''		91	75	47	100		45
	1070/5	5/8''					106
	1078/M12		12mm				127
	1078/4		1/2''				127
	1078/5		5/8''				175
	1079/7		7/8''				190
	1090/5	5/8''		106	78	50	120		57
	1090/6	3/4''					124
	1098/5		5/8''				175
	1098/6		3/4''				175
	1098/7		7/8''				180
	1099/9		1 1/8''				216
	1078/9		1 1/8''	115	96	72	250		80
	1079/11		1 3/8''	115	96	72	292		80
Piston Pilot Operated	1034/3	3/8''		92.5	80	50.5	68	50	-
	1034/4	1/2''					72
	1038/3		3/8''				111
	1038/M10		10mm				111
	1038/M12		12mm				127
	1038/4		1/2''				127
	1040/4	1/2''		100.5	84.5	56.5	100		45
	1040/5	5/8''					106
	1048/M12		12mm				127
	1048/4		1/2''				127
	1048/5		5/8''				175
	1049/7		7/8''				190
	1050/5	5/8''		121	93	65	120		57
	1050/6	3/4''					124
	1058/5		5/8''				175
	1058/6		3/4''				175
	1058/7		7/8''				180
	1059/9		1 1/8''				216
	1098/9		1 1/8''	157	127	99	235		60
	1099/11		1 3/8''	157	127	99	277		60
	1078/11		1 3/8''	175	141	113	278		68
	1079/13		1 5/8''
	1079/M42		42mm
	1078/13		1 5/8''	190	153	125	280		68
	1078/M42		42mm
	1079/17		2 1/8''
