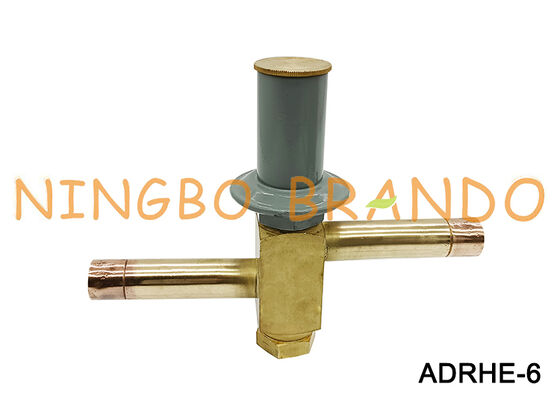

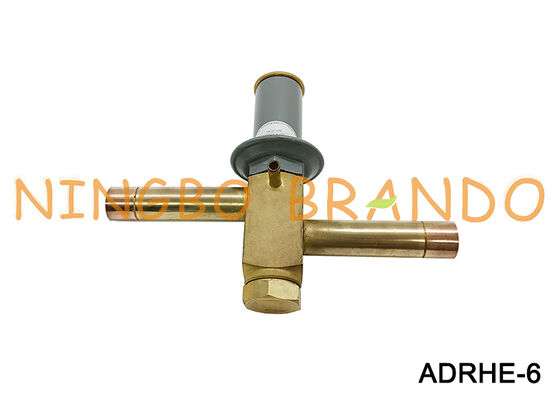

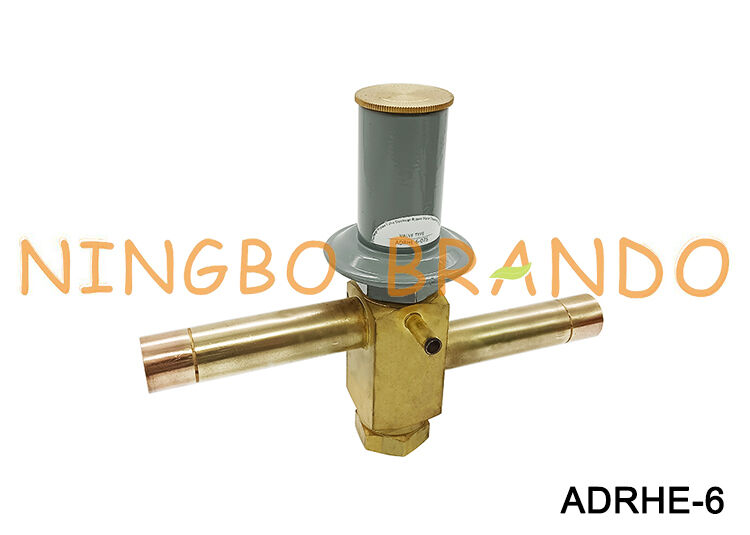

Sporlan Type ADRHE-6 Discharge Bypass Valve for Refrigeration and HVAC systems

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	ADRHE-6

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Name:	Hot Gas Bypass Valve	External Equalizer Connection:	1/4'' (ODF)
Connection Size:	5/8'', 7/8'', 1-1/8'' (ODF)	Equalization:	Externally Equalized
Refrigerant:	R134a, R401A, R22, R402A, R404A, R407C, R507	Adjustment Range:	0/30, 0/80 (psig)
Voltage:	24VDC, 24VAC, 110VAC, 220VAC
Highlight:	Sporlan ADRHE-6 discharge bypass valve , Sporlan discharge bypass valve , Refrigeration bypass valve

Sporlan Type ADRHE-6 Discharge Bypass Valve for Refrigeration and HVAC systems

The Sporlan type ADRHE-6 Discharge Bypass Valve is designed for refrigeration and HVAC systems requiring hot gas bypass control under low-load operating conditions. It helps maintain minimum evaporator pressure by regulating the flow of hot discharge gas into the low-pressure side of the system.

Suitable for commercial refrigeration and air-conditioning applications, the Sporlan type ADRHE-6 supports stable system operation when cooling demand decreases. It is an important component for refrigeration technicians and HVAC professionals seeking reliable pressure regulation.

Technical Data:

Model No	Valve Type	Equalized Size	Inlet & Outlet Size	Adjustment Range (psig)	Standard Setting (psig)
ADRSE-2	Externally Equalized	1/4'' ODF	3/8'' ODF	0 to 30 0 to 80	20 60
			1/2'' ODF
			5/8'' ODF
ADRPE-3			1/2'' ODF
			5/8'' ODF
ADRHE-6			5/8'' ODF
			7/8'' ODF
			1-1/8'' ODF

Cooling Capacity (KW):

R22

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	2.04	1.86	-	12.3	-	21.1	-	32.2
-5℃	1.55	2.25	1.9	-	12.5	-	22	-	34.8
-15℃	2.22	2.11	1.72	13.7	12.9	26	23.2	48.9	38.3
-25℃	2.08	1.76	1.55	13.2	12.8	26.2	23.4	49.6	38.7

R134a

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	1.41	1.51	1.19	-	9.4	-	17.4	-	32.9
-5℃	1.44	1.37	1.12	9.15	8.59	17.4	15.5	32.9	25.5
-15℃	1.34	1.09	0.98	8.66	-	17.2	-	33.1	-

R404A

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	-	1.94	-	-	-	-	-	-
-5℃	-	2.36	2.11	-	13.7	-	23.6	-	36.6
-15℃	2.35	2.5	1.97	-	14.1	-	25.2	-	41.2
-25℃	2.39	2.15	1.79	14.7	14.1	28.4	25.6	53.8	42.6

R407C

Min Evaporator Temperature	Adjustment Range
	ADRIE-1-1/4			ADRSE-2		ADRPE-3		ADRHE-6
	0/55psig	0/75psig	0/100psig	0/30psig	0/80psig	0/30psig	0/80psig	0/30psig	0/80psig
	0/3.79bar	0/5.17bar	0/6.9bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar	0/2.07bar	0/5.52bar
5℃	-	2.74	2.29	-	14.9	-	26.4	-	42.6
-5℃	2.15	2.74	2.22	-	14.9	-	26.4	-	42.6
-15℃	2.6	2.39	1.97	15.9	15.2	30.4	27.5	57.3	45.7
-25℃	2.39	1.97	1.76	15.2	14.9	30.4	27.1	58	45.4

Main Dimension:

Model No	Inlet & Outlet	A	B	C	D	E	F
ADRSE-2	3/8'' ODF	164	64	50	37	37	61
	1/2'' ODF				35	35
	5/8'' ODF				38	38
ADRPE-3	1/2'' ODF	178	72	53	43	41	61
	5/8'' ODF				55	55
ADRHE-6	5/8'' ODF	180	73	48	117	117	70
	7/8'' ODF
	1-1/8'' ODF
