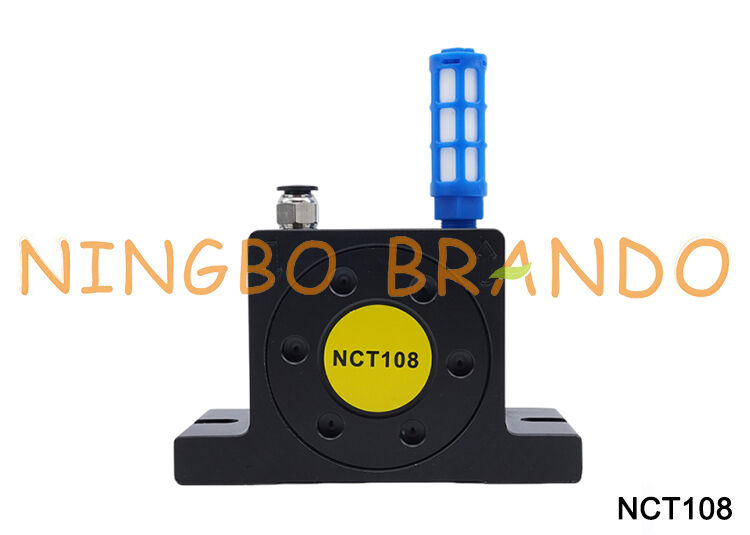

Name: NCT 108 Netter Type Pneumatic Air Vibrator for Industrial Bin Hopper
Brand: Ningbo Brando Hardware Co., Ltd
SKU: NCT 108
Price: 49.10 USD
Availability: InStock

Home Products

NCT 108 Netter Type Pneumatic Air Vibrator for Industrial Bin Hopper

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	NCT 108

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:

Pneumatic Vibrator

Frequency:

8280 To 11720 VPM

Force:

4067 To 8152 N

Working Pressure:

2 To 6 Bar

Highlight:

NCT 108 Pneumatic Vibrator

NCT 108 Pneumatic Turbine Vibrator

Netter NCT 108

NCT 108 Pneumatic Vibrator

NCT series are pneumatic turbine vibrators, including NCT1, NCT2, NCT3, NCT4, NCT5, NCT10, NCT15, NCT29, NCT55, NCT108, NCT126, NCT250 models. which generate circular vibration through an eccentrically mounted turbine with integrated unbalance weights. The frequency and centrifugal force are continuously adjustable via the operating pressure, enabling flexible tuning for varied applications. These vibrators are ideal for emptying bunkers and silos, driving chutes and sieves, and mechanically stimulating processes. They are distinguished by high operational frequencies, low air consumption and low-maintenance design.

Technical Data:

NCT 108 Netter Type Pneumatic Air Vibrator for Industrial Bin Hopper

Model No	Frequency (time/min)			Centrifugal Force (N)			Air Consumption (l/min)
Model No	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar	2 bar ~ 6 bar
NCT1	29100	38820	45460	288	513	703	19 ~ 45
NCT2	21360	29520	34000	311	594	787	20 ~ 48
NCT3	26940	34900	39700	637	1069	1383	28 ~ 75
NCT4	21740	26920	30380	597	915	1165	31 ~ 73
NCT5	22740	27840	30940	1389	2082	2572	93 ~ 284
NCT10	16940	20680	22980	1511	2251	2780	92 ~ 287
NCT15	15740	20060	22700	2174	3530	4521	215 ~ 461
NCT29	11920	14760	16740	2197	3369	4334	216 ~ 461
NCT55	11000	13980	15760	3618	5845	7426	386 ~ 918
NCT108	8280	10420	11720	4067	6441	8152	379 ~ 911
NCT126	6060	8280	9400	2591	4760	6124	653 ~ 1707
NCT250	5500	7020	7800	4152	6761	8348	655 ~ 1710

Main Dimension:

NCT 108 Netter Type Pneumatic Air Vibrator for Industrial Bin Hopper

Model NO	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	H (mm)	Thread
NCT1	40	28	70	56	6.5	30	5.5	G1/8''
NCT2	40	28	70	56	6.5	30	5.5	G1/8''
NCT3	50	33	86	68	7	40	7	G1/8''
NCT4	50	33	86	68	7	40	7	G1/8''
NCT5	65	42	113	90	9	50	9	G1/4''
NCT10	65	42	113	90	9	50	9	G1/4''
NCT15	80	56	128	104	9	60	10	G1/4''
NCT29	80	56	128	104	9	60	10	G1/4''
NCT55	100	73	160	130	11	80	12	G3/8''
NCT108	100	73	160	130	11	80	12	G3/8''
NCT126	120	83	194	152	17	100	13	G3/8''
NCT250	120	83	194	152	17	100	13	G3/8''
