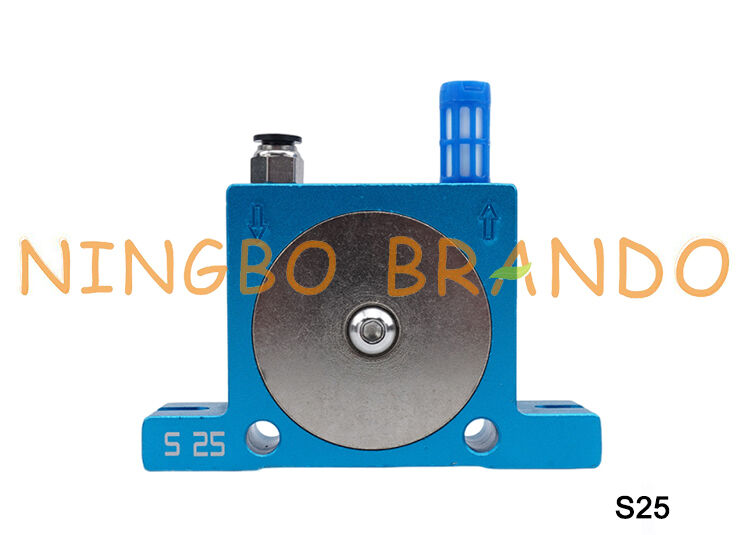

Name: S25 OLI Type Pneumatic Ball Vibrator for Powder Cement Bin Hopper
Brand: Ningbo Brando Hardware Co., Ltd
SKU: S25
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Vibrator

S25 OLI Type Pneumatic Ball Vibrator for Powder Cement Bin Hopper

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	S25

Payment & Shipping Terms:

Minimum Order Quantity:	32pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:

Pneumatic Vibrator

Frequency:

9210 To 14100 VPM

Force:

925 To 2100 N

Working Pressure:

2 To 6 Bar

Highlight:

S25 Pneumatic Vibrator

S25 Pneumatic Ball Vibrator

OLI S25

S32 Pneumatic Vibrator

S series are pneumatic ball vibrators, including S8, S10, S13, S16, S20, S25, S30, S36 models. They generate high frequency vibration thanks to a steel ball that rotates inside two housings made ofhardened and ground steel, The S series requires lubricated air at a working pressure from 2 to 6 bar (29 ~ 87 PSI). At maximum speed, the noise does not exceed 90 dB (A).

Technical Data:

S25 OLI Type Pneumatic Ball Vibrator for Powder Cement Bin Hopper

Model No	Frequency (time/min)			Centrifugal Force (N)			Air Consumption (l/min)
Model No	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar	2 bar ~ 6 bar
S8	25510	31100	35100	132	249	355	85 ~ 190
S10	22510	28100	34100	245	468	715	95 ~ 210
S13	15100	18510	22510	320	560	875	95 ~ 230
S16	13100	17100	19510	455	810	1110	125 ~ 285
S20	10510	14510	16510	715	1200	1750	135 ~ 335
S25	9210	12210	14100	925	1580	2100	165 ~ 420
S30	7500	9350	11000	2000	3150	4000	270 ~ 680
S36	7310	9100	10100	2050	3135	4100	265 ~ 678

Main Dimension:

S25 OLI Type Pneumatic Ball Vibrator for Powder Cement Bin Hopper

Model NO	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	In=Out
S8	50	86	68	12	20	7	G1/8''
S10	50	86	68	12	20	7	G1/8''
S13	65	113	90	16	27	9	G1/4''
S16	65	113	90	16	27	9	G1/4''
S20	80	128	104	16	38	9	G1/4''
S25	80	128	104	16	38	9	G1/4''
S30	100	160	130	20	50	11	G3/8''
S36	100	160	130	20	50	11	G3/8''
