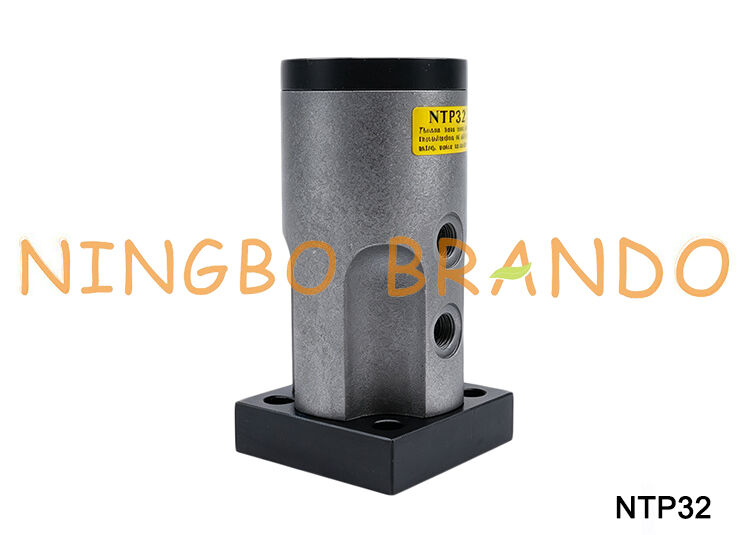

Name: NTP 32 B+C Netter Vibration Type Pneumatic Air Vibrator for Bin Hopper
Brand: Ningbo Brando Hardware Co., Ltd
SKU: NTP 32
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Vibrator

NTP 32 B+C Netter Vibration Type Pneumatic Air Vibrator for Bin Hopper

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	NTP 32

Payment & Shipping Terms:

Minimum Order Quantity:	15pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:

Pneumatic Vibrator

Frequency:

1824 To 5040 VPM

Force:

197 To 926 N

Working Pressure:

2 To 6 Bar

Highlight:

Pneumatic Vibrator NTP 32

Linear Type Pneumatic Vibrator

Netter Vibration NTP 32

NTP 32 Pneumatic Vibrator

NTP Series are pneumatic linear vibrators, including NTP 48, NTP 32, NTP 25, NTP 18 models, which are especially suitable for knocking off material adhering to container walls in funnels, containers, silos and hoppers. Special features of NTP vibrators are: impacts like a rubber hammer or vibration with high peak acceleration. The linear vibration is produced by a freely vibrating differential pressure piston. In a standard application, the piston knocks against an elastomer impact plate and works like a rubber hammer. When used without an impact plate, the piston works against an air cushion and reduces noise. The frequency can be adjusted by varying the pressure of the air supply and the amplitude by throttling the exhaust.

Technical Data:

Model	Nominal Frequency (min-1)			Centrifugal Force (N)			Air Consumption (l/min)	Sound Level (dBA)
Model	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar	2 bar to 6 bar	2 bar to 6 bar
NTP 18 B+C	6600	9420	11160	147	300	421	20 to 64	75 to 87
NTP 18 B	3828	4680	5490	69	118	183	12 to 67	65 to 77
NTP 25 B+C	5848	7000	8784	269	438	830	33 to 108	68 to 82
NTP 25 B	2645	3159	3602	190	341	487	23 to 92	64 to 73
NTP 32 B+C	2959	4080	5040	289	607	926	50 to 198	71 to 86
NTP 32 B	1824	2221	2614	197	369	543	37 to 143	64 to 77
NTP 48 B+C	2618	3456	4320	782	1305	2039	96 to 336	78 to 90
NTP 48 B	1328	1603	1963	456	872	1403	67 to 295	65 to 80

Main Dimension:

Model	Port	A	B	C	D	E	F	H	L
NTP 18	M5	60.2	53	43	5.2	21.5	33.5	10.5	30
NTP 25	G1/8''	90	60	46	6.5	36	42.5	15	51
NTP 32	G1/4''	140	75	51	11	48	59	20	70
NTP 48	G3/8''	194	100	78	13	60	73	25	95
