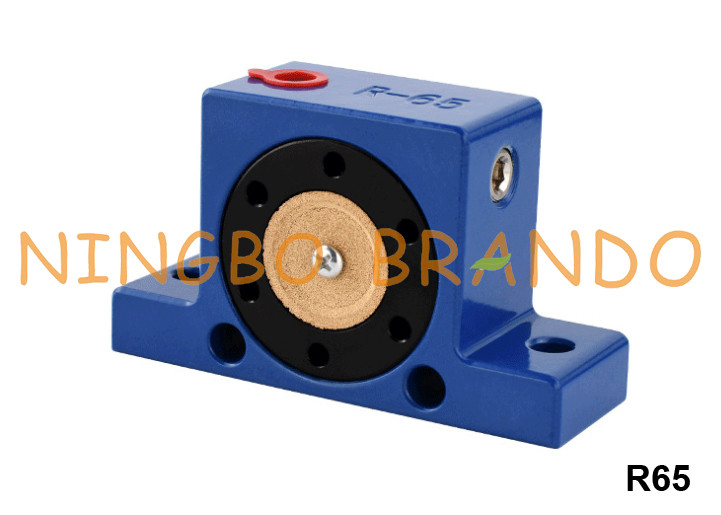

R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin

R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin

  • R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin
R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin
Product Details:
Place of Origin: China, Ningbo
Brand Name: BRANDO
Certification: CE, ISO
Model Number: R65
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Roller Vibrator Rated Frequency: 10000 To 36000 RPM
Centrifugal Force: 1070 To 12500 N Working Temperature: Up To 150℃
Length: 113mm Width: 37mm
Height: 65mm Port Size: 1/4''
High Light:

Pneumatic Vibrator R65

,

Findeva Pneumatic Roller Vibrator

,

Findeva R-65

R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin



R series Pneumatic Roller Vibrator design is simple, but still gives a strong centrifugal force. Body made trom an extruded aluminum, refined steel roll in which the scrolling. This steel roller by the two special high--impact plastic coer positioning. The houseing has two horizontal and two vertical holes, making in stallation easy. Air into two mutually perpendicular intake of an entry. The two air intakes for the standard pipe thread. Is not a block intake, supplied with a pipe plug.



R series pneumatic roller vibrator of high frequency vibrator is suitable for the vibration of liquid powder, filling and handling purposes. Because it is a gas transmission, so the vibration frequency to adjust the pressure to achieve control. Mainly used for: Hopper discharge is phlogistic, stir - powder material conveying powder, the mold plastic and compaction of concrete.



Main Dimension of R Series Pneumatic Roller Vibrators:

R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin 0

Model
A
(mm)
Width
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(Thread)
R-50
50
29
86
68
12
7
40
G1/8''
R-65
65
37
113
90
16
9
50
G1/4''
R-80
80
43
128
104
16
9
60
G1/4''
R-100
100
52
160
130
20
11
80
G3/8''
R-120
120
77
194
152
24
17
-
G3/8''


Technical Data of R Series Pneumatic Roller Vibrators:

Model
Vibrations
(x1000 RPM)
Centrifugal Force
(N)
Air Consumption
(l/min)
2 bar
4 bar
6 bar
2 bar
4 bar
6 bar
2 bar
4 bar
6 bar
R-50
25.0
35.0
36.0
1070
2920
4220
100
145
195
R-65
19.0
21.0
26.0
2730
4830
6120
200
300
400
R-80
15.5
18.5
19.0
3000
6090
7450
290
430
570
R-100
11.0
14.0
16.0
3750
6750
8900
370
550
730
R-120
10.0
11.5
12.5
8000
10000
12500
500
730
970


Construction of R Series Pneumatic Roller Vibrators:

R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin 1



More Pneumatic Vibrators for your to choose:

R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin 2 R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin 3 R65 Findeva Type K Series Pneumatic Roller Vibrator For Industrial Bin 4

GT Series

Pneumatic Turbine Vibrators

K Series

Pneumatic Ball Vibrators

R Series

Pneumatic Roller Vibrator



More Accessories for Pneumatic Vibratos:

Findeva Type GT Series Pneumatic Golden Turbine Vibrator For Bin 5 Findeva Type GT Series Pneumatic Golden Turbine Vibrator For Bin 6
Pneumatic Fitting Pneumatic Silencer
