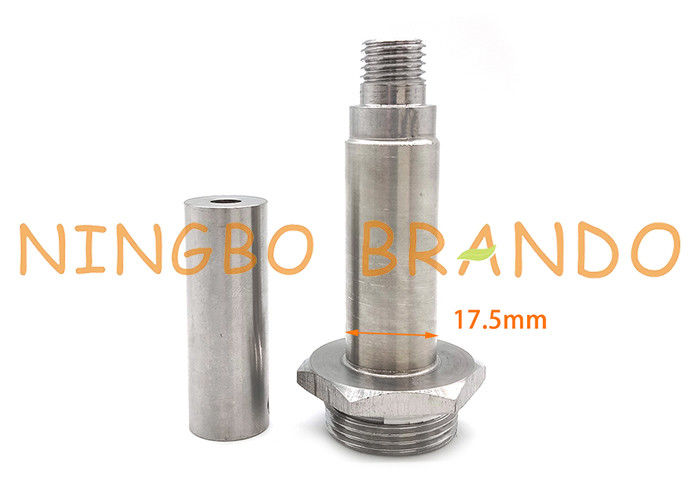

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature
video
M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC217549005
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Plunger Tube OD: φ17mm Function: 2 Way, Normally Closed
Seat Type: M26 Thread Plunger Tube Material: Stainless Steel 304
Shading Ring Material: Copper Voltage: AC, DC All Available
High Light:

M26 Thread Armature

,

PTFE Seal Armature

,

Flow Control Valve Stem

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature



Solenoid Valve Armature Assembly Categories:



The armature assembly can usually be categorized according to the number of interface positions, switching functions and connection.



1. Port / positions: 2/2 way or 3/2 way (The first figure shows the number of ports, the second shows the number of positions)
2. Function: Normally closed (NC), or normally open (NO)
3. Connection: Thread or flange



Features of Armature Assembly:



The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection



Main dimension of Solenoid Valve Armature Assembly:

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature 0

Details of Solenoid Valve Armature Assembly:

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature 1

  2 Way Normally Close               Thread Seat

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature 2

               Plunger Shape                           Orifice



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC217549005
Guide Tube Outer Diameter
13.2mm
Installation Height for Coil Assembling
34.4mm
Plunger Seal for Orifice Diameter
7.7mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
M26 Thread
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing



Brando Factory Production of Solenoid Valve Armature Assembly:

M26 Thread Stainless Steel Fluid Control Valve PTFE Seal Armature 3



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



Product Features of Solenoid Valve Armature Assembly:


1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.



4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



5 Shading ring:
Cooper and silver material available.



6. Washer and retaining nut provided if has demands.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
