Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: Q911
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Structure: Ball, Butterfly Power: Electric
Pipe Connection: Thread, Flange, Tri Clamp, Wafer, Union Body Material: Cast Iron, Cast Steel, SS304, SS316, UPVC, CPVC
Seal Material: Rubber, PTFE, TFM, Stainless Steel Working Medium: Neutral Gas, Air
Port Size: DN10 To DN200 Air Pressure: 0.4 To 0.8 MPa
High Light:

Electric Actuator Ball Valve


Electric Actuator Butterfly Valve


Electric Actuated Control Valves

Electric Actuator Valve

Electric Actuator Ball Valve:

An electric actuated ball valve can be broken down into two main components. The electric actuator (servo motor) and the ball valve. For a 2-way ball valve, the electric motor can turn the ball 90 degrees to be either fully open or fully closed. For a 3-way valve, the electric actuator can turn the ball between different circuits depending if it is an L-port or T-port ball valve. They are mounted together typically with a standard flange adhereing to ISO 5211. This allows both the electric actuator or ball valve to be swapped out with another one using the same flange size. There are various housings and sizes of electric ball valves to allow you to find the right one for your application.


Electric Actuator Butterfly Valve:

Electric actuator butterfly valves, which are used to control the flow of a media remotely. They can have either a lug or wafer connection style. The actuator either opens or closes the valve with an electrical current, but doesn’t require energy to stay in that state. The butterfly valve has a disc that rotates with the actuator to open or close the butterfly valve. The butterfly valve design allows for good sealing properties, durability, and reliability for your application. Electrical actuators are easily installed and wired into an existing system. There are various housings, seals, and sizes of electrically controlled butterfly valves to allow you to find the right one for your application.


Technical Data of Electric Actuator Valve:

Pneumatic Actuator Valve
Electric Actuator Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Medium Temperature: -20 to +180℃
UPVC Ball Valve: -10 to +45℃
CPVC Ball Valve: -15 to +90℃
Normal Seal's Working Temperature: PTFE (-20 to +180℃), TFM (-30 to +230℃)
Manufacturing Standard: GB, ISO, ANSI, BS, DIN

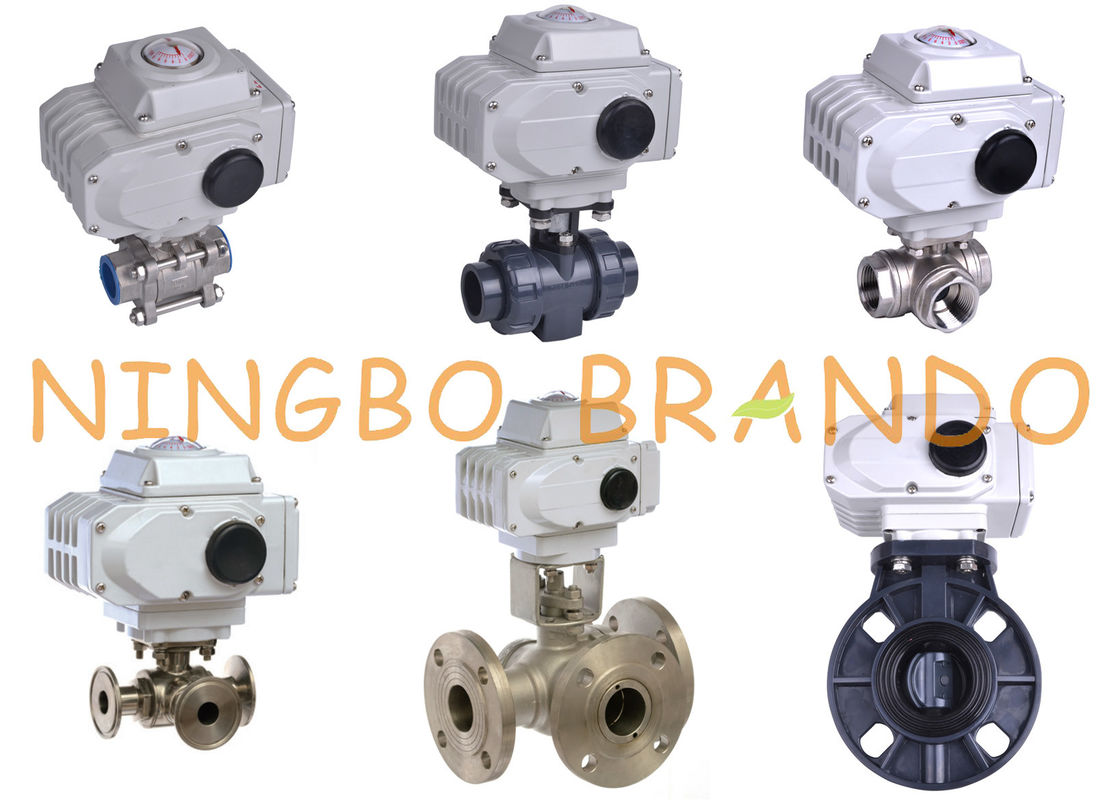

Electric Ball Valves for you to choose:

Electric Actuator Valve 0 Electric Actuator Valve 1 Electric Actuator Valve 2 Electric Actuator Valve 3
Electric Actuator Valve 4 Electric Actuator Valve 5 Electric Actuator Valve 6 Electric Actuator Valve 7


Electric Butterfly Valves for you to choose:

Electric Actuator Valve 8 Electric Actuator Valve 9 Electric Actuator Valve 10 3 Piece Stainless Steel 304 Ball Valve With Electric Actuator 24V 220V 13


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
