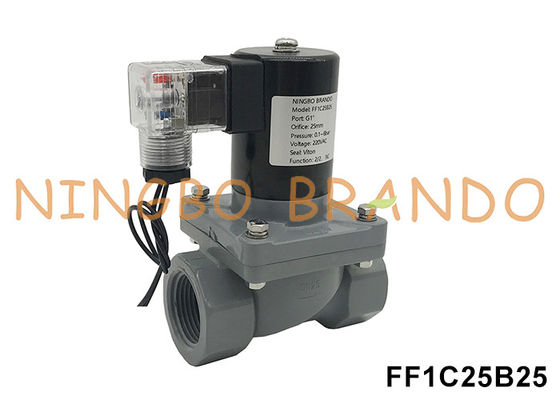

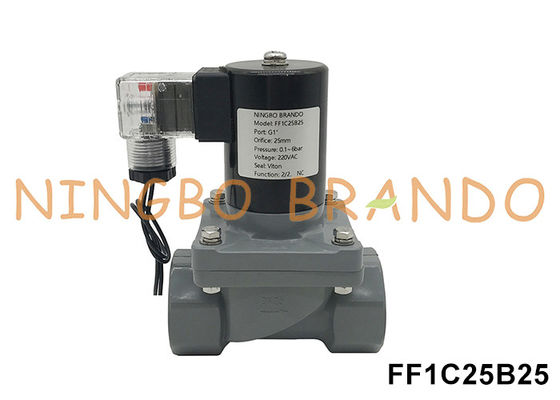

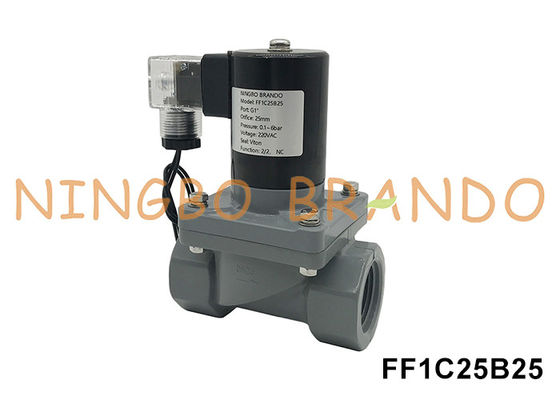

Acid Alkali Resistance CPVC Solenoid Valve Anti Corrosive 24VDC 220VAC

Acid Alkali Resistance CPVC Solenoid Valve Anti Corrosive 24VDC 220VAC

  • Acid Alkali Resistance CPVC Solenoid Valve Anti Corrosive 24VDC 220VAC
Acid Alkali Resistance CPVC Solenoid Valve Anti Corrosive 24VDC 220VAC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: CPVC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: Anti Corrosive Solenoid Valve Function: 2 Way Normally Closed
Port Size: 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' Orifice Size: 15mm, 20mm, 25mm, 32mm, 40mm, 50mm
Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC Fluids: Acid & Alkali (Gas, Liquid)
Valve Body Material: CPVC Seal Material: FKM, EPDM
Working Pressure Range: 0.01 To 0.6 MPa
High Light:

Acid Resistance Solenoid Valve

,

Solenoid Valve Anti Corrosive

,

CPVC Solenoid Valve 24VDC

Acid Alkali Resistance CPVC Solenoid Valve Anti Corrosive 24VDC 220VAC



CPVC is the modified products of PVC resin, which is a kind of new resin by the chlorination process. Comparing to the traditional PVC resin, the CPVC has better chemical stabilities and the anti-corrosion properties are improved, it has better performance in the working condition with high heat, acid, alkali, salt and oxidant. The max. woking temperature up to 110℃, the regular working temperature is 95℃. CPVC is a kind of new engineering material with wide application.



Technical Data of UPVC / CPVC Body Solenoid Valve:

UPVC Body
UPVC-15
UPVC-20
UPVC-25
UPVC-32
UPVC-40
UPVC-50
CPVC Body
CPVC-15
CPVC-20
CPVC-20
CPVC-32
CPVC-40
CPVC-50
Port Size (inch)
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Orifice Size (mm)
15
20
25
32
40
50
Cv Value
4
5.5
13
17
25
40
Medium
Acid & Alkali (Gas, Liquid)
Working Pressure
0.01 to 0.6 MPa
Working Temperature
Max. +50℃
Seal Material
EPDM, FKM
Voltage
220VAC
15w
Start: 200w Keep: 5w
Start: 350w Keep: 10w
24VDC
16w
28w
Start: 75w Keep: 25w



Main Dimension of UPVC / CPVC Body Solenoid Valve:
Anti Corrosive UPVC PVC Plastic Solenoid Valve 3/4'' 24VDC 220VAC 0

                                                         Female Thread Port



Anti Corrosive UPVC PVC Plastic Solenoid Valve 3/4'' 24VDC 220VAC 1

                                                          Flange Port



Model
Port Size
Overall Dimension (mm)
L
H
W
C
K
D
UPVC-15
CPVC-15
1/2''
74
132
63.5
63.5
92
φ64
Flange
108
UPVC-20
CPVC-20
3/4''
80
137
63.5
63.5
92
φ75
Flange
125
UPVC-25
CPVC-25
1''
100
147
74
74
92
φ85
Flange
152
UPVC-32
CPVC-32
1 1/4''
120
171
94
94
94
φ100
Flange
183
UPVC-40
CPVC-40
1 1/2''
130
180
94
94
94
φ110
Flange
201
UPVC-50
CPVC-50
2''
172
225
155
155
94
φ125
Flange
250
