Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes

Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes

  • Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes
  • Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes
Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO or OEM
Certification: CE, ISO
Model Number: BF003
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: PVC bag, inner box, carton, pallet
Delivery Time: 7 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000000PCS PER MONTH
Contact Now
Detailed Product Description
Part Name: Stem Elbow Material: Acetal, Polypropylene, Brass
Size: 1/8" 1/4" 3/8" 1/2" Type: Quick Connecting, Push In Type
Application: Water Purification, Beverage, Pneumatic OEM: Yes
ODM: Yes
High Light:

Reverse Osmosis Accessories

,

RO Water Purifier Spare Parts



Pom 90 Degree Stem Elbow Plug Elbow for Reverse Osmosis Water System Connecting Pipes Application



Features:

1, Push-fit and demountable connections
2, Suitable for hot and cold water and central heating systems
3, Grip and Seal connection
4,Lead free and non toxic
5, No scale build up and Corrosion Free


Stem Elbow Adapter (Plug Elbow Connector) Description:

Push-fit plastic fitting for the connection of plastic and copper pipe. Designed, manufactured and assembled by Brando company.

Fully onto the pipe and twist the plastic nut clockwise to lock in place. Should the need arise to demount the connection unlock the nut and push the collet towards the body of the fitting and pull the pipe to release. The fitting ensures an easier working environment in confined places and removes the need for hot works on site.

Installation can be reduced by around 40% against traditional fixing methods. Note: With all plastic pipes the relevant manufacturer’s pipe insert is required.



Stem elbow adapeter sizes for option:

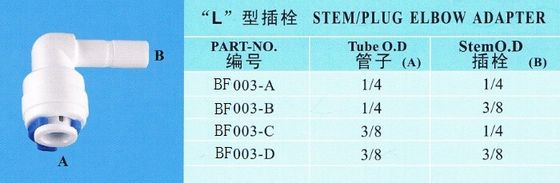

Stem Elbow Adapeter (Plug Elbow Connector)
Part No. Tube OD (A) Stem OD (B)
BF003-A 1/4 1/4
BF003-B 1/4 3/8
BF003-C 3/8 1/4
BF003-D 3/8 3/8



Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes 0



Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes 1



More Descriptions:

1--Material: FDA & NSF certified POM plastic
2--Application :
Our quick fittings and connectors are widely used in water, beverage and food applications,
such as RO water filtration system, water treatment system, coffee maker, beverage machine,
refrigerator, vending machine, and so on.
3-- Leakage Proof Design: Have been proved in markets for years.
4-- Light weight, and easy to install.
5-- Color: white or grey body with blue locking clip.



Pom 90 Degree Stem Elbow Plug Elbow , Reverse Osmosis Parts Connecting Pipes 2



Material Standards:

Material Options Fitting Color O-ring
Acetal Grey, Black, White NBR/EPDM
Polypropylene White NBR/EPDM
Brass Brass, or chromed NBR/EPDM



Fitting Working Pressure and Temperature:

  Small Size Large Size
  5/32" 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 7/8" 28mm
  4mm 5mm 6mm 8mm 10mm 12mm 15mm 16mm 18mm 22mm 28mm

1℃

34℉

16bar

230psi

11bar

170psi

11bar

170psi

20℃

68℉

16bar

230psi

11bar

170psi

11bar

170psi

65℃

150℉

10bar

150psi

7bar

100psi

7bar

100psi



Outer Diameter Tolerance Limit of Tubing Used with Fittings:

Size Tolerance
small size 5/32", 4mm +-0.004" (+-0.1mm)
small size 3/16", 5mm +-0.004" (+-0.1mm)
small size 1/4", 6mm +-0.004" (+-0.1mm)
small size 5/16", 8mm +-0.004" (+-0.1mm)
small size 3/8", 10mm +-0.004" (+-0.1mm)
small size 1/2", 12mm +-0.004" (+-0.1mm)
large size 5/8", 15(16)mm +-0.004" (+-0.1mm)
large size 7/8", 18(22)mm +-0.004" (+-0.1mm)
large size 28mm +-0.004" (+-0.1mm)



Maximum Permissible Torque:

      1/8", 1/4" 3/8", 1/2" 3/4"
Plastic Maximum Torque Nm 1.5 3.0 4.0
Steel Maximum Torque Nm 7.0-9.0 12.0-14.0 22.0-24.0 28.0-30.0 40.0





We aslo have many types quick fitting, push-in tube fitting, weclome your any question, we will response at once
