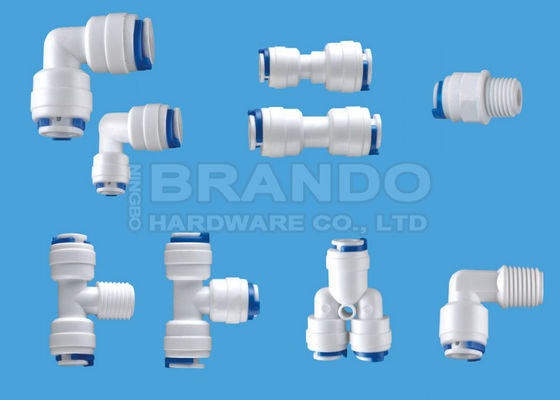

RO Quick Fittings

RO Quick Fittings

Brando offers a low cost option for these widely used quick-connect ro fittings. Designed with speed and ease in mind, the push-in QC style quickly forms a tight seal to the tubing used in home RO Systems without any tools or threaded nuts. This is particularly desirable for connection to system components that need to be removed for regular service such as membrane housings and in-line filters. These sturdy, high quality polyoxymethylene fittings are intended for use in residential RO applications with pressures up to 120 psi.

Union Tee RO Fittings Each Port Size Option:

Picture	Union tee adapter made of food grade pom material, and assembled with EPDM orings
	Part No.	Tube OD (A)	Tube OD (B)	Tube OD (C)
	BF009-A	1/4	1/4	1/4
	BF009-B	1/4	1/4	3/8
	BF009-C	1/4	3/8	1/4
	BF009-D	1/4	3/8	3/8
	BF009-E	3/8	3/8	3/8
	BF009-F	3/8	1/4	3/8
	BF009-G	5/16	5/16	5/16
	BF009-H	5/16	1/4	1/4
	BF009-I	5/16	1/4	5/16
	BF009-J	5/16	5/16	1/4
	BF009-L	1/4	5/16	1/4

Straight Push in Fit RO Fittings Each Port Size Option:

Picture	Push in fit straight adapter
	Part No.	Tube OD (A)	Tube OD (B)
	BF006-A	1/4	1/4
	BF006-B	1/4	3/8
	BF006-C	3/8	3/8
	BF006-D	5/16	5/16
	BF006-E	5/16	1/4
	BF006-F	5/16	3/8

L Shape Push In Fit RO Fittings Each Port Size Option:

Picture	L shape push fit elbow plastic fast fitting
	Part No.	Tube OD (A)	Tube OD (B)
	BF004-A	1/4	1/4
	BF004-B	1/4	3/8
	BF004-C	3/8	3/8
	BF004-D	5/16	5/16
	BF004-E	5/16	5/16
	BF004-F	5/16	5/16

Male Tee RO Fittings Each Port Size Option:

Picture	Male Tee Adapter for reverse osmosis water treatment system
	Part No.	Tube OD (A)	Tube OD (B)	Tube OD (C)
	BF007-A	1/4	1/4	1/4
	BF007-B	1/4	3/8	1/4
	BF007-C	1/4	1/4	3/8
	BF007-D	1/4	3/8	3/8
	BF007-E	3/8	3/8	3/8
	BF007-F	3/8	1/4	3/8

Straight Male Thread Ro Fittings Each Port Size Option:

Picture	Water Pipe Fitting Male Thread to Fast Fitting Straight Plastic Adapter
	Part No.	Tube OD (A)	Tube OD (B)
	BF012-A	1/4	1/4
	BF012-B	1/4	3/8
	BF012-C	3/8	3/8
	BF012-D	3/8	1/4
	BF012-E	5/16	1/4

Two Way Splitter RO Fittings Each Port Size Option:

Picture	Two Way Splitter
	Part No.	Tube OD (A) (Inlet tube)	Tube OD (B) (Outlet tube)	Tube OD (C) (Outlet tube)
	BF017-A	1/4	1/4	1/4
	BF017-B	3/8	3/8	3/8
	BF017-C	3/8	1/4	1/4

Benefits of RO Quick Fittings:
1. Quick-Connect collet locking system provides a reliable connection in moments, without the use of tools
2. Faster system assembly time
3. Aids in easier replacement of membranes and filters
4. Quick disconnection without the need for tools
5. May be used in applications up to 150 psi

Applications for Quick-Connect Fittings:
1. Point of Use (POU) Drinking Water Systems
2. Home RO Systems
3. Commercial RO Systems
4. Point of Entry (POE) Water Filtration Systems
5. Office
6. Institutions
7. Lab
8. Water Purification
9. Ice Makers
10. Beverage Dispensing
11. Vending
12. R.V.
