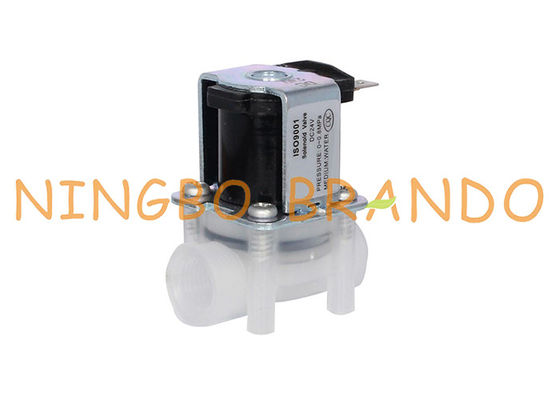

NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve

NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve

NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve
video
NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BPV05-T
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Application: Reverse Osmosis, Process Water, RO Water System, Water Purifier, Pure Water, Water Dispenser Temperature: -10℃~+80℃
Power: Solenoid Media: Water, Air, Oil
Structure: Plunger Operation: Direct Acting
Seal Material: NBR, FKM, EPDM Voltage: DC12V DC24V AC24V AC120V AC240V
Port Size: NPT1/4'' Body Material: PP
High Light:

NPT1/4 RO Solenoid Valve

,

Inlet RO Solenoid Valve

,

Water Dispenser Solenoid Valve

NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve



BPV05-T NPT1/4'' Female threaded reverse osmosis solenoid valve.



The working principle of RO reverse osmosis equipment:
RO reverse osmosis equipment uses the reverse osmosis principle of RO membrane elements to prepare pure water. While preparing pure water, a certain proportion of wastewater will be discharged. Under normal circumstances, the ratio of pure water and waste water discharge of RO reverse osmosis equipment is as follows: RO reverse osmosis equipment with a 4-inch membrane, the ratio of pure water and waste water discharge is 1:1; RO reverse osmosis equipment with 8-inch membrane, The ratio of pure water and wastewater discharge is 1:1.


RO reverse osmosis equipment is bound to discharge waste water, but the production and discharge ratio of pure water and waste water can be adjusted. The component that realizes this adjustment function is the waste water regulating valve of RO reverse osmosis equipment. The most intuitive manifestation of the application on the infiltration equipment is the level change of the wastewater flowmeter and pure water flowmeter: the increase in wastewater flow, the decrease in pure water flow, and the better pure water effluent quality; the decrease in wastewater flow, the increase in pure water flow , The quality of pure water effluent becomes worse.



Technical data:

Characteristic 1)Direct acting,0 rated bar pressure.low power
2)compact design to save the space
Medium Air,water,steam,oil,etc.
Temperature

NBR: -10°C to 80 °C

EPDM: -10°C to 120 °C

FKM:-10°C to 150 °C

Pressure 0-8.0Mpa
Port Size 1/4''
Port Thread G, NPT
Orifice DN10
Voltage

DC-12V,24V

AC-24V,120V,110V,220V/50HZ

Voltage Range ±10%
Material

Body-Nylon,PP,POM
Seal-NBR, EPDM,FKM

Amature tube-stainless steel 304

Plunger-stainless steel430F

Stop-stainless steel 430F

Springs-SS304

Shading rings- stainless steel 304





Main Dimension of RO Solenoid Water Valve:

Main Dimension of RO Solenoid Water Valve:



Brando Factory Production of Solenoid Valves:



NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve 1



More Plastic Reverse Osmosis Solenoid Valve(RO SV):



NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve 2NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve 3NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve 4NPT1/4'' Female Threaded Inlet Feed Plastic Water RO Solenoid Valve 5
