POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System

POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System

    • POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System
    • POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System
  • POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System

    Product Details:

    Place of Origin: Ningbo, China
    Brand Name: BRANDO or OEM
    Certification: CE, ISO
    Model Number: BF007

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: USD0.1 --1.0 PER PC
    Packaging Details: PVC bag, inner box, carton, pallet
    Delivery Time: 7 working days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10000000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Part Name: Male Tee Adapter Material: Acetal, Polypropylene, Brass
    Size: 1/8" 1/4" 3/8" 1/2" "5/16" Type: Quick Connecting, Push In Type
    Application: Water Purification, Beverage, Pneumatic OEM: Yes
    ODM: Yes



    POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System



    Tee Adapter with male thread, fast fitting push in type port, assembled with o-ring to ensure high performance of seal.

    Used on water purifier system, drinking dispener, beverage, etc.



    Male Tee Adapter Features:

    Material Pom, Delrin
    Color White, other color also can be customized
    Port 3 ports, 2 are fast fitting push in type, another one is male thread
    Port Size 1/4" 1/4" 3/8"
    Application Hot and cold water system



    Male Tee Adapter Each Port Size Option:

    Male Tee Adapter for reverse osmosis water treatment system

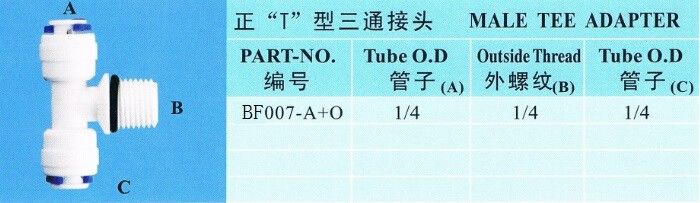

    Part No. Tube OD (A) Tube OD (B) Tube OD (C)
    BF007-AQ 1/4 3/8 1/4
    BF007-A+Q 1/4 1/4 1/4



    POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System



    POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System



    POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System



    POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System





    More Descriptions:

    1--Material: FDA & NSF certified POM plastic
    2--Application :
    Our quick fittings and connectors are widely used in water, beverage and food applications,
    such as RO water filtration system, water treatment system, coffee maker, beverage machine,
    refrigerator, vending machine, and so on.
    3-- Leakage Proof Design: Have been proved in markets for years.
    4-- Light weight, and easy to install.
    5-- Color: white or grey body with blue locking clip.



    POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System



    Material Standards:

    Material Options Fitting Color O-ring
    Acetal Grey, Black, White NBR/EPDM
    Polypropylene White NBR/EPDM
    Brass Brass, or chromed NBR/EPDM



    Fitting Working Pressure and Temperature:

      Small Size Large Size
      5/32" 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 7/8" 28mm
      4mm 5mm 6mm 8mm 10mm 12mm 15mm 16mm 18mm 22mm 28mm

    1℃

    34℉

    16bar

    230psi

    11bar

    170psi

    11bar

    170psi

    20℃

    68℉

    16bar

    230psi

    11bar

    170psi

    11bar

    170psi

    65℃

    150℉

    10bar

    150psi

    7bar

    100psi

    7bar

    100psi



    Outer Diameter Tolerance Limit of Tubing Used with Fittings:

    Size Tolerance
    small size 5/32", 4mm +-0.004" (+-0.1mm)
    small size 3/16", 5mm +-0.004" (+-0.1mm)
    small size 1/4", 6mm +-0.004" (+-0.1mm)
    small size 5/16", 8mm +-0.004" (+-0.1mm)
    small size 3/8", 10mm +-0.004" (+-0.1mm)
    small size 1/2", 12mm +-0.004" (+-0.1mm)
    large size 5/8", 15(16)mm +-0.004" (+-0.1mm)
    large size 7/8", 18(22)mm +-0.004" (+-0.1mm)
    large size 28mm +-0.004" (+-0.1mm)



    Maximum Permissible Torque:

          1/8", 1/4" 3/8", 1/2" 3/4"
    Plastic Maximum Torque Nm 1.5 3.0 4.0
    Steel Maximum Torque Nm 7.0-9.0 12.0-14.0 22.0-24.0 28.0-30.0 40.0





    We aslo have many types quick fitting, push-in tube fitting, weclome your any question, we will response at once

    POM Male T Adapter with O-ring for Pipeline Connecting on Reverse Osmosis Water Purifier System
