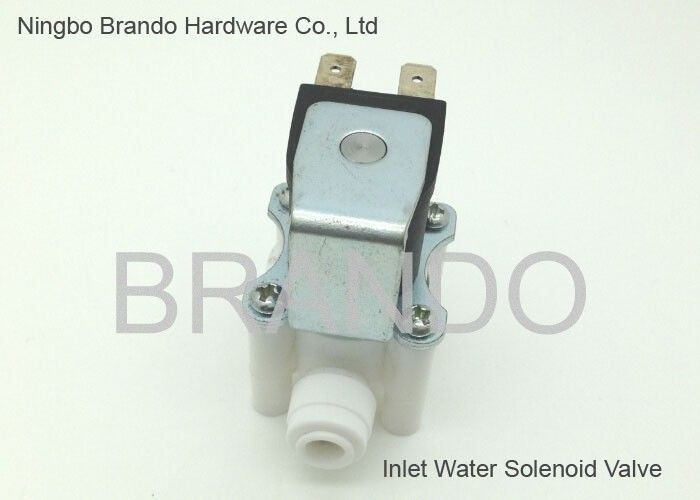

Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port

Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port

    • Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port
    • Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port
  • Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port

    Product Details:

    Place of Origin: Ningbo, China
    Brand Name: Brando
    Certification: CE, ISO9001
    Model Number: BPV05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Inner box, then loaded into carton, then packed by pallet for sea shipment
    Delivery Time: 7 working days after receive payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200000pcs per month
    Contact Now
    Detailed Product Description
    Part Name: Direct Active Diaphragm Solenoid Valve Type: Normally Closed
    Voltage: DC And AC All Available Port Connecting: Fast Coupling, Push-in Fit
    Coil Wire: Copper Wire Body Material: POM

    Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port





    Water Solenoid Valve Parameter:

    Characteristic: Direct acting solenoid valve, low power consumption solenoid valve
    Application: Food grade solenoid valve, used for water dispenser, RO water purifier system, washing machine, alcohol dispenser, etc
    Working media: Water, Air, Oil
    Working media temperature: -10℃ ~ 80℃
    Valve body material: POM, delrin
    Port connecting type: Fast fitting type, push-in type, for PE pipe, pipe OD 6.35mm
    Working pressure: 0~8.0 Bar
    Nominal diameter: DN10
    Voltage: DC 12V 24V; AC 24V 120V 240V, 60Hz; AC 110V 220V, 50Hz
    Coil specification: AC 6VA, DC 6W, IP65, 100%ED
    Seal material: NBR, Viton
    Magnetic guide tube: SS304
    Plunger set: 430FR




    Diaphragm Solenoid Valve Overall Dimensions:

    Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port



    Direct Acting Diaphragm POM Water Dispenser Solenoid Valve Details:

    Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port

    Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port





    Packaging:

    Each solenoid valve will be tested by 100% of leaking testing and function testing, after dried then packed

    by inner box, then loaded into export standard carton for sea shipment, and for easy to find in the container and transportation, we will pack all goods as a pallet if goods amount is big.

    Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port



    Quality Warranty:

    Before you place order to us, we will send you our common type sample or as your customized sample for your checking of the quality and function, after you confirmed we will keep this confirmed sample as production and inspection standard, before goods ready will test and checking one by one then ship you.

    After you get goods, if any quality is different than the confirmed sample datas, just find us, we will solve your problem or give you some replacement.





    Delivery Time:

    Depending on your order quantity, if quantity is big, the delivery time is around 20 days after receive deposit, if less quantity, we could ship at once after receive payment.



    More other Solenoid Valve for Your Selection:

    Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port



    Quality Control:

    Each solenoid valve will tested by leaking test and working test, to avoid any problem after ship out to customer all over the world.

    Delrin Food Grade Water Dispenser Solenoid Valve with Fast Fitting Type Port
