| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 2S200-20 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Valve Series: | 2S Series | Ref. Number: | UNI-D Type SUW-20 |
|---|---|---|---|
| Voltage: | AC110V AV220V DC24V | Action: | Pilot Diaphragm |
| Port Size: | 3/4 '' Inch | Media: | Water Air Gas |
| Fluid Viscossity: | Below 20 CST | Power: | Solenoid |
| Body Material: | Stainless Steel | Diaphragm Material: | NBR, FKM And EPDM |
| High Light: | 2S200-20 Water Solenoid Valve,Stainless Steel Water Solenoid Valve,UNI-D SUW-20 |
||

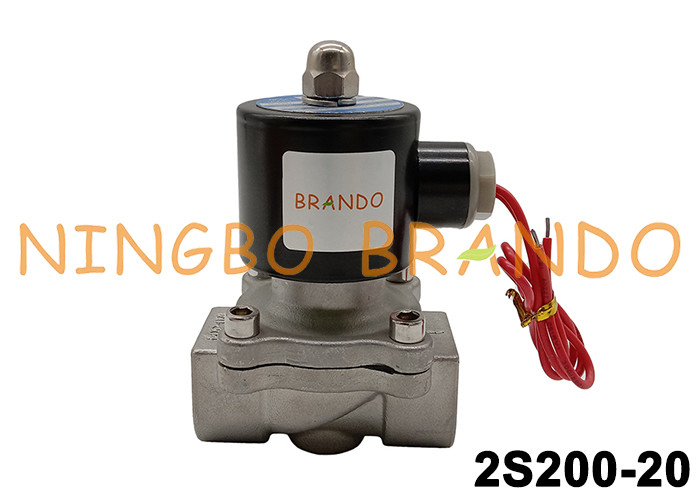

2S200-20 3/4 Stainless Steel Water Solenoid Valve NC 24VDC 220VAC
2S200-20 is an electromagnetic valve, stainless steel, appropriate is used in the field of circulation time longer control, adopting direct acting diaphragm structure, the body is made of stainless steel, corrosion resistant function.It adopts a diaphragm structure and has the characteristics of quick opening and closing, stable performance, convenient use, high reliability and long service life. The water-using solenoid valve has strong anti-pollution ability. It can be used for a long time in rivers, rivers, lakes, oceans and various artificial waters.
Technical Data of 2W & 2S Solenoid Valve:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Gas, Oil
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct Diaphragm Operated
|
||||||
|
Function
|
2 Way, Normally Closed
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure
Range
|
0 to 1.0 Mpa
|
|||||||
|
Temp. Range
|
-5 to +85℃
|
|||||||
Main dimension of 2W & 2S Series Solenoid Valves:
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
1/8''
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
1/4''
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
3/8''
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
3/8''
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
2''
|
2S200-20 3/4'' 2 Way NC SS 304 Water Electromagnetic Valve on YouTube:
Stainless steel solenoid valve characteristics:
1) The protection grade for this series solenoid valve is IP67.
2) These valves are made of stainless steel and can work in corrosive environments.
3) Pressure unit: 1kgf/cm2=1bar=0.1MPa=100KPa=14.5psi
4) The working temperature for Viton or PTFE can reach -20℃~169℃.
5) Different thread types can be offered according to customers' requirements, e.g.: G, PT, NPT etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
