Home ProductsStainless Steel Solenoid Valve

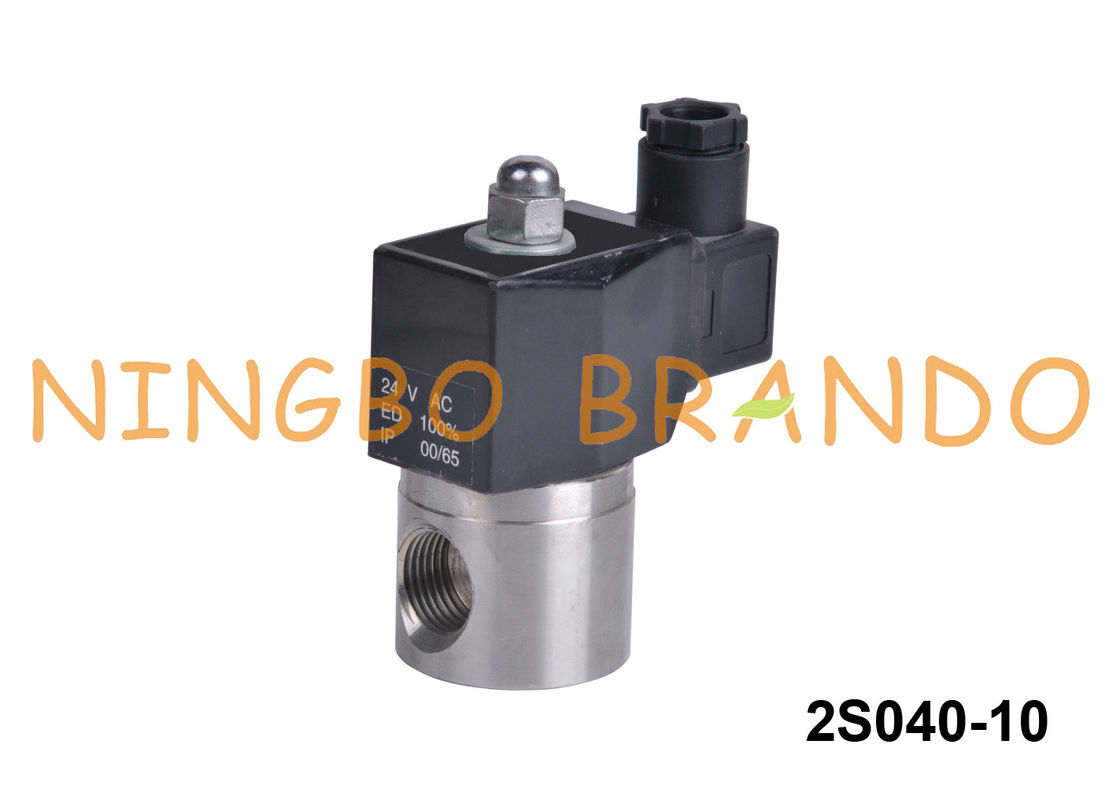

2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V

2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V

  • 2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V
2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 2S040-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 3/8'' Orifice Size: 4mm
Operation Mode: 2 Way, Normally Closed Action: Direct Acting
Working Fluids: Air, Water, Oil, Gas Body Material: Stainless Steel 304
Seal Material: NBR Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Pressure Range: 0 To 1 MPa Temperature Range: -5 To +80 ℃
High Light:

Water Solenoid Valve 3/8 inch

,

2/2 Way Solenoid Valve

,

Water Solenoid Valve Stainless Steel

2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V



One key feature of solenoid valves is that they have a position that they are always in when de-energized. This position dictates whether the valve is Normally Closed (N/C) or Normally Open (N/O). Normally Closed solenoid valves are closed when no energy is applied, and Normally Open solenoid valves are open when no energy is applied. When activated, a N/C valve will open. Conversely, a N/O valve will close when energized. Because energy must be constantly applied to stay in the energized position, solenoid valves can become hot if run continuously. Many more options are available for Normally Closed Valves, though we do offer several Normally Open valves as well.



Main Dimension of Solenoid Valve:

                                               2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V 0

Model
Port Size
A
B
C
2S025-06
1/8''
35
35
76
2S025-08
1/4''
35
35
76
2S040-10
3/8''
44
44
88
2S160-10
3/8''
66
56
103
2S160-10-NO
125
2S160-15
1/2''
66
56
103
2S160-15-NO
125
2S200-20
3/4''
73
56
110
2S200-20-NO
132
2S250-25
1''
98
73
117
2S250-25-NO
139
2S350-35
1 1/4''
118
93
160
2S350-35-NO
180
2S400-40
1 1/2''
118
93
160
2S400-40-NO
180
2S500-50
2''
156
124
188
2S500-50-NO
209



Technical Data of Solenoid Valve:

Medium
Air, Water, Oil, Gas
Action
Direct Acting, Direct Lifting Diaphragm
Function
2 Way, Normally Closed (NC), Normally Open (NO)
Viscocity
20 cst Below
Pressure
Normally Closed (0 to 1MPa), Normally Open (0 to 0.8MPa)
Temperature
NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃
Body Material
Stainless Steel 304
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Type
Waterproof Coil, Round Coil, Square Coil, etc.



Solenoid Valve Assembly Display:

2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V 1    2S040-10 3/8'' 2/2 Way NC Stainless Steel Water Solenoid Valve 220V 2



Brando Factory Production of Solenoid Valves:



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
