| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | CXSM6-10 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Bore Size (mm): | 6, 10, 16, 20, 25, 32 | Standard Stroke (mm): | 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100 |
|---|---|---|---|
| Max Operating Pressure: | 0.7 Mpa | Cushion: | Rubber Bumper |
| Port Size: | M5x0.8, 1/8'' | Bearing Type: | Slide Bearing |
| High Light: | Dual Rod Air Cylinder,Dual Rod Pneumatic Cylinder,Dual Rod Guided Air Cylinders |
||

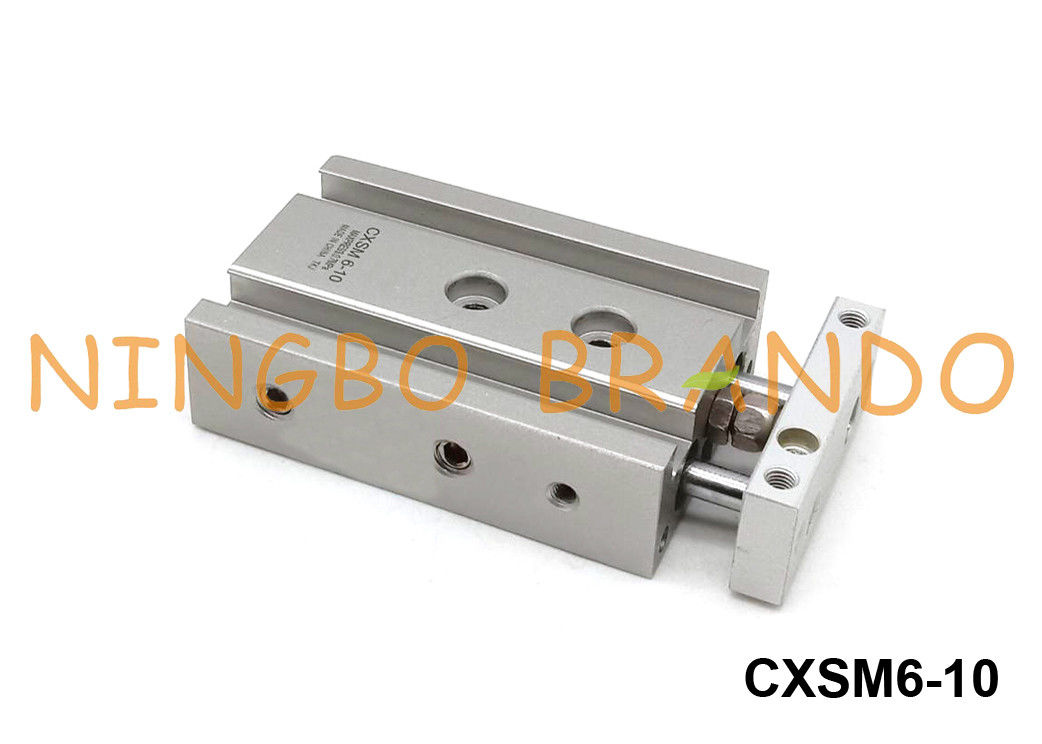

SMC Type CXSM6-10 Dual Rod Guided Pneumatic Air Cylinder
SMC Type CXS Series Pneumatic Air Cylinder is a dual piston actuator with non-rotating accuracy ± 0.1°. The CXSL high precision ball bushing type allows for smooth operation that ensures stable travel resistance. The CXSM slide bearing type provides lateral stability protecting it from side load impacts. Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Specifications of CXS Series Pneumatic Cylinder:
Stroke of CXS Series Pneumatic Cylinder:
Ordering Code of CXS Series Pneumatic Cylinder:
Theoretical Output of CXS Series Pneumatic Cylinder:
Brando Supply Pneumatic Air Cylinders:
| Airtac Type Pneumatic Cylinder | Festo Type Pneumatic Cylinder | SMC Type Pneumatic Cylinder |
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Echo
Tel: +8613454729544
