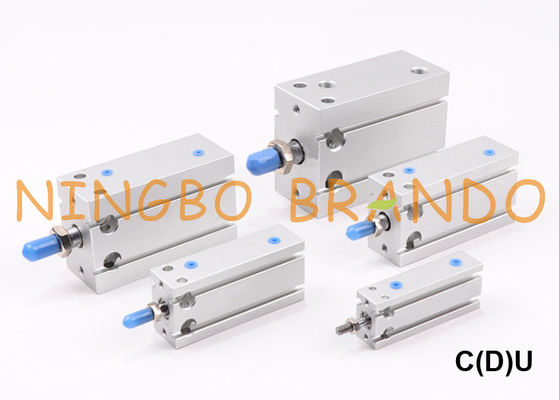

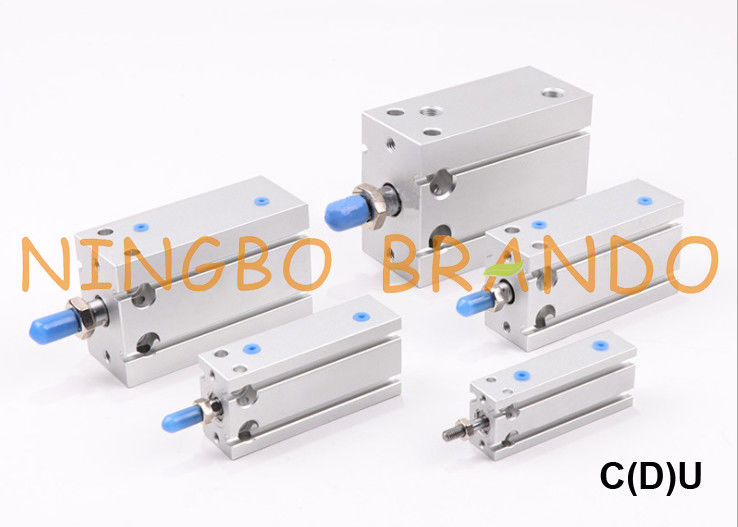

SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting

SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting

  • SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting
SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: CU
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Bore Size (mm): 6, 10, 16, 20, 25, 32 Standard Stroke (mm): 5, 10, 15, 20, 25, 30, 40, 50
Acting Type: Double Acting End Of Piston Rod: Male Thread
Piston Speed: 50 To 7500mm/s Max Operating Pressure: 0.7 Mpa
Cushion: Rubber Bumper Port Thread: M5x0.8
High Light:

SMC Air Cylinder

,

SMC Pneumatic Cylinder

,

SMC CU Cylinder

SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting



The series CU free mount cylinder saves space and allows direct and precise mounting. It is available in 6mm to 32mm bore sizes with stroke lengths up to 50mm. Options include auto switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, double rod, single and double acting, and rubber bumpers standard.


Specifications of CU Series Pneumatic Cylinder:

SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting 0



Stroke of CU Series Pneumatic Cylinder:

SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting 1


Ordering Code of CU Series Pneumatic Cylinder:
SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting 2



Theoretical Output of CU series Pneumatic Cylinder:

SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting 3



Brando Supply Pneumatic Air Cylinders:



Airtac Type Pneumatic Cylinder Festo Type Pneumatic Cylinder SMC Type Pneumatic Cylinder
SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting 4 SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting 5 SMC Type CU Series Free Mount Pneumatic Air Cylinder Double Acting 6
