| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 167AAF |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 3/8'', 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'' | Pipe Connection: | Flanged |
|---|---|---|---|
| Orifice Size: | 12mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm | Operation Mode: | 2 Way, Normally Closed |
| Operation: | Piston Pilot Operated | Body Material: | Stainless Steel |
| Working Medium: | Hot Water, Steam, Oil, Etc | Pressure Range: | 0.05 To 1.6 MPa |
| Seal Material: | PTFE, PEEK | Temperature Range: | -20 To +250℃ (PTFE), -150 To +350℃ (PEEK) |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||
| High Light: | Steam Solenoid Valve Stainless Steel,Solenoid Valve Steam 24V,Steam Solenoid Valve 220V |
||

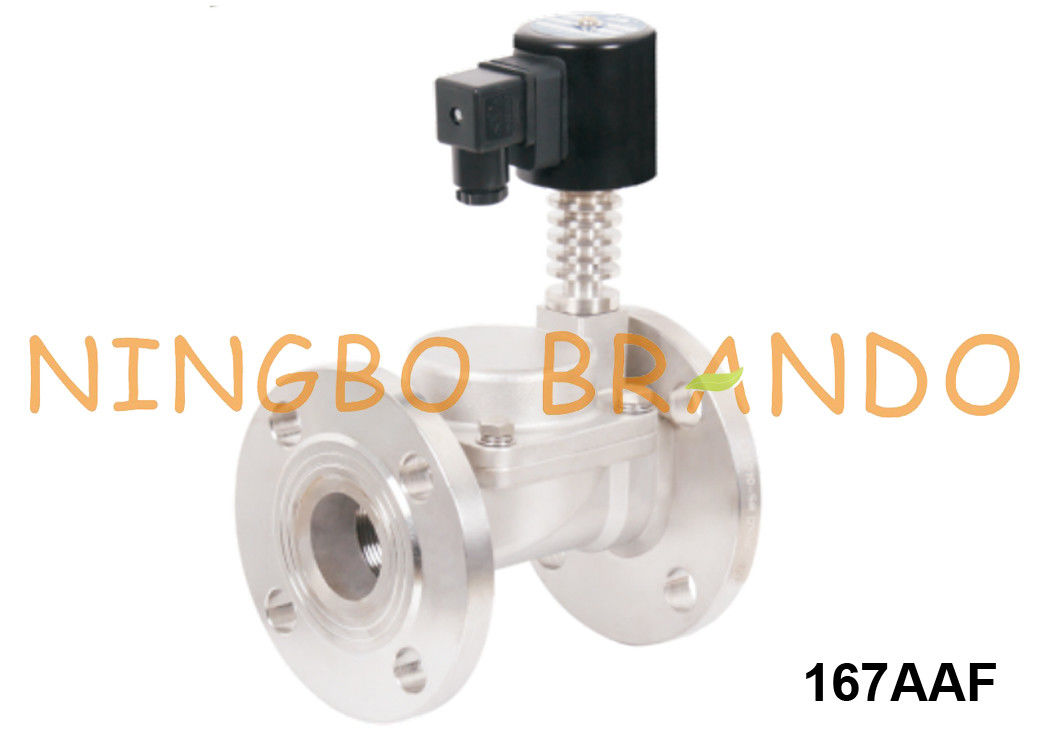

1'' 1 1/4'' 1 1/2'' 2'' Flanged Steam Solenoid Valve Stainless Steel 24V 220V
Product Features of Steam Solenoid Valve:
1. Working Medium: Hot Water, Steam, Oil, etc
2. Working Pressure Range: 0.5 to 16 Bar (See the parameter table below for details)
3. Medium Temperature Range: -20 to +250℃ (PTFE), -150 to +350℃ (PEEK)
4. Seal Material: PTFE, PEEK
5. Body Material: Stainless Steel, Brass
6. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
7. Orifice Size: 12mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm
8. Operation: PIston Pilot Operated
9. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of Steam Solenoid Valve:
Main Dimension of Steam Solenoid Valve:
Brando Factory Production of Solenoid Valves:
More Steam Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
|
|
|
|
|
|
|
|
| Stainless Steel Solenoid Valves | |||
|
|
|
|
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
