| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 1619CA-S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' | Orifice Size: | 12mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm |
|---|---|---|---|
| Operation Mode: | 2 Way, Normally Closed | Operation: | Direct Lifting Piston |
| Body Material: | Stainless Steel | Seal Material: | PTFE, FKM |
| Working Medium: | Steam, Hot Water, High Temp Liquid, Oil, Etc | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Pressure Range: | 0 To 10 Bar | Temperature Range: | 0 To +180℃ |
| High Light: | Piston Steam Solenoid Valve,Solenoid Valve Steam 3/8'',Solenoid Valve Steam 3/4'' |
||

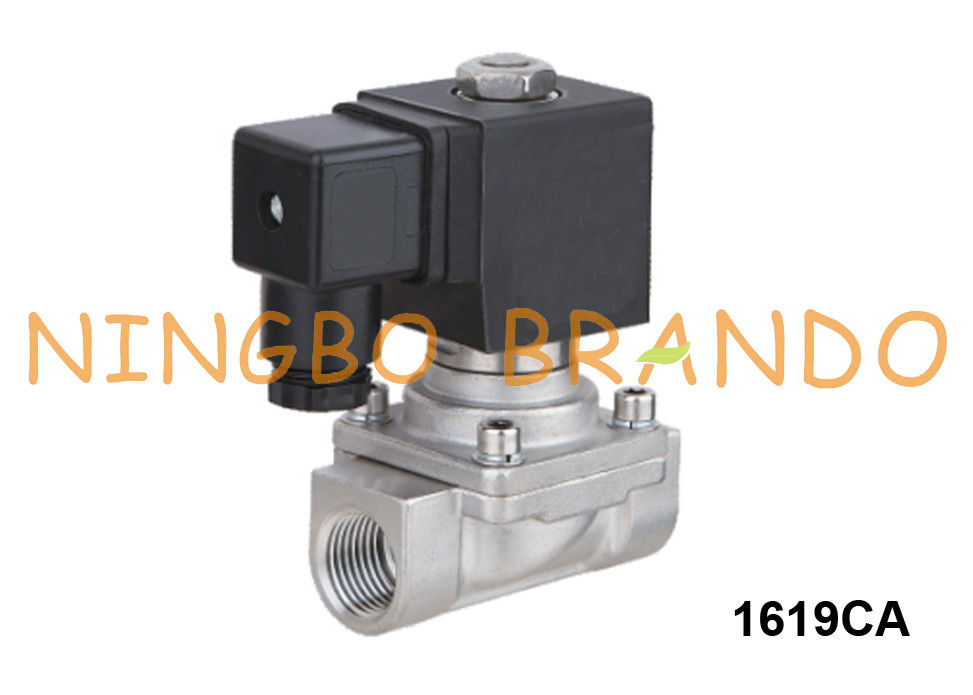

Stainless Steel Piston Steam Solenoid Valve 3/8'' 1/2'' 3/4'' 1'' 2'' 24V 220V
Product Features of Steam Solenoid Valve:
1. Working Medium: Hot Water, Steam, Oil, etc
2. Working Pressure Range: 0 to 10 Bar
3. Seal Material: PTFE, FKM
4. Body Material: Stainless Steel
5. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
6. Orifice Size: 12mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm
7. Operation: Direct Lifting Piston
8. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of Steam Solenoid Valve:
Main Dimension of Steam Solenoid Valve:
 |
|
Brando Factory Production of Solenoid Valves:
More Steam Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
|
|
|
|
|
|
|
|
| Stainless Steel Solenoid Valves | |||
|
|
|
|
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
