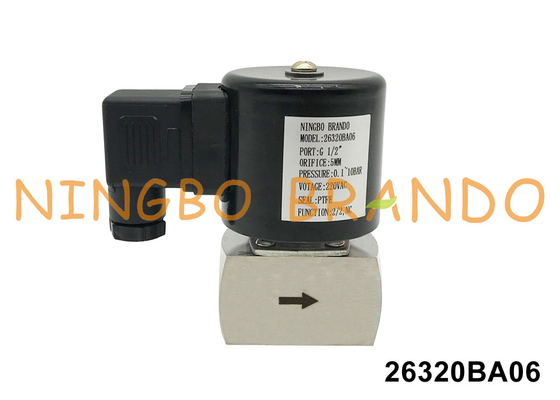

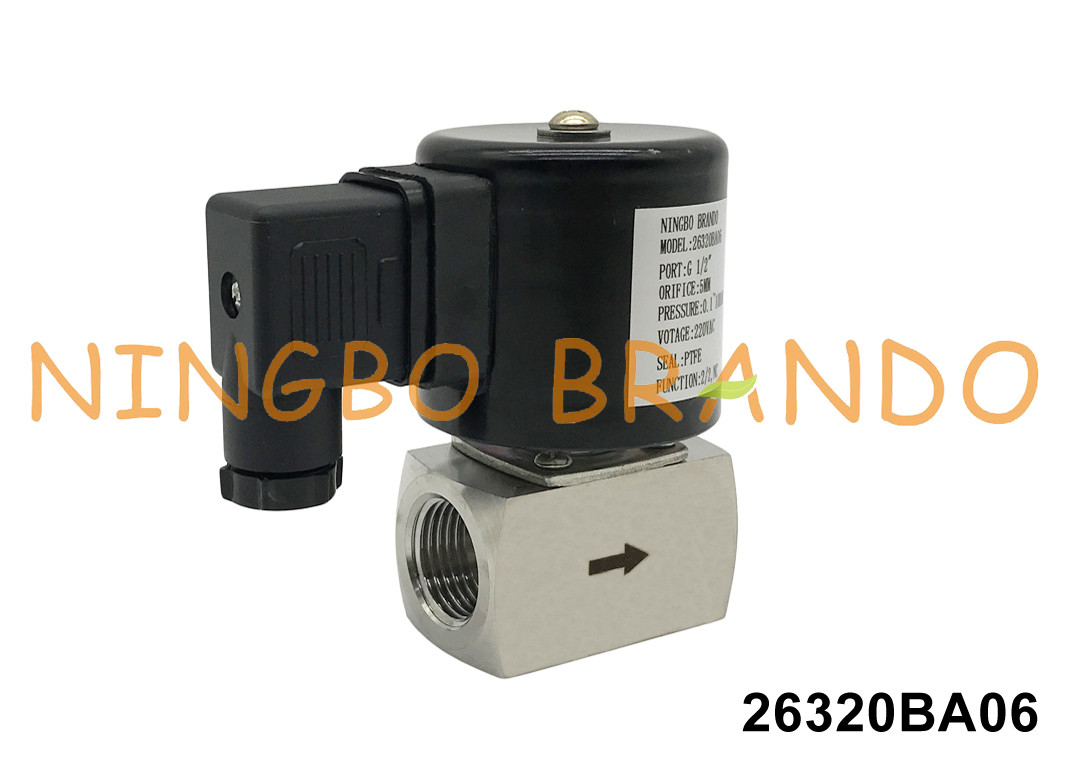

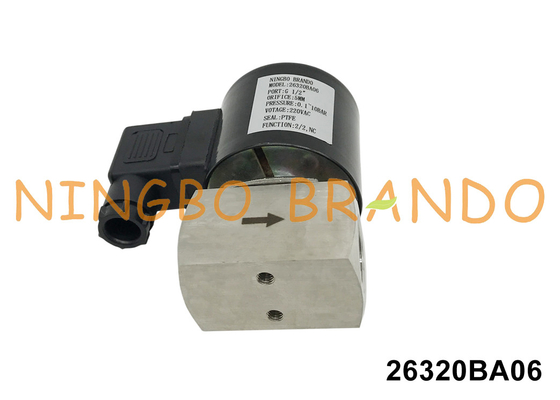

1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V

1/2'' Steam Hot Water Stainless Steel Solenoid Valve 2 Way Normally Closed 24V 220V

Product Features:

1. Port Size: 1/2'', 3/4'', 1''
2. Orifice Size: 5mm, 15mm, 20mm, 25mm
3. Function: 2 Way Normally Closed
4. Operation: Piston Pilot Operated
5. Body Material: Stainless Steel 304
6. Seal Material: PTFE, FKM
7. Working Temperature: PTFE: -60 to +200℃, FKM: -30 to +150℃
8. Working Medium: Hot Water, Steam, Oil, etc
9. Working Pressure: 0.01 to 1 MPa
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Main Dimension:

Our Production:

More Steam Solenoid Valves:

Brass Solenoid Valve

Stainless Steel Solenoid Valve

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
