| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | SVD144 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Miniature Solenoid Valve | Rated Voltage: | 3.5V, 4.5V, 6V, 12V, 24V |
|---|---|---|---|
| Working Voltage Range: | 3-4V, 3.5-5.0V, 4.8-7.2V, 10.8-13.2V, 20.5-25.2V | Working Current: | ≤280, ≤250, ≤200, ≤117, ≤100 |
| Power Consumption: | ≤0.98, ≤1.125, ≤1.2, ≤1.404, ≤2.4 | DC Resistance: | 20±10%, 36±10%, 150±10%, 615±10% |
| Leakage: | ≤15mmHg / Min | Exhaust Speed: | 500CC /＜6S |
| High Light: | Mini Solenoid Valve 12V,Mini Solenoid Valve Water,Mini Solenoid Valve Air |
||

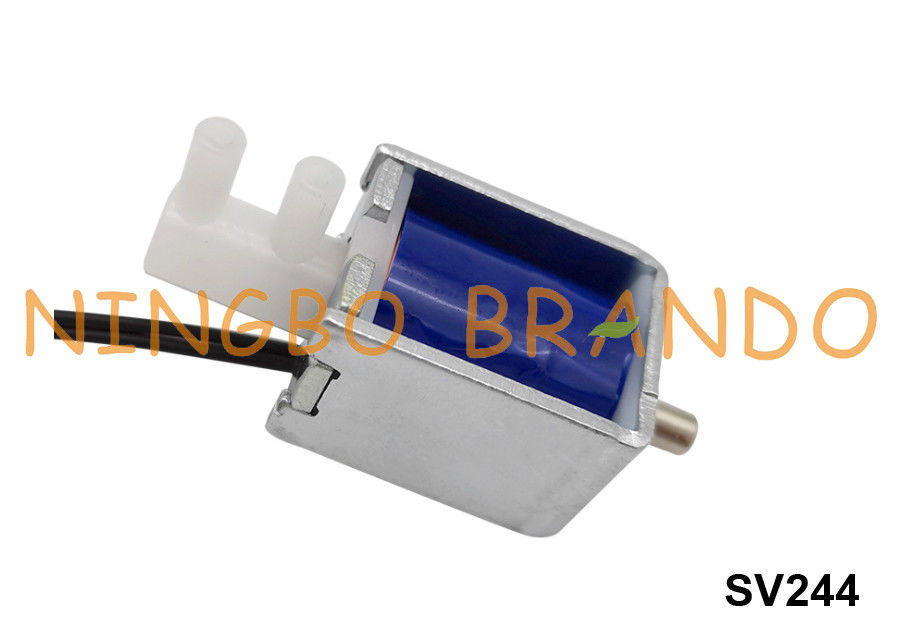

Plastic Water Air 3 Way Mini Solenoid Valve 6V 12V 24V DC
Miniature Solenoid Valves Application Examples:
1. Medical Equipments: Blood Pressure Monitor, Air Pressure Massage, Patient Monitor, etc.
2. Massage Health Care Equipments: Foot Massage, Massage Chair, Head and Eye Massage, Massage Bed, etc.
3. Household Appliances: Anti-snore Apparatus, Memory Pillow, Coffee Machine, Water Purifier, etc.
4. Other Applications: Kitchen and Bathroom Parts, Body Beauty Cares, Gas Detection and Analysis, Agricultural Application, and Scent Diffuse Machine, etc.
Dimension and Data of Miniature Plastic Solenoid Valve:
 |
|
|
| Model |
Rated Voltage |
Working Current |
Power Consumption |
Working Voltage Range |
DC Resistance |
Leakage | Exhaust Speed | Service Life |
| SV144-3.5 | 3.5 | ≤280 | ≤0.98 | 3-4V | 15±2 | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV144-4.5 | 4.5 | ≤250 | ≤1.125 | 3.5-5.0V | 20±10% | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV144-6 | 6 | ≤200 | ≤1.2 | 4.8-7.2V | 36±10% | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV144-12 | 12 | ≤117 | ≤1.404 | 10.8-13.2V | 150±40% | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
| SV144-24 | 24 | ≤100 | ≤2.4 | 20.5-25.2V | 615±10% | ≤15mmHg / Min | 500CC /＜6S | ≥180000 |
Brando Solenoid Valve Factory Production Video:
More Miniature Plastic Solenoid Valves for you to choose:
| 2 Way Miniature Solenoid Valve | |||
|
|
|
|
|
|
|
|
| 3 Way Miniature Solenoid Valve | ||
|
|
|
|
|
|
| Combination | ||
|
|
|
