| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | SVD141 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Miniature Solenoid Valve | Rated Voltage: | 6V, 12V, 24V |
|---|---|---|---|
| Working Current: | ≤500, ≤300, ≤200 | Power Consumption: | ≤1.35, ≤3.6, ≤4.8 |
| Working Voltage Range: | 5.6-7.0V, 10.8-13.2V, 20.5-25.2V | DC Resistance: | 50±10%, 220±10% |
| Leakage: | ≤15mmHg / Min | Exhaust Speed: | 1500CC /＜6S |
| High Light: | Miniature 3 Way Solenoid Valve,Miniature Solenoid Valve 6V,Small Solenoid Valve Air |
||

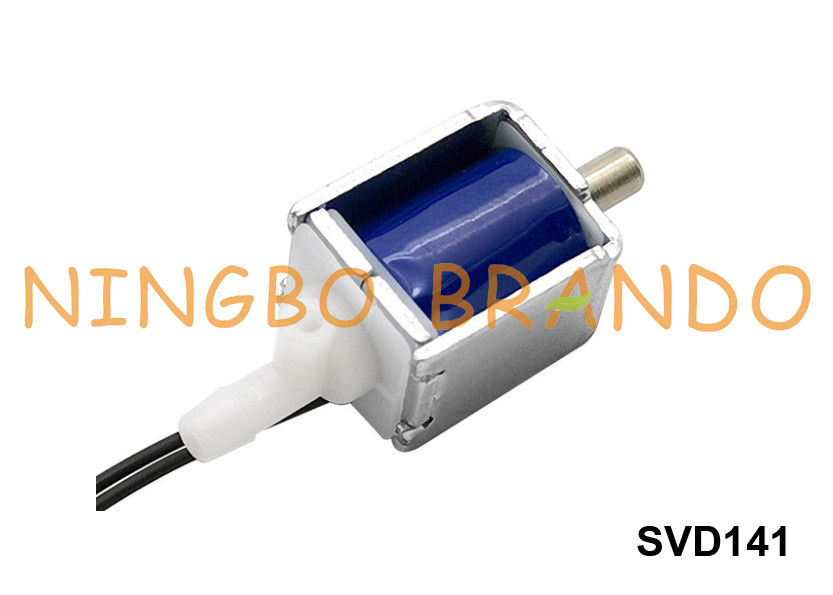

3 Way Miniature Air Plastic Electric Solenoid Valve 6V 12V 24V DC
Miniature Solenoid Valves Application Examples:
1. Medical Equipments: Blood Pressure Monitor, Air Pressure Massage, Patient Monitor, etc.
2. Massage Health Care Equipments: Foot Massage, Massage Chair, Head and Eye Massage, Massage Bed, etc.
3. Household Appliances: Anti-snore Apparatus, Memory Pillow, Coffee Machine, Water Purifier, etc.
4. Other Applications: Kitchen and Bathroom Parts, Body Beauty Cares, Gas Detection and Analysis, Agricultural Application, and Scent Diffuse Machine, etc.
Dimension and Data of Miniature Plastic Solenoid Valve:
 |
|
| Model |
Rated Voltage |
Working Current |
Power Consumption |
Working Voltage Range |
DC Resistance |
Leakage | Exhaust Speed | Service Life |
| SVD141-6 | 6 | ≤500 | ≤1.35 | 5.6-7.0V | 15±2 | ≤15mmHg / Min | 1500CC /＜6S | ≥180000 |
| SVD141-12 | 12 | ≤300 | ≤3.6 | 10.8-13.2V | 50±10% | ≤15mmHg / Min | 1500CC /＜6S |
≥180000 |
| SVD141-24 | 24 | ≤200 | ≤4.8 | 20.5-25.2V | 220±10% | ≤15mmHg / Min | 1500CC /＜6S |
≥180000 |
