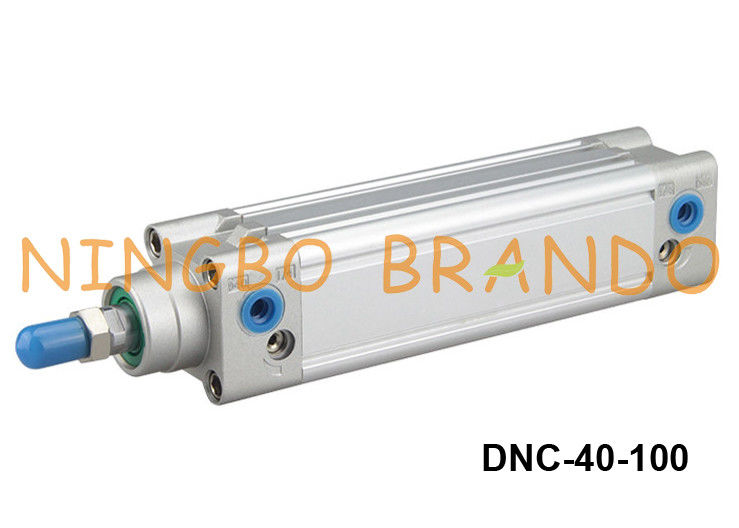

Festo Type DNC-40-100-PPV-A Piston Rod Air Cylinder Double Acting

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	DNC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Series:	Piston Rod Cylinder	Bore Size (mm):	32, 40, 50, 63, 80, 100, 125
Standard Stroke (mm):	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	Acting Type:	Double Acting
Operating Pressure Range:	0.15 To 1.0 MPa	Proof Pressure:	1.5 MPa
High Light:	Piston Rod Air Cylinder , Air Cylinder Double Acting , Festo Type DNC-40-100-PPV-A

Festo Type DNC-40-100-PPV-A Piston Rod Air Cylinder Double Acting

Double-acting Pneumatic profile cylinders are typically required when the force or stroke length is greater than that of a Single-acting cylinder. Industrial uses for Pneumatic profile cylinders can be pushes and presses, robotics, forklifts, jacks, automobiles and aeroplane landing gear.

Pneumatic cylinders offer fast movement of the pistons using air compression, enabling application to small scale operations. On the other hand, hydraulic cylinders offer a smoother transition, but are usually applied on larger scales. This is due to the hydraulic oil in the cylinders requiring more energy to create the force.

Specifications of DNC Series Pneumatic Cylinder:

Bore Size (mm)	32	40	50	63	80	100	125
Acting Type	Double Acting
Fluid	Air (to be filtered by 40μm filter element)
Operating Pressure Range	0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi)
Proof Pressure	1.5 MPa (15 bar) (215 psi)
Temprature (℃)	-20 to +80
Speed Range (mm/s)	30 to 800
Cushion Type	Variable cushion
Port Size	1/8''	1/4''		3/8''		1/2''

Stroke of DNC Series Pneumatic Cylinder:

Bore Size (mm)	Standard Stroke (mm)	Max. Std Stroke	Max. Stroke
32	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500	1000	1800
40	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800	1200	1800
50	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1200	1800
63		1500	1800
80		1500	1800
100		1500	1800
125		1500	1800

Ordering Code of DNC Series Pneumatic Cylinder:

Festo Type DNC-40-100-PPV-A Piston Rod Air Cylinder Double Acting 0

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
