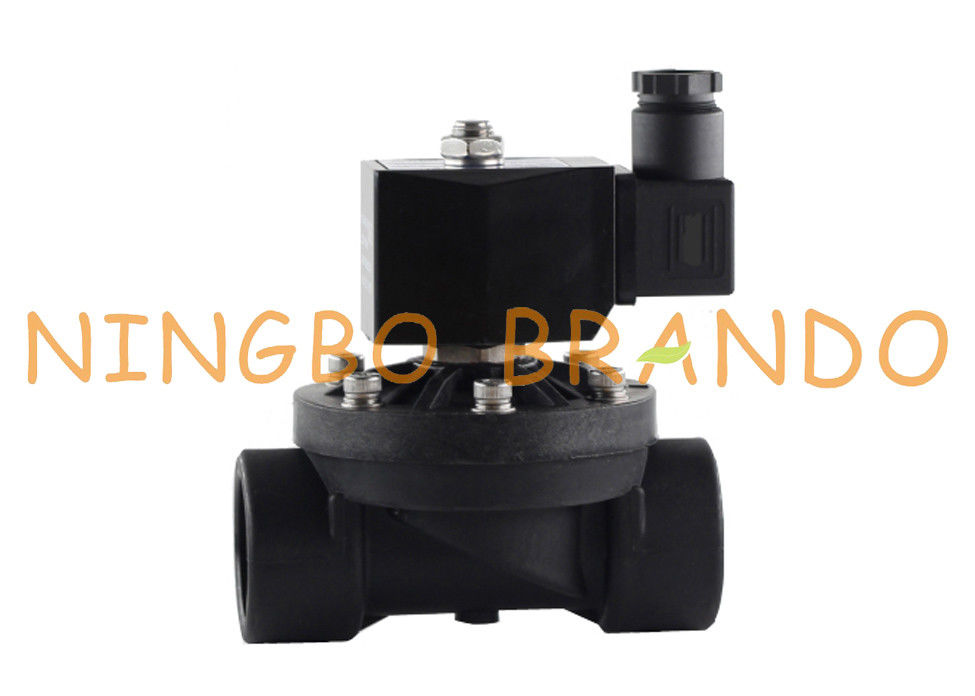

Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC

Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC

  • Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC
Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 2W-25PA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: Plastic Solenoid Valve Working Fluids: Air, Liquids, Water, Gas
Port Size (inch): 1/2'' To 2'' Orifice Size: 15mm To 25mm
Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) Operation: Semi-Direct, Diaphragm Operated
Operation Mode: 2 Way, Normally Closed Body Material: PA66 (Nylon)
Seal Material: NBR Pressure Range: 0 To 1MPa
Thread Type: Threaded (G, NPT)
High Light:

1 Inch Plastic Solenoid Valve

,

NBR Seal Solenoid Valve

,

Normally Closed Solenoid Valve

Water Electric PA66 Nylon Plastic Solenoid Valve 1'' 2'' 12VDC 24VDC 110VAC 220VAC



Product Features:

1. Function: 2 Way 2 Position, Normally Closed
2. Pressure Range: 0-1.0 MPa
3. Voltage: DC 12V, 24V; AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
4. Temperature Range of Media: -5~80℃
5. Suitable Media: Water, Air, Gas, etc
6. Material: Plastic (PA66)

7. Seal Material: Nitrile



These plastic solenoid valves are an affortable but amazingly robust and dependable choice for a variety of water, air, and other general purpose liquid applications. Media being controlled must be compatible with PA66 Nylon plastic, NBR rubber, and Stainless Steel. These plastic solenoid valves are semi-direct acting, making them suitable for many low differential pressure applications where traditional, pilot operated, solenoid valves may not perform reliably.



Dimension & Data of PA66 Nylon Plastic Solenoid Valve:

Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 0

Model
Orifice Size
(mm)
Port Size
(inch)
CV
Working Pressure
(bar)
Dimension
AxBxC
(mm)
Normally Closed
Normally Open
2W-15PA
15
1/2''
4.8
0 to 7
0 to 6
0 to 6
76x68x107
2W-20PA
20
3/4''
7.6
80x68x111
2W-25PA
25
1''
12
107x82x117
2W-32PA
32
1-1/4''
22
0 to 6
0 to 5
0 to 4
140x112x160
2W-40PA
40
1-1/2''
30
140x112x170
2W-50PA
50
2''
48
159x130x190


Brando Factory Production of Solenoid Valves:

Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 1



More Plastic Solenoid Valves for you to choose:

1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve

2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.



Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 2Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 3Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 4

Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 5Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 6Water Electric PA66 Nylon Plastic Solenoid Valve 1" 2" 12VDC 24VDC 110VAC 220VAC 7
