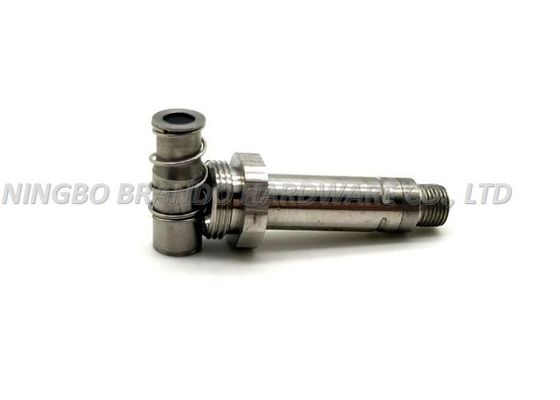

Thread Connection Silvery Solenoid Stem High Precision With External Spring

Thread Connection Silvery Solenoid Stem High Precision With External Spring

    • Thread Connection Silvery Solenoid Stem High Precision With External Spring
    • Thread Connection Silvery Solenoid Stem High Precision With External Spring
    • Thread Connection Silvery Solenoid Stem High Precision With External Spring
    • Thread Connection Silvery Solenoid Stem High Precision With External Spring
    • Thread Connection Silvery Solenoid Stem High Precision With External Spring
  • Thread Connection Silvery Solenoid Stem High Precision With External Spring

    Product Details:

    Place of Origin: Ningbo CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC210029002

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: US D 2-5 per pc
    Packaging Details: Carton with Plastic covered
    Delivery Time: 3-8 work days
    Payment Terms: D/A, T/T, Western Union, D/A
    Supply Ability: 4000 pcs per month
    Contact Now
    Detailed Product Description
    Tube Height: 29.0 Connection: Thread
    Type: 2/2 Way Color: Silvery
    Item Weight: 29.5 Material: Stainless Steel
    Tube OD: 11.0mm Voltage: AC/DC

    2/2 Way Male Thread Connection,High Precision Solenoid Stem With External Spring



    Specification For detail information



    1.Brand:BRANDO

    2.NO,:BAPC210029002

    3.Tube out diameter:10.0mm

    4.Tube height:29.0mm

    5.Item weight:29.5g

    6.Upper Thread height:5.3mm

    7.Movable core height:24mm

    8. Solenoid armature height:44.5mm

    9.Depth:24mm

    10.Voltage:Both AC/DC

    11.Material:stainless steel SS304 and NBR

    12.Component:armature tube,plunger and external spring,O-Ring seal,Embed NBR

    13.Standard or no:standard

    14.Connection type:Thread

    15,Application:mainly used for Pneumatic solenoid valve



    Solenoid valve application



    1.Dental equipment

    2.Dust collector device

    3.Automatic vending machine

    4.Pulse device

    5.Pneumatic equipment

    6.Auto drain industry

    7.Air suspension

    8.Refrigeration device

    9.Hyraulic industry

    10.Life water and industry water supply

    11.Air condition device

    12.Pipe switch

    13.Evr:Electronic Video Recorder

    14.Chemical industry



    Item instruction



    1. 2 way 2 way normally closed solenoid stem,Can assemble with solenoid coil.2 way 2 way normally closed types of valves work best for smaller flow rate. One of the benefits to using these is that they only need to use full power when opening the valve. Once the valve is open, these valves can hold the open position even when operating on low power.



    Product supply catalog



    Pom fast fitting Forged brass valve
    Quick coupling Solenoid Stem
    Fast coupling Electromagnetic coil
    Pipe Adapter Air suspension valve
    Telescoping pneumatic cylinder Pulse valve repair diaphragm
    Single acting cylinders Pulse valve replacement repaire kit
    Pneumatic solenoid valve Pulse valve guide tube
    Pneumatic component Danfoss refrigeration solenoid valve
    Pulse valve Auto Drain valve
    Dust collector valve Hyraulic coil
    Solenoid valve coil Solenoid valve bobbin



    Transportation and delivery



    1.By air,by sea,by express are all in available

    2.The lead time:3-8 work days or faster,if we have stock

    3.We'll tell you the tracking number once your order has been sent

    4.Products with plastic covered, Packaged in plastic bag, Plastic bags in carton boxes, Carbon boxes on wooden cases or wooden pallet with Iron belt or as per customers' request.For the largest possible protection.

    5.If you any other problems and questions,please contact with us to negotiate the delivery detail



    Related Movable core/solenoid stem



    Thread Connection Silvery Solenoid Stem High Precision With External Spring



    We have more than 10 years experience in manufacturing solenoid stem. Excellent quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products of solenoid armature assembly are being exported all over the world. We provide OEM service, accept customer label, develop the product with your drawings or samples .If you have any question, contact us, we will be reply with prompt speed.
