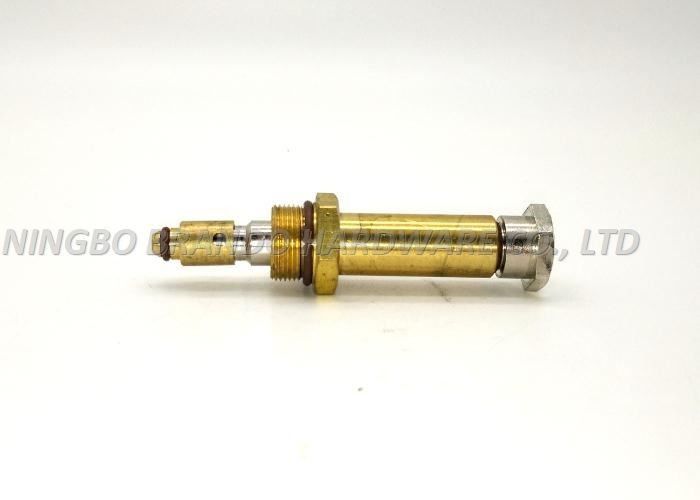

Brass Color Female Thread Assembled Solenoid Stem Armature/FKM Assembled Guide Core

Brass Color Female Thread Assembled Solenoid Stem Armature/FKM Assembled Guide Core

    • Brass Color Female Thread  Assembled Solenoid Stem Armature/FKM Assembled Guide Core
    • Brass Color Female Thread  Assembled Solenoid Stem Armature/FKM Assembled Guide Core
    • Brass Color Female Thread  Assembled Solenoid Stem Armature/FKM Assembled Guide Core
    • Brass Color Female Thread  Assembled Solenoid Stem Armature/FKM Assembled Guide Core
    • Brass Color Female Thread  Assembled Solenoid Stem Armature/FKM Assembled Guide Core
  • Brass Color Female Thread  Assembled Solenoid Stem Armature/FKM Assembled Guide Core

    Product Details:

    Place of Origin: Ningbo CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC214044044

    Payment & Shipping Terms:

    Minimum Order Quantity: 4pc
    Price: negotiation
    Packaging Details: Standard exported carton
    Delivery Time: 6 work days
    Payment Terms: Western Union, D/P, MoneyGram, D/A, T/T, L/C
    Supply Ability: 40000 pcs per month or more
    Contact Now
    Detailed Product Description
    Connection: Female Thread Color: Brass
    Standard Or No: Standard Pressure: Normal
    Voltage: AC/DC Material: Brass And Stainless Steel
    Tube OD: 14.0mm Tube Height: 44.0mm

    Brass Color Female Thread Assembled Solenoid Stem Armature/FKM Assembled Guide Core



    Specification and dimension



    Brand BRANDO
    NO. BAPC214044044
    Voltage AC/DC
    Tube OD 14.0mm
    Tube height 44.0mm
    Item weight 84.5g
    Movable core height 40.9mm
    Depth 37.6mm
    Armature height 48.5mm
    Material Imported original high quality Stainless steel Brass



    It's important to choose the fitting items,right power,voltage,right specification

    So if you have any question please contact us freely,We have detail instruction about each item of our company



    Product characteristic and feauture



    1.Component:Three parts,Female thread solenoid stem armature,the matching screw thread and the plunger with spring.

    2.The armature is made by brass,with a hollow channel.Three way two way solenoid stem.It's fully hollow.

    3.Brass pentagon seat with  male thread  as the connection

    4.FKM O-Ring



    FKM Advantages

    Excellent heat resistance, oxidation resistance, oil resistance, corrosion resistance and atmospheric aging resistance, has been widely used in aerospace, aviation, automotive, petroleum and household electrical appliances and other fields, is an irreplaceable key material in the national defense industry.

    O-Ring:Good kits to seal the media of liquid



    5.The matching screw thread fit the solenoid stem armature perfectly,and the upper shape is pentagon.Also with a FKM O-Ring

    6.Plunger and spring consist of two parts.The upper part is stainless steel plunger,so the rest is brass plunger.They are connected by a stainless steel stick

    7.Also there is O-Ring in the plunger and spring part.In addition with a FKM Seal

    8.Common and  Normall spring



    Application for Car Valve(After assembling)





    Automobile solenoid valve is the executive component of electronic control system, mainly plays the role of switch, such as gasoline solenoid valve is to open and close the oil circuit.

    It is a vehicle safety control system with the advantages of skid proof and anti lock. ABS is an improved technology based on conventional brake devices, which can be divided into two types: mechanical and electronic. Anti-lock braking system is widely installed in modern automobiles. ABS not only has the braking function of ordinary braking system, but also can prevent wheel lock, so that the automobile can still turn under braking condition, ensure the braking direction stability of the automobile, and prevent side slip and deviation. ABS is the most advanced braking device with the best braking effect on automobiles.





    Four principles to choose suitable items



    Application Reliability Safety Economy





    Pneumatic pulse valve image



    Brass Color Female Thread  Assembled Solenoid Stem Armature/FKM Assembled Guide Core



    Hope every customer get a satisfied result  and give the highest quality product to my consumers
