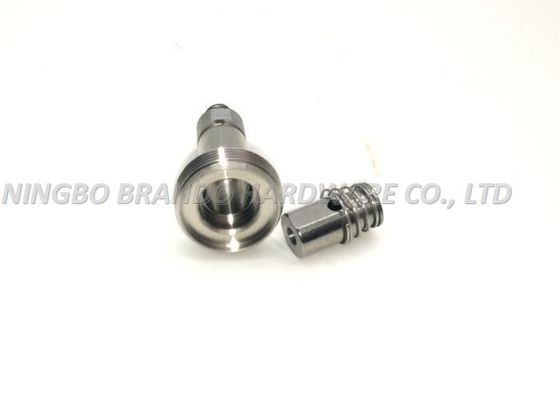

OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core

OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core

    • OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core
    • OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core
    • OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core
    • OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core
    • OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core
  • OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core

    Product Details:

    Place of Origin: Ningbo CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC211030137

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Price: US D 0.1-9 per pc
    Packaging Details: Export carton/Decade a box
    Delivery Time: 5 work days
    Payment Terms: Western Union, MoneyGram, D/A, D/P
    Supply Ability: Four thousand pcs per day
    Contact Now
    Detailed Product Description
    Seal: NBR Color: Silvery
    Seat Type: Flange Type: 2/2 Way NC
    Tube OD: 11.0mm Connection: Thread

    2/2 Way Plunger Tube Assembly With Flange Seat/Silvery Cylindrical Core



    Application of solenoid stem



    1.Assemble with solenoid coil,nut and other kits.Form a magnetic solenoid valve(for example)

    2.After forming,Solenoid valve can be used in these aspects and fields

    Dental equipment,Dust collector valve,Automatic vending machine,Pulse device,Pneumatic equipment,Auto,drain industry,Air suspension,Refrigeration device,Hyraulic industry,Life water and industry water supply,Air condition device/Air suspension valve,Pipe switch,Evr solenoid valve,Forged brass solenoid valve,etc.



    Each part we use



    Armature-stem 430FR
    Movable Core
    Spring
    Seal NBR
    Seat type Flange



    430FR:A kind of universal steel with good corrosion resistance. Its thermal conductivity is better than austenite, thermal expansion coefficient is smaller than austenite, and thermal fatigue resistance is better. The mechanical properties of weld seam are better when adding stabilized element titanium.

    NBR:NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkaline.

    Flange:A flange is an external or internal ridge, or rim (lip), for strength, as the flange of an iron beam such as an I-beam or a T-beam; or for attachment to another object, as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera; or for a flange of a rail car or tram wheel. Thus flanged wheels are wheels with a flange on one side to keep the wheels from running off the rails. The term "flange" is also used for a kind of tool used to form flanges. Pipes with flanges can be assembled and disassembled easily.



    Detail information of BAPC211030036



    Brand BRANDO
    NO. BAPC211030137
    Voltage AC/DC
    Tube OD 11.0mm
    Tube height 30.1mm
    Item weight 30g
    Movable core height 19.8mm
    Depth 20.1mm
    Armature height 42.2mm
    Material Stainless steel
    Standard or no Standard
    Type Two way two way normally closed
    Seal material NBR
    Standard or no Standard
    Certificate CE ISO
    Saet type Flange seat



    Five most common malfunctions of solenoid valves



    OD 11.0mm Plunger Tube 2 / 2 Way With Flange Seat / Silvery Cylindrical Core



    1.Dirt particles(dirty seal the solenoid coil)

    2.Flow and pressure

    3.Coil burnt out(maybe work for long time or use mistaken power supply)

    4.Mistaken Power supply which lead to overload(unproper use)

    5.Damaged seal lead to leakage of media(such as acid/alkaline gas,etc)



    So in order to aviod unnecessary damage and destroy of machine and equipment,We will give the instruction and guide brochure.Please read the instruction and guide brochure before using



    Provide OEM Service

    Professional chinese original manufacturer
