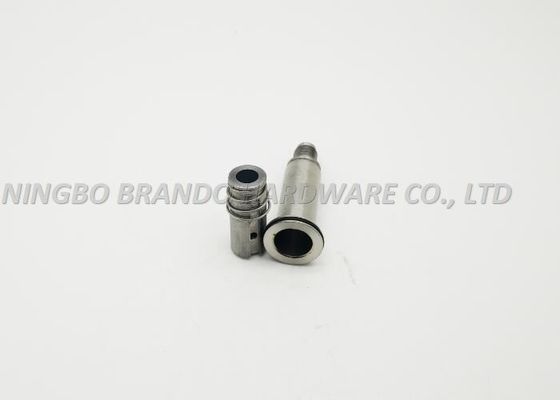

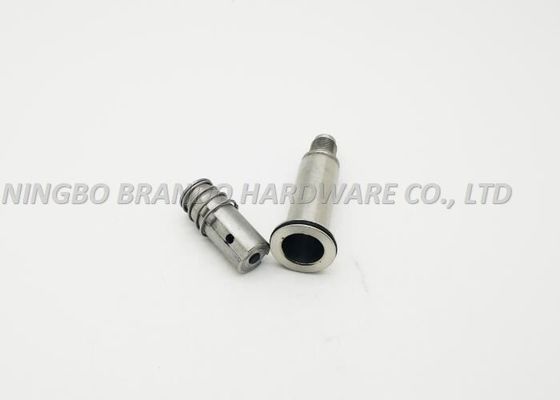

33.0mm Height Replaceable Normalized Movable Core/Double Circular Seat Solenoid Stem

33.0mm Height Replaceable Normalized Movable Core/Double Circular Seat Solenoid Stem

    • 33.0mm Height Replaceable  Normalized Movable Core/Double Circular Seat Solenoid Stem
    • 33.0mm Height Replaceable  Normalized Movable Core/Double Circular Seat Solenoid Stem
    • 33.0mm Height Replaceable  Normalized Movable Core/Double Circular Seat Solenoid Stem
    • 33.0mm Height Replaceable  Normalized Movable Core/Double Circular Seat Solenoid Stem
    • 33.0mm Height Replaceable  Normalized Movable Core/Double Circular Seat Solenoid Stem
  • 33.0mm Height Replaceable  Normalized Movable Core/Double Circular Seat Solenoid Stem

    Product Details:

    Place of Origin: Ningbo CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC214340063

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Price: US D 1-8per pc
    Packaging Details: Decades a box and into carton
    Delivery Time: 4-7 work days
    Payment Terms: L/C, D/A, Western Union, MoneyGram
    Supply Ability: 5 thousand pcs per day or more
    Contact Now
    Detailed Product Description
    Voltage: AC/DC Connection: Thread
    Tube OD: 14.3mm Standard Or No: Standard
    Color: Silvery White Seat Type: Circular Seat
    Material: 430FR Type: 2/2 Way NC

    33.0mm Height Replaceable Normalized Movable Core/Double Circular Seat Solenoid Stem



    Product characteristic



    Two way two position solenoid stem. These types of valves work best for smaller flow rate.

    Doule Circular Seat to fit the O-Ring

    O-Ring:Owing to its low price, simple manufacture, reliable function and simple installation requirements, O-ring is the most common mechanical design for sealing. The O ring bears the pressure of tens of millions of Pascal (1000 pounds). O-rings can be used in static applications, as well as in dynamic applications where parts move relative to each other, such as the shaft of a rotary pump and the piston of a hydraulic cylinder.

    The upper screw thread was Welded and connect to the armature
    Main body of armature is smooth and beautiful

    With Doulbe compress spring,internal spring and external spring.Guarantee engough spring force to hold the movable core down and upward

    Common design:Vertical groove and a vent.
    Both side NBR of the center movable core.

    NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkaline.



    Solenoid stems' Advantage



    1.Good quality because our strict quality control

    2.Beautiful appearance with little deviation because washing process and careful manufacture

    3.Long life span/service because our material quality



    Solenoid valve advantage



    in vacuum, negative pressure, zero pressure can work normally
    It can also be operated at zero differential pressure or vacuum or high voltage
    The upper limit of fluid pressure range is high, and can be installed arbitrarily




    Parameter/Know more specification of BAPC214338162



    1.Brand:BRANDO

    2.NO,:BAPC214340033

    3.Tube out diameter:14.3mm

    4.Tube height:40.0mm

    5.Item weight:58.5g

    6.Thread height:10.3mm

    7.Voltage:Both AC/DC

    8.Movable core height:33.4mm

    9.Solenoid armature height:54.5mm

    10.Depth:27mm

    11.Material:stainless steel SS304 and NBR

    12.Component:main body of armature,plunger,interior spring,O-Ring seal,NBR bottom Seal



    Application



    Dental equipment,Dust collector valve,Automatic vending machine,Pulse device

    Pneumatic equipment,Auto drain industry

    Air suspension,Refrigeration device

    Hyraulic industry,Life water and industry water supply

    Air condition device/Air suspension valve,Pipe switch

    Evr solenoid valve.Forged brass solenoid valve,etc



    Pneumatic pulse valve image





    33.0mm Height Replaceable  Normalized Movable Core/Double Circular Seat Solenoid Stem



    Looking forward to your visit

    We have more than 10 years experience in manufacturing solenoid stem. Excellent quality control is one of our main principles.

    Aim to give each customers a satisfied result
