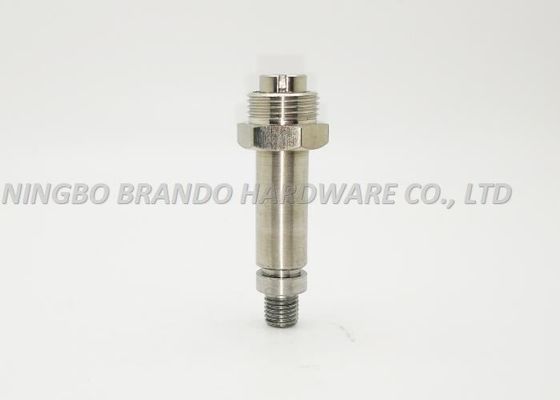

Pentagon Thread Seat Excellent Quality Control Guide Core/ Solenoid Stem Delivery in shipping

Pentagon Thread Seat Excellent Quality Control Guide Core/ Solenoid Stem Delivery in shipping

  • Pentagon Thread Seat Excellent Quality Control Guide Core/  Solenoid Stem Delivery in shipping
  • Pentagon Thread Seat Excellent Quality Control Guide Core/  Solenoid Stem Delivery in shipping
  • Pentagon Thread Seat Excellent Quality Control Guide Core/  Solenoid Stem Delivery in shipping
  • Pentagon Thread Seat Excellent Quality Control Guide Core/  Solenoid Stem Delivery in shipping
  • Pentagon Thread Seat Excellent Quality Control Guide Core/  Solenoid Stem Delivery in shipping
Pentagon Thread Seat Excellent Quality Control Guide Core/  Solenoid Stem Delivery in shipping
Product Details:
Place of Origin: Ningbo CHINA
Brand Name: BRANDO
Certification: CE
Model Number: BAPC214534456
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: Standard carton With pallet
Delivery Time: 7 work days
Payment Terms: Western Union, L/C, D/P, MoneyGram
Supply Ability: 4 thousand pcs per day
Contact Now
Detailed Product Description
Voltage: AC/DC Connection: Thread
Tube Height: 41.0mm Item Weight: 88g
Tube OD: 14.5mm Standard Or No: Standard
Color: Silvery White Seat Type: Pentagon Thread Seat
High Light:

brass valve stems

,

stainless steel valve stems

Pentagon Thread Seat Excellent Quality Control Guide Core/ Solenoid Stem Delivery in shipping



Instruction



This is Two way two position type of solenoid type

Mainly used for pneumatic solenoid valve

Work voltage:AC/DC



Special Movable core



1.With no seal design and non-cylindrical shape

2.Solid inside of movable core different from the hollow movable core

3.General design with two vertical grooves



Special Seat



1.Pentagon seat with thread connection.The connection has been welded by worker in laser soler technology with a colorful aperture

2.In the internal surface of the pentagon thread seat.There is Light thread



Special feauture of the armature



1.With a plane groove and upper male thread

2.Two way two position solenoid plunger tube which is solid and reliable

3.Inside of solenoid stem,there is a Reddish brown circle which is a welded sign

4.Beautiful and smooth appearence because of washing process after being manufactured



Solenoid Stem Parameter



Brand BRANDO
NO. BAPC214541058
Voltage AC/DC
Tube OD 14.5mm
Tube height 41.0mm
Item weight 88g
Movable core height 41mm
Depth 35.6mm
Armature height 65mm
Material Stainless steel
Standard or no Standard
Type Two way two way normally closed
Seal material With no Seal
Movable shape  Non cylinderical
Thread height 10.0mm



Application





Mainly used for pneumatic solenoid vavle



Application example



Dental equipment,Dust collector valve,Automatic vending machine,Pulse device,Pneumatic equipment,Auto drain industry,Air suspension,Refrigeration device,Hyraulic industry

Life water and industry water supply,Air condition device/Air suspension valve

Pipe switch,Evr solenoid valve,Forged brass solenoid valve,etc





If you have special requirements in application or specification,we can adjust the item to meet your request.And give the suitable items for you

To aviod unnecessary damage and destroy of machine and equipment,We will give the instruction and guide brochure.



Overviewing Pneumatic solenoid valve



Pentagon Thread Seat Excellent Quality Control Guide Core/  Solenoid Stem Delivery in shipping 0

For more products and more information all are in available in the web



Look forward to your visit,as the original chinese fatory.Quality and reputation are our principles.

Serve the customers wholeheartedly

Make OEM With your sample and drawing



Contact us freely With any questions and problems

Ask every question you have and give you the correct answers
