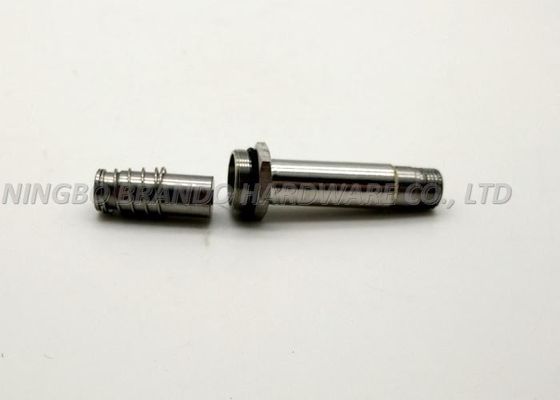

Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat

Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat

    • Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat
    • Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat
    • Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat
    • Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat
    • Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat
  • Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat

    Product Details:

    Place of Origin: Ningbo, CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: BAPC209030031

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: US D 0.5- 4 PER PC
    Packaging Details: Exported Carton, number depend on the size of item
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, MoneyGram, D/A
    Supply Ability: 5000 PER TWO DAYS
    Contact Now
    Detailed Product Description
    Color: Silvery White Seal: NBR
    Movable Core Height: 22.0mm Type: 2/2 NC
    Depth: 21.0mm Application: Venting Machines

    2 Way 2 Position Operator Solenoid Stem With Pentagon Seat Used For Venting Machines



    1.General information



    1.1,BAPC209030031 consist of Armature stem,plunger ,external/inner spring,O-Ring

    All the parts use stainless steel/430FR

    430FR:430 stainless steel is a kind of universal steel with good corrosion resistance. Better thermal conductivity and thermal fatigue resistance,smaller thermal expansion coefficient. The mechanical properties of weld seam are better when adding stabilized element titanium.

    1.2,Armature is fully manufactured by nuerical control technology,there is no welding mark in the connection with the pentagon seat.The surface is totally smooth,the surface color is bright without skin needing.

    1.3,This item is also male screw thread as the fixed nipple for the solenoid coil and

    1.4,The circular seat have the screw thread to connect

    1.5,This item has two grooves and common vents in the plunger.This construction improve the safety and the sealing  property.The vent play the exhausting system when the valve isn't powered.

    1.6,The  joint use of the inner spring and external spring which promote the spring force to hold the movable core when powered.

    1.7,The circular seat with O-Ring seal  and Seal Nipple in the both sides of the plunger.To increase the sealing ability,without liquid of the fluid leak.Both seal have high resistance to the netural ,alkaline and acid solvents as well as  most of the organic solvents such as oil,gas,etc.Also well resistance to the corrosion.



    2.Our factory accuracy machined process



    2.1,design the Operation process of item in the numerical control table

    2.2,make one or two items and test the conducty and stability and other ability

    2.3,if meet the standard,then manufacture largely.If not,redesign the drawing

    2.4,make samples again until test result is achieving the quality

    2.5,Washing the items though the gas,air,oil

    2.6,package and delivery

    2.7,Customer Feedback the shortcoming,we still redesign until custmer statisfy.



    3.Dimension and detail specification



    Brand BRANDO
    Tube OD 0.89mm
    Tube height 30.0mm
    Item Weight 25g
    Movable core 22.0mm
    Armature Depth 21.0mm
    voltage AC/DC
    SIZE normal
    seat pengaton
    Seal NBR



    Dimension is always could changed if you have the special requirement

    Component for the solenoid stem:

    Armature stem,plunger ,external/inner spring,O-Ring

    All the parts use stainless steel/430FR





    Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat

    According to the diagram



    AC/DC:General refers to the specifications of power supply is AC input and DC output , belonging to the classification of switching power supply in one.



    Detail  for image



    Vending Machines Solenoid Valve Stem 2 Way 2 Position Operator With Pentagon Seat



    We have more than 10 years experience in manufacturing solenoid stem. Excellent quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products of solenoid armature assembly are being exported all over the world. We provide OEM service, accept customer label, develop the product with your drawings or samples .If you have any question, contact us, we will be reply with prompt speed.
