3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type

China 3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type supplier
3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type supplier 3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type supplier 3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type supplier 3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type supplier

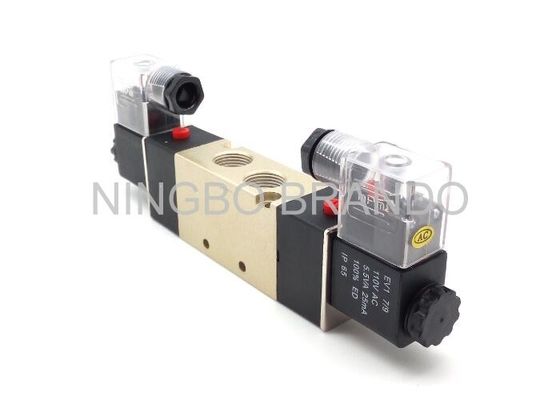

Large Image :  3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type

Product Details:

Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE ISO
Model Number: 4V320-10

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD0.30--15.0 PER PC
Packaging Details: Inner box, carton, then packed by pallet
Delivery Time: 8 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2500000PCS PER MONTH
Contact Now
Detailed Product Description
Part Name: 3/8" Port Size Pneumatic Cylinder Valve Position And Way No: Two-position Five-way
Power Consumption: AV 4.5VA DC 3W Insulation And Protection: F Class. IP65
Working Medium: 40 Micron Filtered Air

3/8" Port Size Double-head Double-position Close Type Pneumatic Cylinder Valve



The 3/8" Port Size Double-head Double-position Close Type Pneumatic Cylinder Valve with Two-position Three-way Position and Way No. The insulation and protection class is F.The shortest Excitation Times is 0.05 second. We will send you the product in 8 working days after your order.



Quick Informations:



1. Power Consumption: +/-10%

2. Power Consumption: AC 4.5VA DC 3W

3. Highest Action Frequency: 5 Cycle/Sec

4. Port Size: Air Inlet=Air Outlet=G1/4" Exhaust=G1/8"



Specification of 4V320-10 Pneumatic Cylinder Valve:



Position and Way No. Two-position Three-way
Shortest Excitation Time 0.05 Second
Max. Pressure Resistance 1.0MPa
Motion Pattern Inner Guide Type
Working Mdium 40 Micron Filtered Air
Insulation and Protection Class F Class. IP65
Wiring Form Lead Wire or Connector Type
Voltage Range 5-50°C
Working Pressure 0.15-0.8MPa




Advantages of the Valve:



1. Special technology for bore, low friction force, low start pressure.

2. It's a little bit dustproof

3. Quicky directional changing, fast speed.

4. The power is low, only 3W.

5. Excellent material, precise process, fine shape.

6. Wide application and can be used in many area



The Structure Diagram:

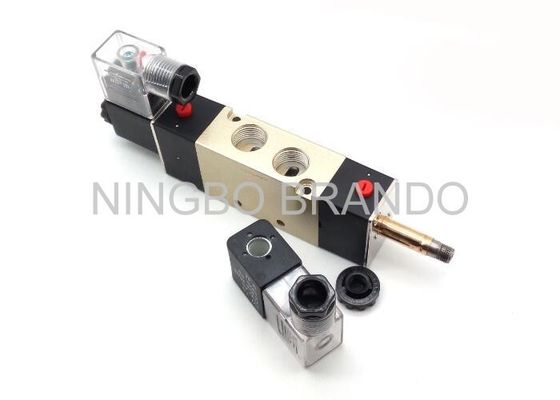

3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type





The questions you may want to know:

About samples:
We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea, by air, by express ect. Any question about samples, please contact us.



For OEM products
We will finish the production within 20 days after payment has been confirmed.



Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.



Integrity:

All the warrenty and guarantee from us will be put into come true.



About delivery and shipping
We will choose the delivery way as you required: by sea, by air, by express ect. Save your cost is our

mission.



Some pictures to show by different way:

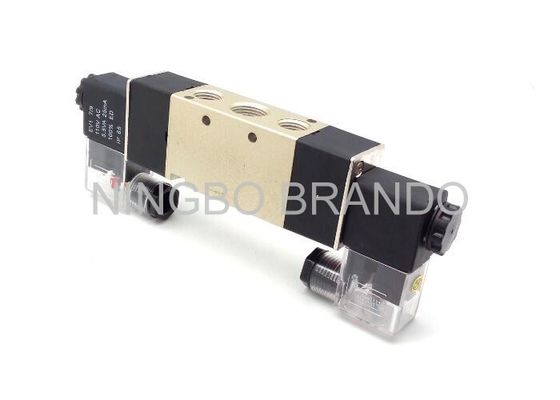

3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type

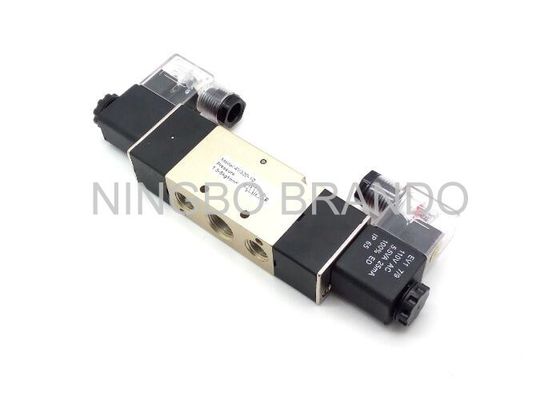

3/8" Port Size Pneumatic Cylinder Valve Double head Double position Close Type





We produce other kind valve and you can choose the different color coil you like





Welcome your any question, we will response at once. We also can produce as customized.

Welcome your drawing or sample.
