    Product Details:

    Place of Origin: Ningbo, China
    Brand Name: BRANDO
    Certification: CE ISO
    Model Number: MLSP503

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Inner box, carton, then packed by pallet
    Delivery Time: 8 Working Days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 400000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Part Name: MLSP503 Air Pressure Switch Pressure Range: -0.5~3 Bar
    Mix.gas Tight Test Pressure: 16.5 Bar Differential Pressure: 0.35~1.5 Bar
    Inductive Current: 72A Certification: CE, ISO9001:2000



    0.35~1.5 Differential Pressure Sibgle Ressure Control Air Pressure Switch



    About this kind switch, the scaleplate use bar and psig units, Mpa can be used as customer requirement.

    Connection could as customer require use British unit flare(E), solder(S) and capillary(C), such as MLSP506B. Ammonia refrigerant model added a code(B), such as MLSP506B.



    Introduction:
    1, P series pressure controls can be used in fluoride refrigeration, air and liquid.
    2P series pressure controls are fitted with 3 kinds of changeover switch: a single pole double throw (SPDT), a double pole single throw(DPST) and a double pole double throw(DPDT). The position of the switch is determined by the pressure control setting and the pressure at the connector.

    3, P series pressure control can protect compressors in refrigeration and air-condition plant, and keep them from over-low pressure or over-high suction pressure.



    Specification of Pressure Switch:



    Model Pressure Range(bar)

    Differential

    Pressure(bar)

    Factory Setting(bar) Max. gas tight test Pressure(bar)
    Fig.1 Fig.2
    MLSP502 -0.5~2 0.2~0.7 1 0.5 16.5
    MLSP503 -0.5~3 0.35~1.5 2 1 16.5
    MLSP506 -0.5~6 0.6~4 3 2 16.5
    MLSP506M -0.5~5.5 ≤1 Manual reset 3 16.5
    MLSP110 1~10 1~3 6 5 16.5
    MLSP516 5~16 2~5 10 8 33
    MLSP520 5~20 2~5 16 14 33
    MLSP530D 5~30 3~10 20 15 33
    MLSP530 8~30 3~5 20 15~17 33
    MLSP503M 8~30 ≤5 20 Manual reset 33




    Rated Voltage(v) 125V 250V 24V
    Rated Amps A.C. A.C. D.C.
    Non-Inductive Current 20A 10A 10A
    Inductive Current Full Load Current 15A 8A 8A
    Locked Roter 72A 64A




    The Structure Diagram:

    Single Ressure Control Air Compressor Pressure Switch 0.35~1.5 Differential Pressure

    The Connection of the Switch



    Single Ressure Control Air Compressor Pressure Switch 0.35~1.5 Differential Pressure

    The Drawing of the Switch

    Single Ressure Control Air Compressor Pressure Switch 0.35~1.5 Differential Pressure



    The Switch Contact Form



    FAQ:



    Q1: Is availabe to get sample, and how can I get some samples?

    A1: We are honored to offer samples to you when the prices are confirmed. Samples are free, however, the freight cost should be collected by customer. If sample quantity is more than our regular one, we will extra collect sample cost.



    Q2: What’s your delivery time?

    A2: Normally, we keep stocks, if to produce, normally around 2 weeks. If you are in urget to get, we will speed up to satisfy you as much as we can.



    Q3: How does your factory do regarding quality control?

    A3: We control strictly in every step: choosing best material for our products, such as BPV015 for our solenoid valve, and 100% test for water pressure and inspection for product appearance.



    Q4: Have you exported to other countries?

    A4: Yes, we have above 10 years experience of exporting to abroad, we have customer in America,

    Europe, India, Mid East and so on. We have experience to pack goods well to avoid any mistake on sea shipment.

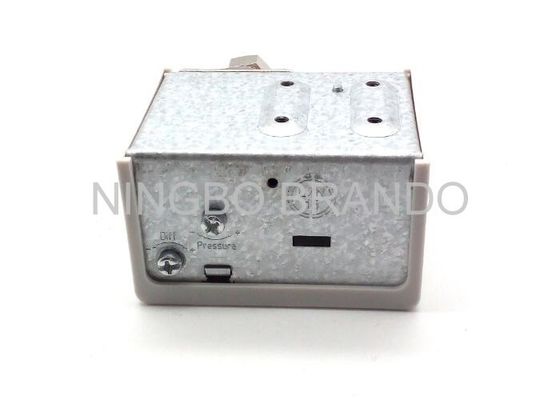

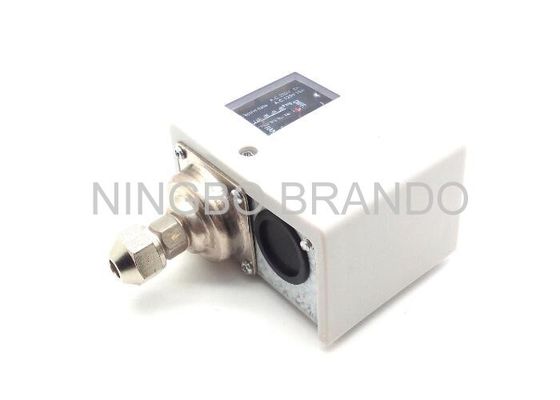

    The pictures:



    Single Ressure Control Air Compressor Pressure Switch 0.35~1.5 Differential Pressure





    Single Ressure Control Air Compressor Pressure Switch 0.35~1.5 Differential Pressure

    We also produce other kind switch



    The Production Workshop:

    Single Ressure Control Air Compressor Pressure Switch 0.35~1.5 Differential Pressure



    Welcome your any question, we will response at once. We also can produce as customized.

    Welcome your drawing or sample.
