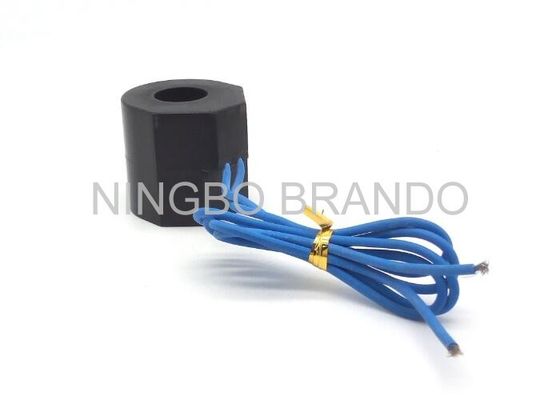

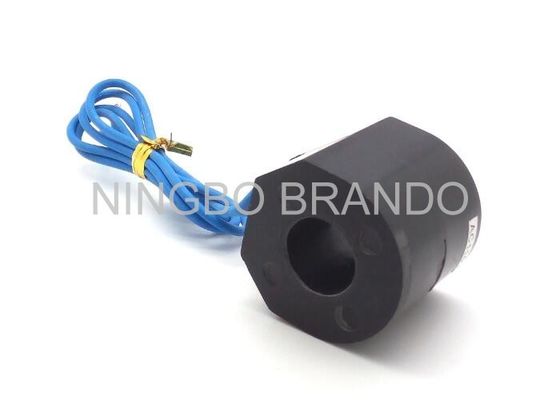

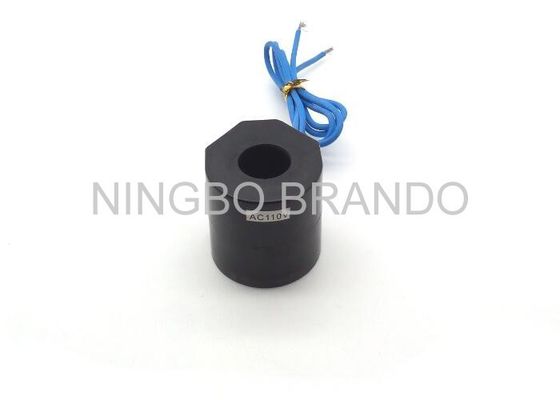

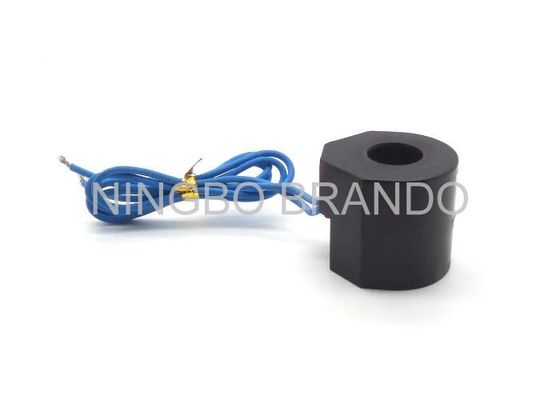

AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve

AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve

    • AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve
    • AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve
    • AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve
    • AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve
  • AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve

    Product Details:

    Place of Origin: China
    Brand Name: BRANDO
    Certification: CE, ISO
    Model Number: BB17540010

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Price: USD0.2 to 15.0 per pc
    Packaging Details: Inner box, carton, and pallet
    Delivery Time: 10 Working Days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 300000pcs per month
    Contact Now
    Detailed Product Description
    Part Name: Blue Flying Leads Coil Insulation: H
    Normal Power: DC 22W, AV 20VA Electrical Entry: Terminal ,Grommet
    Normal Voltage: AC220V, DC24V Connection Type: With Flying Leads

    AC220V DC24V Blue Flying Leads Pneumatic Coil For Solenoid Valve



    The red flying leads AC 20VA normal power pneumatic electric solenoid coil can be used in solenoid valve with 40.0mm solenoid coil high. The core material is thermoplastic and the yoke material is low carbon iron, then nickle plated or powder coated. It . The color can be customized as you want.



    Detailed specifications of pulse solenoid coil:

    1. Part No.  BB17540010
    2. Part Name:  Pneumatic solenoid coil for pulse jet valve
    3. Delivery Time:  One week after payment
    4. Voltage:  12V DC, 24V DC, 110V AC, 220V AC
    5. Color:  Black, Green, Blue, red, all other color can be customized
    6. Other Installation size:  Can be customized as per your drawing
    7. Quality Control:  All goods will be 100% inspected and tested before dispatching
    8. Solenoid coil inner hole diamter:  17.5mm
    9. Solenoid coil height:  40.0mm

    10. Application:  Solenoid valve



    Advantages of our pneumatic solenoid valve coil:

    1. The yoke for leading magnetic field we chosen as low carbon iron

    2. Encapsulation with high quality specially designed glass filled nylon

    3. For use in special ambients with high humidity, please do not hesitate to contact with us.

    4. We use heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material





    The Drawing of the Coil:



    AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve

    When the coil is energized, the electromagnet force is generated, so that the moving iron core overcomes the spring force and attracts the direct opening of the valve with the static core. The medium shows the passage; when the coil is de-energized, the electromagnetic force disappears, Core in the spring force under the action of reset, directly close the valve port, the media barrier. Simple structure, reliable, zero pressure and micro-vacuum under normal work.



    Solenoid Coil Could be Assembeld for Pneumatic Solenoid Valve with Features Bellow:



    1.Pilot-oriented mode: optional for internal or external;
    2.Structure in sliding column mode: good tightness and sensitive reaction;
    3.Three position solenoid valves have three kinds of central function for your choice;
    4.Double control solenoid valves have memory function;
    5.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
    6.No need to add oil for lubrication;
    7.It is available to form integrated valve group with the base to save installation space;
    8.Affiliated manual devices are equipped to facilitate installation and debugging;
    9. Several standard voltage grades are optional.





    Pictures about pneumatic valve solenoid coil:

    AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve





    AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve

    We also produce other kind coil






    The Good Quality Package:

    AC220v 24vdc Solenoid Valve Coil , Blue Flying Leads Pneumatic Coil For Solenoid Valve


    Welcome your any question, we will response at once. We also can produce as customized.

    Welcome your drawing or sample.
