Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly

Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly

  • Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly
  • Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly
  • Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly
  • Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly
Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly
Product Details:
Place of Origin: China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: DMF-Z-25
Payment & Shipping Terms:
Minimum Order Quantity: 5set
Price: negotiation
Packaging Details: Inner box, carton, pallet
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000pcs per 30days
Contact Now
Detailed Product Description
Part Name: DMF-ZM-25 Pulse Valve Coil Color: Green, Can Be Customized
Armature Assembly: SUS304 Diameter: φ25
Port Size: 1" Diaphragm Life: More Than 3 Years
High Light:

solenoid pulse valve

,

pulse solenoid valve

Green Coil DMF-ZM-25 Aluminum Pneumatic Pulse Jet Solenoid Valve



The green coil DMF-ZM-25 aluminum pneumatic pulse jet solenoid valve has high quality parts material to ensure valve cycle life over one million times. The diaphragm has high quality and can be sold separately. We have good service on products, package and so on.



Pulse Valve Construction:







Solenoid Coil High quality enamelled wire
Armature Assembly 430FR and SUS304
Bodies Aluminum
Diaphragm NBR
Springs SUS304




Features of Pulse Jet Valve:

1, fast opening/closing

2, high quality parts material to ensure valve cycle life

3, high cycle life

4, high flow cv(s) to 140 for effective bag cleaning

5, made of high quality enamelled wire solenoid coil, imported magnetic stainless steel 430FR armature assemblies, high grade dia casting ADC alumininum


Pulse Valve Technical Specifications:



1. Fluid Media: clean air

2. Working Pressure: 0.3--0.8Mpa

3. Voltage/Current/Temperature Range:

    DC24V/0.8A/-25~80℃ (-13~176 ℉)

    AC110V/0.46A/-25~150℃ (-13~302 ℉)

    AC220V/0.23A/-25~230℃ (-13~446 ℉)

4. Relative Air Humidity: ≤85%

5. Diameter: φ25

6. Standard Coil and Class of Insulation: IP65

7. Diaphragm Cycle Life: more than 1 million times or more than 3 years

8. Port Size: 1"



Overall dimensions:



Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly 0

Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly 1

We can also produce diaphragms separately

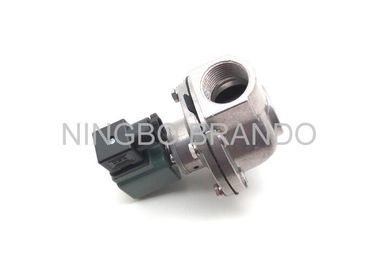

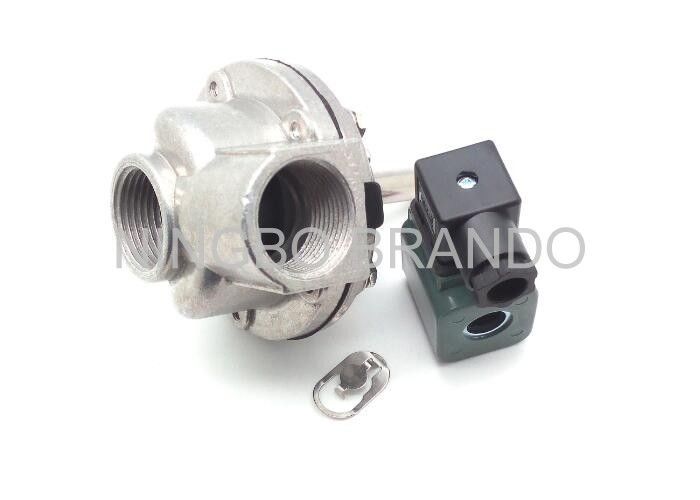

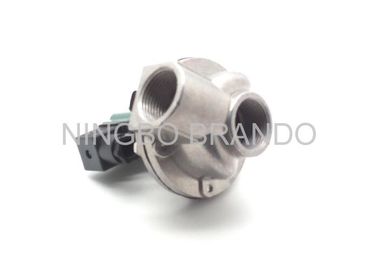

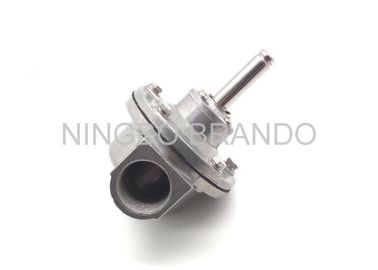

Some Detailed Photo about pulse valve:

Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly 2



Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly 3

Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly 4



FAQ:



Lifetime service:

Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.



For OEM products:

We will finish the production within 20 days after payment has been confirmed.



About delivery and shipping:

We will choose the delivery way as you required: by sea, by air, by express ect. Save your cost is our

mission.



Integrity:

All the warrenty and guarantee from us will be put into come true.



Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.



About samples:
We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea, by air, by express ect. Any question about samples, please contact us.



The High Quality Package of our company:



Green Coil DMF - ZM - 25 Pneumatic Pulse Valve SUS304 Armature Assembly 5



Welcome your any question, we will response at once. We also can produce as customized.

Welcome your drawing or sample.
