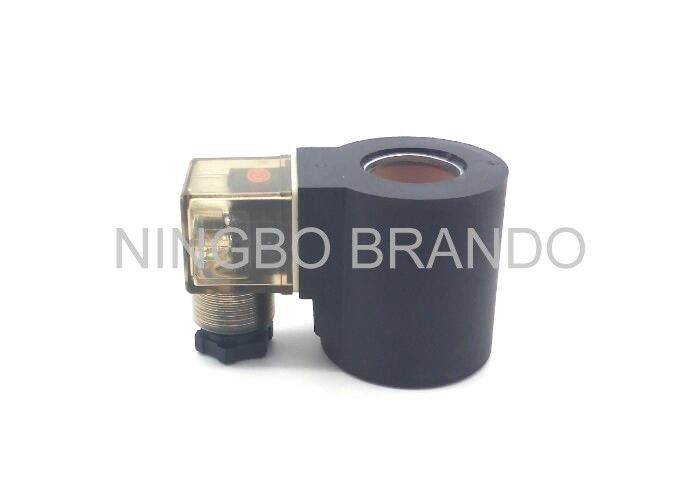

Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil

Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil

    • Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil
    • Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil
    • Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil
    • Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil
  • Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil

    Product Details:

    Place of Origin: China
    Brand Name: BRANDO
    Certification: CE, ISO
    Model Number: BB23051002

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: USD1.0 to 9.0 per pc
    Packaging Details: Inner box, carton, and pallet
    Delivery Time: 7 Working Days
    Payment Terms: L/C, T/T, MoneyGram, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Part Name: Pneumatic Coil For Solenoids Series Insulation Class: F / H
    Material: Enamelled Insulate Wire Normal Power: DC 28W, DC 38W

    Different Electrical Connectors Low Carbon Steel Metallic Skeleton Solenoid Coil



    Advantages of our pneumatic solenoid coil:



    1, Our coil is available in different sizes and with different electrical terminations, we have professional technicians to develop as your drawing or sample or your special demands.

    2, We use heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material

    3, The yoke for leading magnetic field we chosen as low carbon iron

    4, Encapsulation with high quality specially designed glass filled nylon

    5, For use in special ambients with high humidity, please do not hesitate to contact with us.



    The Overall Dimension:

    Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil



    Detailed specifications of solenoid valve coil:



    Part No. BB23051002
    Solenoid coil inner hole diamter 23.0mm
    Solenoid coil height 51.0mm
    Part Name Solenoid coil for DMF pulse jet valve
    Color Black, Green, Blue, red, all is available, other color can be customized
    Normal Voltage DC 12V DC 24V
    Normal Power DC 28W DC 38W
    Core Material Thermoplastic
    Yoke Material Low carbon iron, then nickle plated or powder coated
    Winding High quanlity, high temperature resistant enameled copper wire
    Insulation Class H / F
    Other Installation size Can be customized as per your drawing
    Quality Control All goods will be 100% inspected and tested before dispatching
    Delivery Time One week after payment
    Application Solenoid valve



    The Festures of Solenoid Coil:



    1. Using high quality wire (or UL Approved)

    2. High heat-resistant PBT skeleton

    3. Low carbon steel metallic skeleton

    4. Special nylon fiber glass encapsulation and filling way (PA66, PBT, PPS, BMC)

    5. All coils are rated to class F and IP65 (with connector and suitable seals)

    6. CE

    7. Provide leads, DIN, AMP, Deutsch methods such as electrical connectors.





    Photo of Pneumatic valve solenoid coil:

    Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil

    The parts of the coil



    Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil

    Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil

    The coil with plunger and without plunger


    Solenoid Coil Could be Assembeld for Pneumatic Solenoid Valve with Features Bellow:



    1.Pilot-oriented mode: optional for internal or external;
    2.Structure in sliding column mode: good tightness and sensitive reaction;
    3.Three position solenoid valves have three kinds of central function for your choice;
    4.Double control solenoid valves have memory function;
    5.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
    6.No need to add oil for lubrication;
    7.It is available to form integrated valve group with the base to save installation space;
    8.Affiliated manual devices are equipped to facilitate installation and debugging;
    9. Several standard voltage grades are optional.



    The Testing Equipment we used:

    Different Electrical Connectors Pneumatic Solenoid Coil Low Carbon Steel Metallic Skeleton Solenoid Coil


    Welcome your any question, we will response at once. We also can produce as customized.

    Welcome your drawing or sample.
