|Part Name:||4.5VA Power Consumption Pneumatic Cylinder Valve||Voltage Range:||5-50°C|
|Power Consumption:||AV 4.5VA DC 3W||Highest Action Frequency:||5 Cycle/Sec|

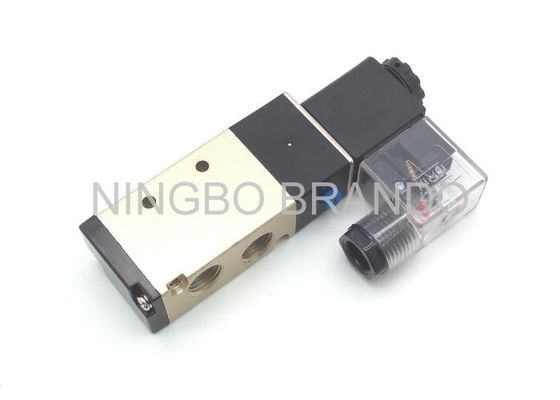

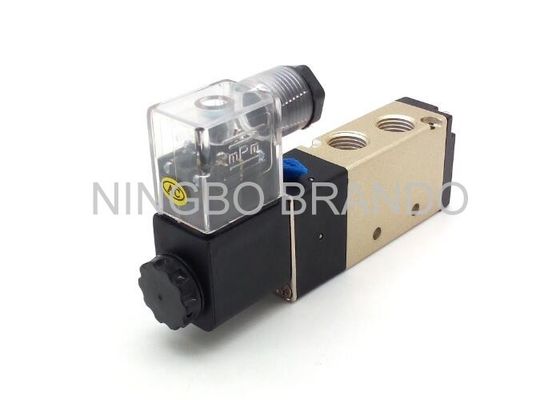

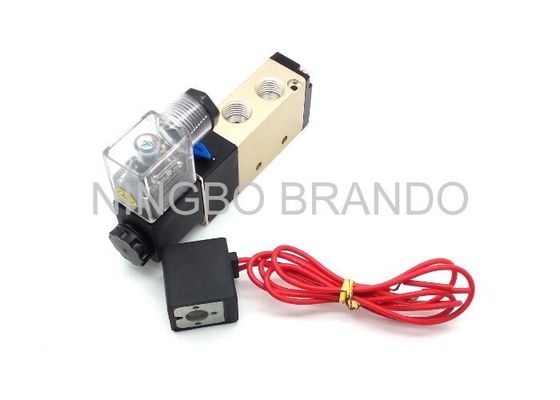

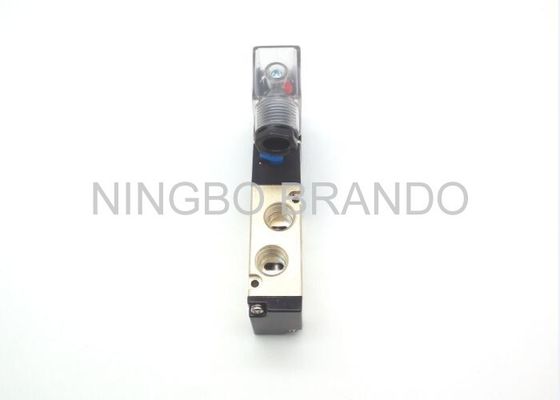

5 Cycle/Sec Highest Action Frequency Pneumatic Cylinder Valve
The 5 Cycle/Sec highest action frequency pneumatic cylinder valve with inner guide type motion pattern. The air inlet and air outlet is G1/4", the exhaust is G1/8". The working medium is 40 micron filtered air. What's more, our products are all good quality, please don't miss us.
Specification of 4V210-08 Pneumatic Cylinder Valve:
|Position and Way No.||Two-position Five-way|
|Port Size||Air Inlet=Air Outlet=G1/4" Exhaust=G1/8"|
|Working Mdium||40 Micron Filtered Air|
|Max. Pressure Resistance||1.0MPa|
|Motion Pattern||Inner Guide Type|
|Power Consumption||AC 4.5VA DC 3W|
|Insulation and Protection Class||F Class. IP65|
|Wiring Form||Lead Wire or Connector Type|
|Highest Action Frequency||5 Cycle/Sec|
|Shortest Excitation Time||0.05 Second
Functions and Advantages:
1. Wide application.
2. Special technology for bore, low friction force, low start pressure.
3. Quicky directional changing, fast speed.
4. Low power, only 3W.
5. Excellent material, precise process, fine shape.
6. A little bit dustproof
The Structure Diagram:
1. We offer professional order operation service: Same sales person follows the order from discussing step to the end of you get the goods of order
2. If any problem occur during production or you meet quality problem when you are using our goods, inform us at once, we will offer you best solution
3. Contact us via email, phone calling, skype, or other chatting methods, we will response at once
Q1: Is availabe to get sample, and how can I get some samples?
A1: We are honored to offer samples to you when the prices are confirmed. Samples are free, however, the freight cost should be collected by customer. If sample quantity is more than our regular one, we will extra collect sample cost.
Q2: What’s your delivery time?
A2: Normally, we keep stocks, if to produce, normally around 2 weeks. If you are in urget to get, we will speed up to satisfy you as much as we can.
Q3: How does your factory do regarding quality control?
A3: We control strictly in every step: choosing best material for our products, such as BPV015 for our solenoid valve, and 100% test for water pressure and inspection for product appearance.
Q4: Have you exported to other countries?
A4: Yes, we have above 10 years experience of exporting to abroad, we have customer in America,
Europe, India, Mid East and so on. We have experience to pack goods well to avoid any mistake on sea shipment.
Some pictures to show by different way:
The Payment Method:
Welcome your any question, we will response at once. We also can produce as customized.
Welcome your drawing or sample.
