    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE, ISO
    Model Number: CA50MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 PCS
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4 DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Part Name: Pulse Jet Valve Nominal Port Size: 2"
    Material: Alumininum, Diecast Number Of Diaphragm: 2 PCS
    Pulse Valve Type: Threaded Ports Working Voltage: 24V AC, 110V AC, 220V AC; 24V DC

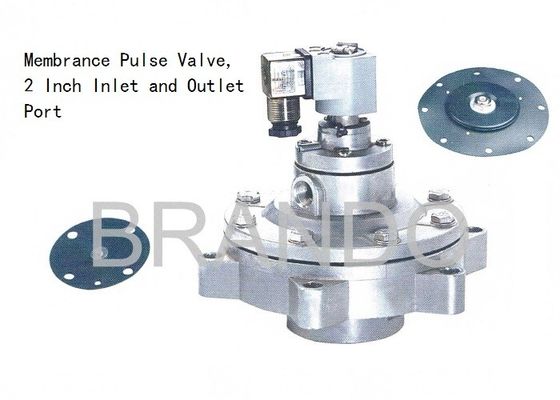

    2" MM Series Pneumatic Pulse Valve BGY50 Instead goyen controls solenoid valves CA50MM RCA50MM



    Very high performance diaphragm valve designed to be mounted directly into the compressed air manifold. 1" and 1.5" models are supplied with outlet pipes to length specified, 3" and 3.5" models are supplied without outlet pipes.



    Pulse Jet Valve Installation:

    1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

    2, Ensure tank and pipes are free from dirt, rust or other particulate.

    3, Ensure supply air is clean and dry.

    4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

    5, Apply moderate pressure to system and check for installation leaks.

    6, Fully pressurise system.

    7, Test fire and listen for proper actuation and crisp pulse noise.



    The double diaphragm pulse jet valve has options of kinds of voltage, such as AC110V, AC220V, AC24V, and DC24V, also available of explosion-proof type. Our BGZ76 pulse valve can be instead of goyen ca76t.

    Our long working life diaphragm pulse jet valve is suitable for:

    Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters and envelope filters.



    Part Name and Material
    1, Solenoid coil: Copper wire
    2, Armature aseembly: 430FR SS
    3, Small top cap: Alumininum, ADC
    4, Middle cap: Alumininum, ADC
    5, Small spring: 304 SS
    6, Diaphragm seat: PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
    7, Top cap: Alumininum, ADC
    8, Big spring: 304 SS
    9, Bolts and Screws: 302 or 304 SS
    10, Diaphragm seat: PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
    11, Valve body: Alumininum, ADC


    Features of G 2" Diaphragm Pulse Jet Valve:

    1, Class leading performance coupled with extremely rapid response
    2, Cleans more filter area per valve than before
    3, NO spring failures
    4, 1 MILLION CYCLES guaranteed
    5, Proprietary engineering thermoplastic elastomer blend for consistent performance throughout the temperature and pressure range
    6, Environmentally endurance tested at the extremes



    Pulse Jet Valve Maintenance:

    Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

    Diaphragm and pilot inspection should be conducted annually.

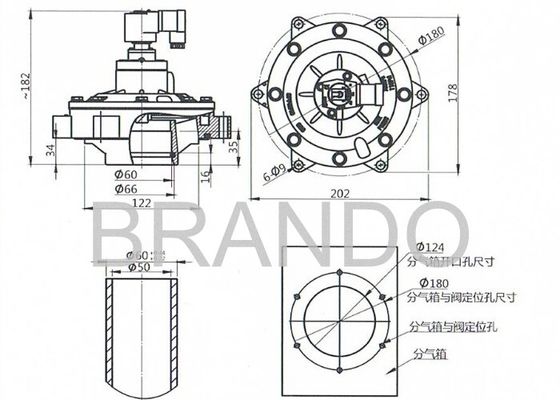

    Detailes of G2" Nominal Port Size Diaphragm Pulse Jet Valve and It's Overall Dimensions:

    2" MM Series Pneumatic Pulse Valve BGY50 Instead goyen controls solenoid valves CA50MM RCA50MM





    G2" Port Size Pulse Jet Valve Technical Parameters:

    Part No. BGY50
    Operating pressure 0.3~0.8MPa
    Ambient temperature -5~55℃
    Relative humidity <85%
    Fluid Clean air
    Voltage AC110V, AC220V, DC24V
    Electric current 0.46A, 0.23A, 0.8A +-10%
    Diaphragm life More than 1 milion cycles
    Orifice Diameter φ 50mm
    Nominal Port Size G 2"



    Pulse Valve Characteriestic And Performance

    Part No. Nominal Port Size (mm) Nominal Port Size (Inch) Number of Diaphragms Flow (Kv/Cv) Net Weight(kg) Outlet Pipe Size
    BGY25 25 1" 1 26.24/30.62 0.8 G1"
    BGY40 40 1 1/2" 2 39.41/45.99 1.2 G1 1/2"
    BGY50 50 2" 2 62.09/72.46 2.5 φ 50
    BGY62 62 2 1/2" 2 106.58/124.38 3.0 62
    BGY76 76 3" 2 165.84/193.54 3.7 76
    BGY89 76 3" 2   3.5 76
    BGY102 102 4" 2 268.29/313.09 5.65 102



    We Alse Sell Solenoid Coil and Armature Assembly and Diaphragm kits, Welcome Your Enquiry:

    2" MM Series Pneumatic Pulse Valve BGY50 Instead goyen controls solenoid valves CA50MM RCA50MM
