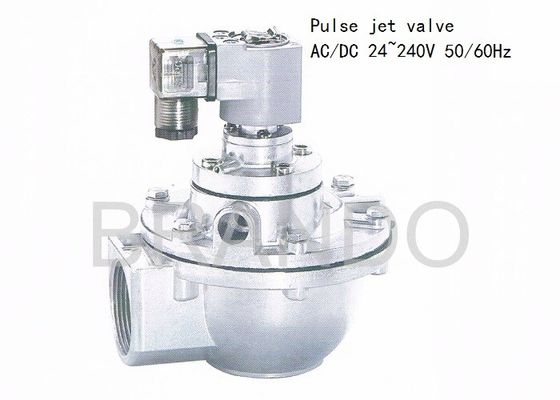

Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T

Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T

    • Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T
    • Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T
    • Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T
  • Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T

    Product Details:

    Place of Origin: China
    Brand Name: OEM
    Certification: CE, ISO
    Model Number: CA45T

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 PCS
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 5 Working Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Part Name: Diaphragm Valve Nominal Port Size: 1 1/2"
    Material: Alumininum, Diecast Number Of Diaphragm: 1 Pc
    Pulse Valve Type: Threaded Ports Working Voltage: 24V AC, 110V AC, 220V AC; 24V DC



    Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T



    AC220V, DC24V, AC24V voltage for option
    G, NPT, PT and other thread for option
    Diaphragm material is imported
    Coil and pilot quality is good.
    Charactor: Cheap price pulse valve that can instead of GOYEN pulse valve



    Our pulse jet valve is suitable for:

    Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters and envelope filters.



    Features of 1 1/2" Diaphragm Pulse Jet Valve:

    1, Class leading performance coupled with extremely rapid response
    2, Cleans more filter area per valve than before
    3, NO spring failures
    4, 1 MILLION CYCLES guaranteed
    5, Proprietary engineering thermoplastic elastomer blend for consistent performance throughout the temperature and pressure range
    6, Environmentally endurance tested at the extremes



    Air Clean System Diaphragm Pulse Jet Valve Construction:

    Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T

    Number Part Name Material
    1 Solenoid coil Copper wire
    2 Armature aseembly 430FR SS
    3 Small top cap Alumininum, ADC
    4 Middle cap Alumininum, ADC
    5 Small spring 304 SS
    6 Diaphragm seat PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
    7 Top cap Alumininum, ADC
    8 Big spring 304 SS
    9 Bolts and Screws 302 or 304 SS
    10 Diaphragm seat PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
    11 Valve body Alumininum, ADC



    Pulse Jet Valve Maintenance:

    Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

    Diaphragm and pilot inspection should be conducted annually.



    Detailes of G1 1/2" Nominal Port Size Diaphragm Pulse Jet Valve and It's Overall Dimensions:

    Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T







    Half Inch Port Size Pulse Jet Valve Technical Parameters:

    Part No. BGZ45
    Operating pressure 0.3~0.8MPa
    Ambient temperature -5~55℃
    Relative humidity <85%
    Fluid Clean air
    Voltage AC110V, AC220V, DC24V
    Electric current 0.46A, 0.23A, 0.8A +-10%
    Diaphragm life More than 1 milion cycles
    Orifice Diameter φ 40mm
    Nominal Port Size G1 1/2"



    Pulse Valve Characteriestic And Performance

    Part No. Nominal Port Size (mm) Nominal Port Size (Inch) Number of Diaphragms Flow (Kv) Flow (Cv)
    BGZ15 15 1/2" 1 2.5 2.9
    BGZ20 20 3/4" 1 12 14
    BGZ25 25 1" 1 20 23
    BGZ35 35 1 1/4" 1 36 42
    BGZ45 40 1 1/2" 2 44 51
    BGZ50 50 2" 2 91 106
    BGZ62 62 2 1/2" 2 117 136
    BGZ76 76 3" 2 144 167



    Pulse Jet Valve Installation:

    1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

    2, Ensure tank and pipes are free from dirt, rust or other particulate.

    3, Ensure supply air is clean and dry.

    4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

    5, Apply moderate pressure to system and check for installation leaks.

    6, Fully pressurise system.

    7, Test fire and listen for proper actuation and crisp pulse noise.



    We Alse Sell Solenoid Coil and Armature Assembly, Welcome Your Enquiry:

    Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T



    Normally Close Threaded Ports Pneumatic Pulse Valve Similar As CA45T RCA45T



    Welcome your any question, we will response at once.

    Pls contact us:  brandon.bao@brandopneumatic.com
