|Place of Origin:||China|
|Minimum Order Quantity:||Any pcs|
|Price:||NEGOTIABLE, USD0.50 TO USD20.00 PER PC|
|Packaging Details:||Inner Box, Carton, Pallet|
|Delivery Time:||8 to 15 Working Days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||2000PCS PER WEEK|
|Part Name:||Pulse Jet Valve||Nominal Port Size:||1"|
|Material:||Alumininum, Diecast||Number Of Diaphragm:||1 Pc|
|Pulse Valve Type:||Threaded Ports||Working Voltage:||24V AC, 110V AC, 220V AC; 24V DC|

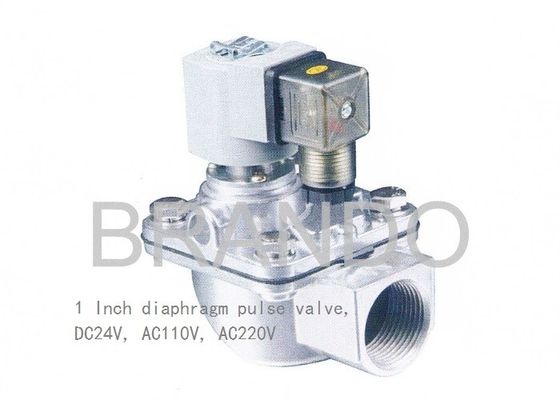

1 Inch 24V DC 110V AC 220V AC CA25T Type Pneumatic Pulse Valve Diaphragm Valve for Dust Bag Filter
One Inch Port Size Pulse Jet Valve Technical Parameters:
|Voltage||AC110V, AC220V, DC24V|
|Electric current||0.46A, 0.23A, 0.8A +-10%|
|Diaphragm life||More than 1 milion cycles|
|Orifice Diameter||φ 25mm|
|Nominal Port Size||G1"
CA electro-magnetic pulse valve is a right-angle valve, with the 90 angle between the inlet and outlet, which is suitable for the installation connection between the gas dome and the bag house blow tube to provide good air flow and dust clean pulses satisfying the requirement.
Valve body and cover are pressure die cast aluminum alloy . Normally, diaphragms are made from Buna N elastomer, and are suitable for temperatures ranging from -40 degrees F to 180 degrees F. Viton material diaphragms are option for high temperature applications.
Features of Our High Performance Diaphragm Pulse Jet Valve Which is Similar as CA/RCA25T Type:
1, Class leading performance coupled with extremely rapid response
2, Cleans more filter area per valve than before
3, NO spring failures
4, 1 MILLION CYCLES guaranteed
5, Proprietary engineering thermoplastic elastomer blend for consistent performance throughout the temperature and pressure range
6, Environmentally endurance tested at the extremes
Air Clean System Diaphragm Pulse Jet Valve Construction:
|1||Solenoid coil||Copper wire|
|2||Armature aseembly||430FR SS|
|3||Small top cap||Alumininum, ADC|
|4||Middle cap||Alumininum, ADC|
|5||Small spring||304 SS|
|6||Diaphragm seat||PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE|
|7||Top cap||Alumininum, ADC|
|8||Big spring||304 SS|
|9||Bolts and Screws||302 or 304 SS|
|10||Diaphragm seat||PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE|
|11||Valve body||Alumininum, ADC|
Pulse Jet Valve Maintenance:
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
Diaphragm and pilot inspection should be conducted annually.

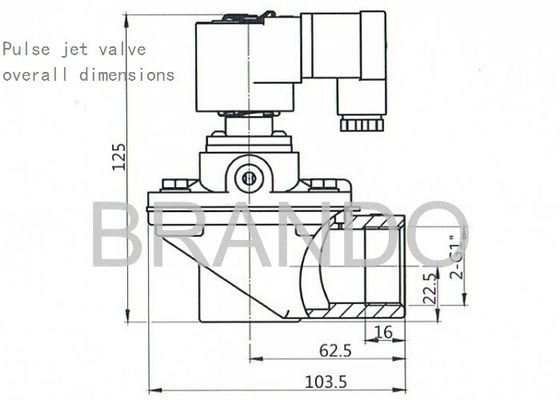

Detailes of G1" Nominal Port Size Diaphragm Pulse Jet Valve and It's Overall Dimensions pls refer to above display window.
Pulse Valve Characteriestic And Performance
|Part No.||Nominal Port Size (mm)||Nominal Port Size (Inch)||Number of Diaphragms||Flow (Kv)||Flow (Cv)|
Pulse Jet Valve Installation:
1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2, Ensure tank and pipes are free from dirt, rust or other particulate.
3, Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5, Apply moderate pressure to system and check for installation leaks.
6, Fully pressurise system.
7, Test fire and listen for proper actuation and crisp pulse noise.

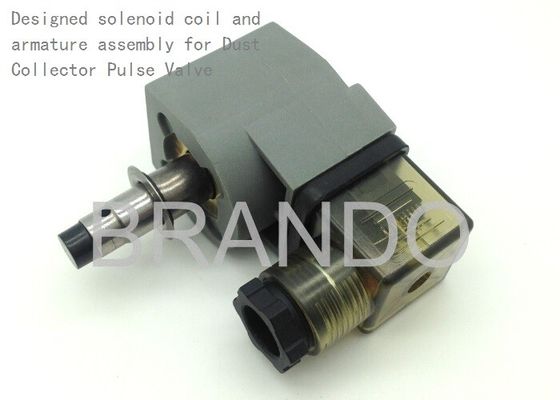

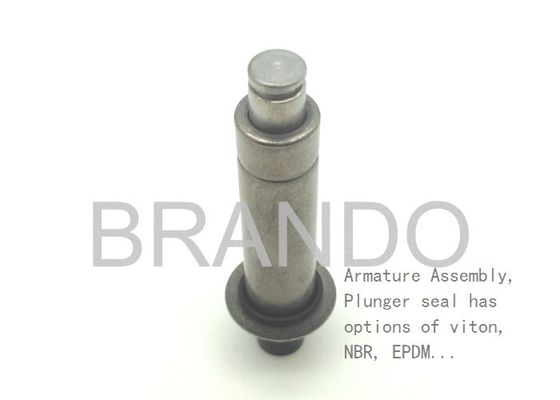

We Alse Sell Solenoid Coil and Armature Assembly, Welcome Your Enquiry:
Welcome your any question, we will response at once.
Pls contact us: email@example.com
Contact Person: Brandon
