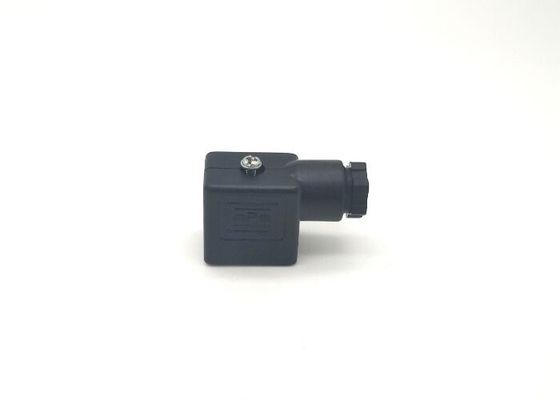

Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve

Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve

    • Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve
    • Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve
    • Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve
    • Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve
    • Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve
  • Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve

    Product Details:

    Place of Origin: Ningbo, China
    Brand Name: BRANDO or OEM
    Certification: CE ISO
    Model Number: DIN 43650B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Bubble bag, inner box, carton, pallet
    Delivery Time: 7 working days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000cs per month
    Contact Now
    Detailed Product Description
    Part Name: Solenoid Coil Connector Material: Plastic
    Color: Black Type: Series B
    Indicating Light: Yes Nomical Current: 10A

    Working voltage AC250V DC300V Reliable Solenoid Coil Connector Used For Assembling Solenoid Valve



    1.Product Feature and characteristics



    Newly design  for Assembing with the Solenoid coil.Solenoid valve is comprised with soleniod coil,solenoid coil connector,plunger tube assembly,bonnet,etc. Solenoid operator valve can be pneumatic solenoid valve,pulse valve Dust collector valve,etc.



    Smaller size than the series A Din 43650A in simlilar shape design.As the solenoid coil connector,this item

    is plug lead type which Connect the plug with wire.There is a screw in the main body of solenoid coil connector.It uses for fittinng the solenoid coill.With the screw,the solenoid valve will be reliable and solid,standing even in the high/low pressure,high/ultralow temperture condition.

     The stainless diaragm promote the conductivity and increase the conversion rate effectively.

    This black solenoid coil uses black plastic shell and the inner structer is hidden to avoid the dangerous  electric wire danger.This black plastic material has well Electrical insulation and decrease the hear when the solenoid valve is powered.So this plastic shell ensure the maximum safety of items and protect the people.

    In the interior construction,a LED play the role as a prompt when energized,so we can ensure that the item

    is working by watching the LED.It's helpful to remind us of closeing the items when work finishes



    2.Specifications and dimension :

    Distance: 11mm Mean that this solenoid coil connector could assemble with 11mm distance solenoid coil
    Connection Cord:  Φ10/ or less
    Approval: TUV,UL, VDE, ETL, CQC
    Voltage: AC250V DC300V
    Form: 2+1GND
    Protection class: IP165
    Nomical current:10A
    Ambient temperature: normal degree
    Contact Reslstance:<=5m
    Pressure: Normal pressure
    Max conductor section:3*1.5mm2

    Fixing screw:M3*30


    Applications of solenoid coil conncetor



    Component of the solenoid valve such as pneumatic solenoid valve
    1.  pneumatic solenoid valve
    2. Air suspension valve
    3. Dust collector valve
    4. Medical Equipment valve
    5.  Cleaners Device valve
    6. Dental Equipment
    7. Water Gasifying Equipment
    8. lroning Presses
    9. Vending Mahines
    10. Steam Generators
    11. Air Conditioners
    12. Steam Gleaning Systems
    13.  Cooling Systems
    14. snowflake machine
    15. Steam Mop



    Detailed Insturction For the deeper analysis:



    Part Number

    Height

    mm

    Length(mm) Max Pressure (Bar) Width INTERIOR width Power (W) △T (℃) Working Type Certificate
    SB204 30.5mm 41 Normal 20.5mm 11mm AC250V DC300V Normal plug lead type VDE&ETL+CETL+CQC





    Overall Dimension/image/picture

    Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve



    Application example of solenod valve coil affter Assembling with each part(being a solenoid valve:

    Plastic Micro Solenoid Coil Connector Series B For Assembling Solenoid Valve
