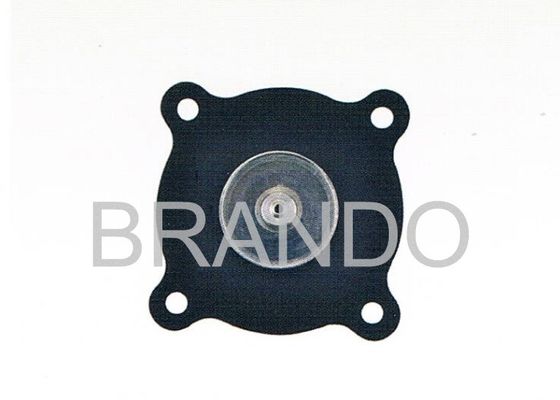

2W200-20 SS304 Orifice Mounted Nitrile Diaphragm NBR Diaphragm CE ISO Certification

2W200-20 SS304 Orifice Mounted Nitrile Diaphragm NBR Diaphragm CE ISO Certification

2W200-20 water solenoid valve application diaphragm specification:

Our diaphragm assembled with high quality 304 stainless steel orifice, and mounted very strongly, it ensures the valve with long working life:

2W200-20 Diaphragm overall dimensions:

More description of diaphragms:

1, Diaphragm (rubber or fabric reinforcement in rubber diaphragms) is a precision functional part used for checking pressure or changing fluid pressure into driving power

2, Diaphragm has been widely used in automobiles, controllers, household gas facilities and appliances with form of pressure sensors, actuators, On-Off switchs

3, Fabric-reinforcements in rubber diaphragms utilize a layer of an engineered fabric material as parts of the diaphragm construction. This layer of fabric give tremendous design felxibity

4, A very thin-walled diaphragm can withstand high pressures while remaining very flexible and responsive to minior pressure variations

5, Fabrics made of polyester, nylon and silk ard commonly used for most applications, fabric used for those applications exposed to high temperature. For those applications that require extremely high strength

6, All types of elastomers, such as nitrile, EPDM, fluorocarbon, neoprene, silicone, fluorosilicone, can be used in the fabric-reinforced diaphragms.

7, Fabric-reinforced diaphragms offer advantanges of no leakage, no lubrication, no breakaway force, no friction, high strength, functionality over wide pressure ranges, low cost, simple design, versatility

Diaphragm installed on 2w200-20 water solenoid valve:

More Informations of Diaphragm:

We also have many other types of diaphragm for valve, welcome your any question.

And we also can produce as per your drawing or sample, welcome contact us any time.
