19V 23V AC Coil Control Turbo Pulse Valve Electromagnetic Valve 50HZ - 60HZ SQP75

China 19V 23V AC Coil Control Turbo Pulse Valve Electromagnetic Valve 50HZ - 60HZ SQP75 supplier

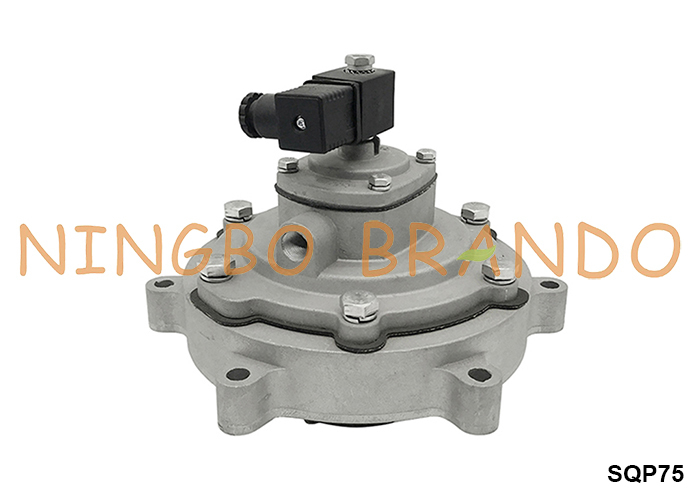

Large Image :  19V 23V AC Coil Control Turbo Pulse Valve Electromagnetic Valve 50HZ - 60HZ SQP75

Product Details:

Place of Origin: China
Brand Name: TURBO or OEM
Certification: CE, ISO
Model Number: SQP75

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD5.0 to 20.0 PER PC
Packaging Details: PVC bag, inner box, canton, then packed by pallet
Delivery Time: One weeek after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Part Name: Turbo 3 Inch Pulse Valve Port Size: 3 Inch
Material: Aluminum, SS304, Enamelled Wire Voltage: DC, AC All Available
Working Pressure: 0.3--0.8Mpa Working Life: More Than 1 Million Times



19V 23V AC Coil Control Turbo Pulse Valve Electromagnetic Valve 50HZ - 60HZ SQP75





The electromagnetic valve, pulse jet valve, for dust collector, has two gas route inside, and controlled by solenoid pilot and coil to open and close. Because of excellent design, the diaphramgs valve has good characteristic of air flow, the pressure can be ensure no reduced. Turbo pulse valve can open by fast speed, about 0.023-0.027seconds, and can close fastly to blow big pressure to remove dust.



The turbo valve is assembled with top end cap and bottom end cap, all is made from aluminum die-casting, and is fastened by SS304 screws.

The pulse valve can be divided into two types, bellow 1 1/2" is single diaphragm valve, and above 1 1/2" is double diaphragm valve. And the diaphragm is made of high quality fabric injected nitrile material, ensure high and long working life.



The turbo pulse valve is assembled with solenoid coil, wich is made of IP65 protection class material. And the coil can be turned by 360 degree, it is easy for user to install.



Advantages:



All turbo pulse valves are available in pneumatic and electric version and in this last case turbo valves has an unique pilot model for the entire range.



Complete range of high efficiency diaphragms pulse jet valve of 3/4", 1", 1 1/2", 2", 2 1/2", 3"

The pulse valve has been developed in order to optimize cleaning systems with quick opening and closing

times that allow to obtain high peak of pressure inside filter elements with a moderate air consumption, ensuring effectiveness and efficiency.



Port Size: 3"

Type: insert type





Model Specification:

Working pressure 0.5 to 7.5bar
Working medium clean, dry compressed air
Working condition

-40 to 100℃, use normal diaphragm

-30 to 200℃  use high temperature diaphragm

Working voltage

AC, 24, 110, 23v/50-60hz, 19VA

DC, 24v 15w

Insulation calss F
Solenoid coil standard IEC335
Voltage tolerance + - 10%
Installation of solenoid coil 360degree
Protection class IP65
Type Pneumatic or electric control
Open starting speed 0.023-0.027seconds
Working life More than 1 million cycles
Qty of diaphragm 3/4" to 1" is single diaphragm valve, 1 1/2" to 4" is double diaphragm valve
Note Can install muffler to remove noise, the connecting thread is G3/8"




Turbo Pulse Valve technical specifications:

Working Pressure Working medium Voltage Temperature range Air relative humidity Protection class Diaphragm working life
0.3-0.8MPa clean air 220V AC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

≤80% IP65 More than 1 million times or more than 2 years
0.3-0.8MPa clean air 110V AC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

≤80% IP65 More than 1 million times or more than 2 years
0.3-0.8MPa clean air 24V AC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

≤80% IP65 More than 1 million times or more than 2 years
0.3-0.8MPa clean air 24V DC

NBR, Nitrile, -40-82℃

Viton, -29-232℃

≤80% IP65 More than 1 million times or more than 2 years


Overall Dimensions of turbo SQP75 pulse jet valve

19V 23V AC Coil Control Turbo Pulse Valve Electromagnetic Valve 50HZ - 60HZ SQP75



Pulse Valve Internal Structure and Main Parts:

Part Name Material
Solenoid coil high quanlity enamelled wire
Armature assembly SS304, 430FR
Small common cap ADC aluminum
Diaphragm  NBR (nitrile, buna-n)
Top end cap ADC aluminum
Big spring SS304
Screws SS302
Seal NBR, Viton, all can be customized
Main body ADC aluminum



Advantages of turbo pulse valve:

1, Complete range of high efficiency diaphragms pulse jet valve of 3/4", 1", 1 1/2", 2", 2 1/2", 3"

2, suitable for all types dust collector







Welcome your enquiry, we also can OEM pulse valve as per your special demands. You can call us, or email us, we will response at once.
