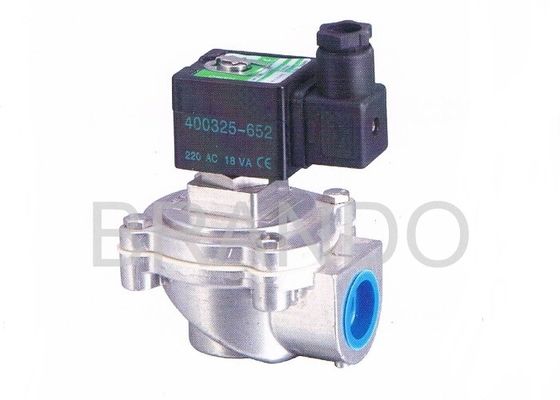

Aluminum SS30 3 / 4 Inch Port Pulse Jet Solenoid Valve Z Type SCG353A043

Aluminum SS30 3 / 4 Inch Port Pulse Jet Solenoid Valve Z Type SCG353A043

    • Aluminum SS30 3 / 4 Inch Port Pulse Jet Solenoid Valve Z Type SCG353A043
    • Aluminum SS30 3 / 4 Inch Port Pulse Jet Solenoid Valve Z Type SCG353A043
  • Aluminum SS30 3 / 4 Inch Port Pulse Jet Solenoid Valve Z Type SCG353A043

    Product Details:

    Place of Origin: China
    Brand Name: ASCO or OEM
    Certification: CE, ISO
    Model Number: SCG353A043

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD5.0 to 20.0 PER PC
    Packaging Details: PVC bag, inner box, canton, then packed by pallet
    Delivery Time: One weeek after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Part Name: Pneumatic Pulse Valve Port Size: 3/4 Inch
    Material: Aluminum, SS304, Enamelled Wire Voltage: DC, AC All Available
    Working Pressure: 0.4--0.6Mpa Working Life: More Than 1 Million Times

    Aluminum SS30 3 / 4 Inch Port Pulse Jet Solenoid Valve Z Type SCG353A043





    Quick details:

    Part No. SCG353A043

    Port Size: 3/4"

    Type: Z type

    Nominal Diameter: 25mm



    Model Specification:

    Model Port Size Orifice Flow Value   Working Pressure Difference
    SCG353A043 3/4" 25 14m³/h 233l/min min0.3 max8.5
    SCG353A044 1" 25 23m³/h 283l/min min0.3 max8.5
    SCG353A047 1 1/2" 52 46m³/h 768l/min min0.3 max8.5
    SCG353A050 2" 66 77m³/h 1290l/min min0.35 max8.5
    SCG353A051 2 1/2" 66 92m³/h 1540l/min min0.35 max8.5
    SCG353.060 3" 72 170m³/h 2833l/min min1 max6



    Asco Pulse Valve Working Condition:

    Model SCG353A043 SCG353A044 SCG353A047 SCG353A050 SCG353A051
    Working pressure 0.3--0.8Mpa
    Ambient temperature -5--55℃
    Relative humidity <85%
    Medium dry clean compressed air
    Voltage 110V AC/ 220V AC/ 24V DC
    Diaphragm woking life more than 1 million times
    Nominal diameter φ20 φ25 φ40 φ50 φ62
    Port thread G3/4" G1" G1 1/2" G2" G 2 1/2"



    Overall Dimensions of ASCO Pulse valve SCG353A043

    Aluminum SS30 3 / 4 Inch Port Pulse Jet Solenoid Valve Z Type SCG353A043



    Pulse Valve Internal Structure and Main Parts:

    Part Name Material
    Solenoid coil high quanlity enamelled wire
    Armature assembly SS304, 430FR
    Small common cap ADC aluminum
    Diaphragm  NBR (nitrile, buna-n)
    Top end cap ADC aluminum
    Big spring SS304
    Screws SS302
    Seal NBR, Viton, all can be customized
    Main body ADC aluminum



    Advantages of ASCO pulse valve:

    1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system

    2, the diaphragms with high quality and proffessional design for pulse valve working life





    Welcome your enquiry, we also can OEM pulse valve as per your special demands. You can call us, or email us, we will response at once.
