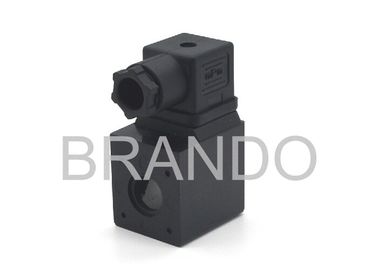

Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant

Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant

    • Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant
    • Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant
    • Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant
    • Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant
  • Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant

    Product Details:

    Place of Origin: Ningbo, China
    Brand Name: BRANDO
    Certification: CE, ISO
    Model Number: BB14542505

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: USD0.10 to 10.00 per pc
    Packaging Details: Inner box, carton, and pallet
    Delivery Time: 2 weeks after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Part Name: Air Compressor Auto Drain Solenoid Valve Coil Aperture: 14.50mm
    Coil Type: 0545 Voltage: 12V 24V 36V 48V DC, 24V 110V 220V AC
    Power: 12W DC, 15VA AC Electrical Termination: DIN43650A Or Flying Leads Wire



    Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant




    The electron drain valve coil widely be applied solenoid valve in compressed pneumatic system parts like filter, separator, dryer machine, gas tank, water drop foot and so on. Discharge time and interval time can be carried on adjustment according to different requirements.




    Detailed parameter and specifications of air compressor auto drain solenoid valve coil:

    Part No. BB14542505
    Part Type 0545
    Aperture 14.50mm
    Coil Height 42.50mm
    Voltage

    12V DC, 24V DC, 36V DC, 48V DC; 24V AC, 110V AC, 220V AC

    Other voltage can be customized

    Power

    15VA AC; 12W DC

    other power can be customized

    Color Black
    Electrical Termination DIN43650A
    Insulation Class H
    Application Example air compressor electron timer auto drain solenoid valve



    0545 electron timer auto drain solenoid valve pneumatic solenoid coil overall dimensions:

    Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant



    Advantages of our pneumatic solenoid valve coil:

    1, Our coil is available in different sizes and with different electrical terminations, we have professional technicians to develop as your drawing or sample or your special demands.

    2, We use heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material

    3, The enameled copper wire has features of class H 200℃ according to IEC 317-8

    4, The yoke for leading magnetic field we chosen as low carbon iron

    5, Encapsulation with high quality specially designed glass filled nylon

    6, The use of other materials is possible upon special agreements. All coils are rated to class F and to IP65.

    7, The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions.

    8, For use in special ambients with high humidity, please do not hesitate to contact with us.



    How we control solenoid coil quality during production:

    1, Inspect raw material of enameled copper wire and thermoplastic or thermosetting plastic by mesure and testing

    2, Set up parameters on coil winding machines, then manual inspect one by one after winding

    3, After welded electrial terminations then tested by testing machines one by one to ensure all coils is workable

    4, After moulded with thermoplastic or thermosetting plastic will be tested 100% again, and also will select 10% by random and assembled with solenoid valve then let it work for testing life.

    5, After selected out some failed pneumatic solenoid coil, we will put them with stickers and marked failed reason on paper then destroy to avoid mixed into bulk order goods.



    We are welding the wire with enameled copper wire of solenoid valve coil:

    Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant



    We also produce Pneumatic Solenoid Valve Armature Assembly to match electrom timer auto drain solenoid valve coil for air compressor application, for example as bellow:

    Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant



    Solenoid valve with Timer Two-way eletric solenoid valve with timer Auto Drain solenoid valve

    Air Compressor Electronic Timer Solenoid Coil Industrial BB14542505 Heat Resistant





    We higly welcome your contact with any question or your detailed requirements on solenoid coil and solenoid armature assembly, we will response with our professional support at once.

    We can produce as per your drawing or sample.
